Green Pin

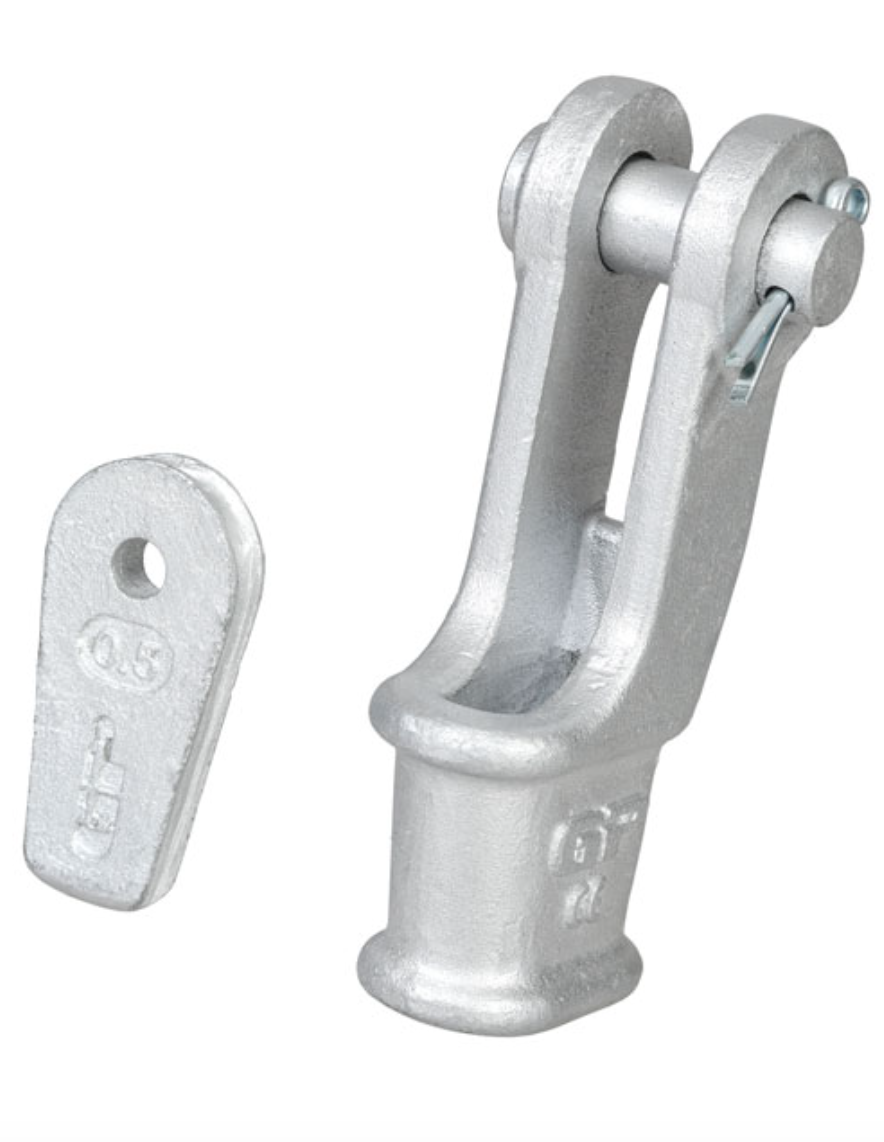

Green Pin Open Wedge Socket

Green Pin Open Wedge Socket

SKU: 286-814-1

Read More
Regular price £73.28
Regular price RRP Sale price TODAY'S PRICE £73.28

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Green Pin Open Wedge Socket

  • High tensile steel.
  • Hot dipped galvanised finish.
  • Temperature range -20ºC up to +200°C.
  • Marked with CE, manufacturers ID, size, product ID mark and traceability code.
  • Full CAD support available upon request.
  • Certification available
  • G-6413

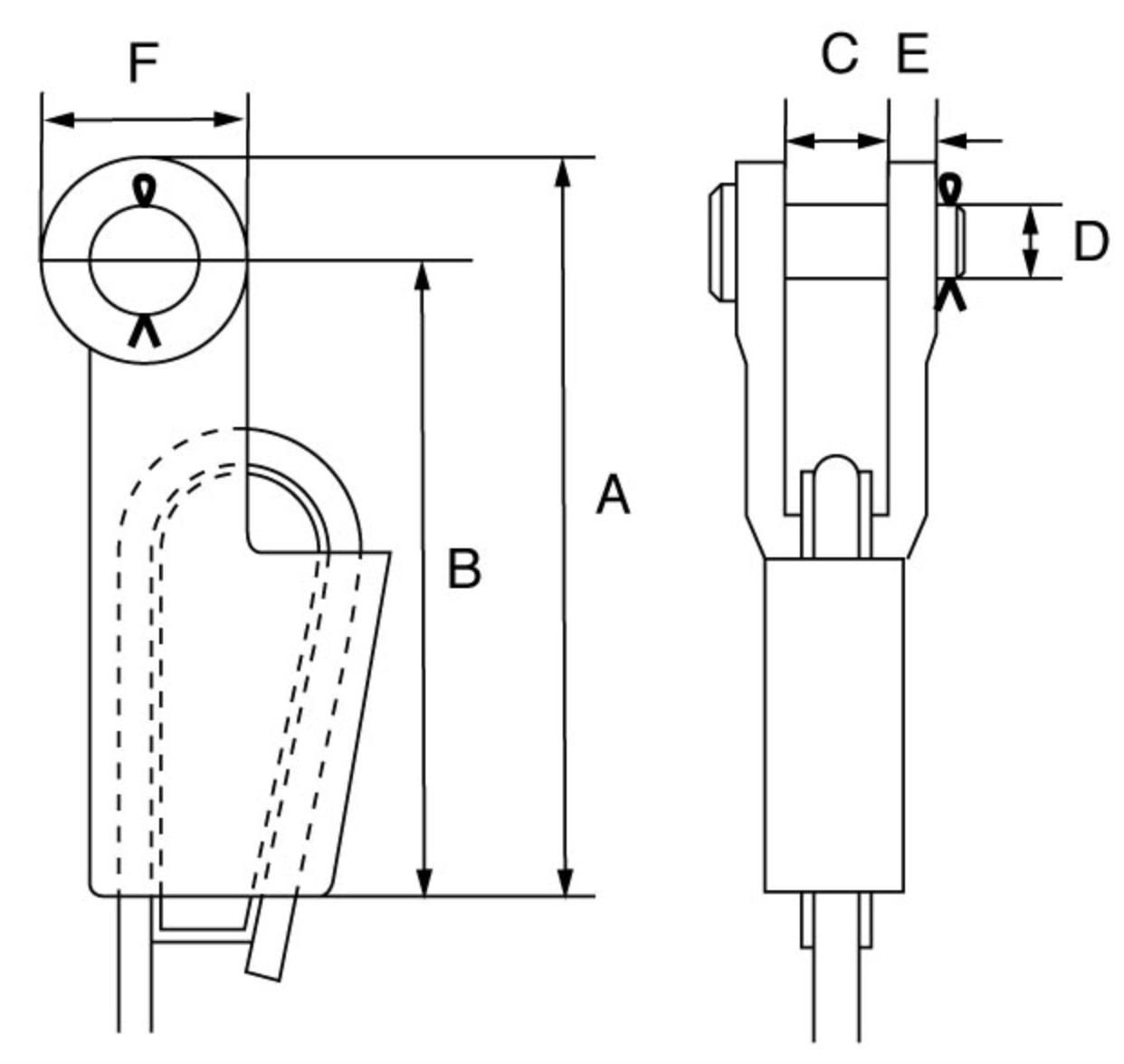

    Spec

    SKU Number M.B.L. Wire Rope Dia A B C D E F F Weight
    t mm mm mm mm mm mm mm mm kgs
    286-814-1
    0.25 8 7-8 128 110 51 18 16 9 36 0.79
    286-814-2 0.5 12 9-10 165 142 62 20.5 21 11 46 1.5
    286-814-3
    1 20 11-13 175 146 66 25 25 12 57 2.4
    286-814-4
    2 25 14-16 211 176 82 31 30 15 70 4
    286-814-5
    3 40 18-19 252 212 95 38 35 16 80 7.4
    286-814-6
    4 55 20-22 288 240 110 44 41 19 95 11
    286-814-7
    5 75 24-26 329 274 130 51 51 22 110 16
    286-814-8
    6 90 27-29 375 310 144 57 57 25 130 22
    286-814-9
    7 110 30-32 423 350 155 63 64 28 146 31
    286-814-10
    8 125 34-36 474 400 163 69 64 28 148 39
    286-814-11
    9 150 37-39 527 450 178 76 70 30 153 50
    286-814-12
    10 170 40-42 580 500 187 76 76 33 160 66
    286-814-13
    11 225 43-48 650 550 213 89 89 39 186 96
    286-814-14
    12 280 49-52 745 640 240 101 95 46 194 130
    286-814-15
    13 360 54-58 785 660 275 114 108 54 250 180
    286-814-16
    14 425 60-68 970 835 300 127 121 60 270 275
    286-814-17
    15 460 72-76 1150 1000 355 146 133 76 300 440
    286-814-18
    16 625 81-86 1310 1160 375 159 140 79 300 510
