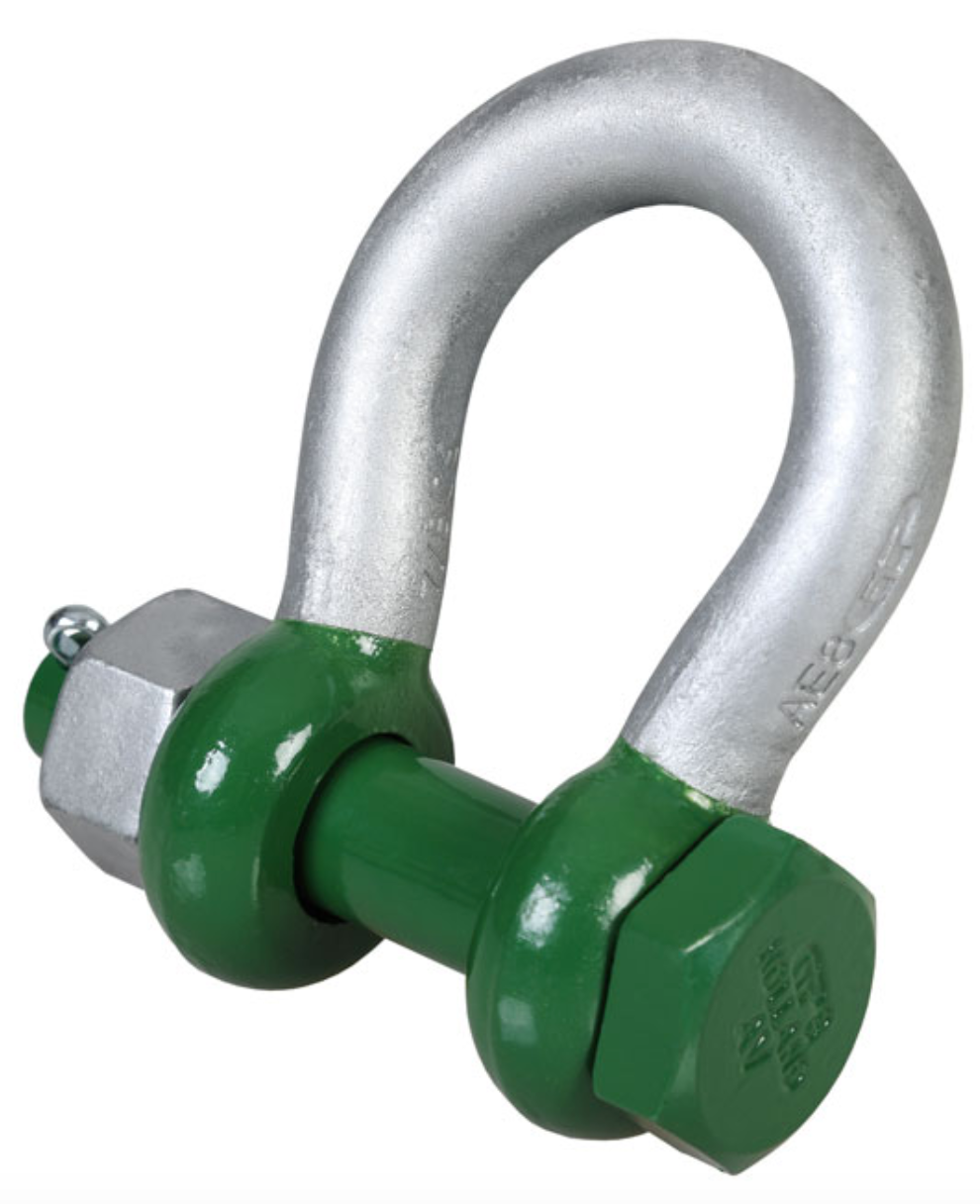

Green Pin Polar Grade 8 Bow Shackle with Safety Nut and Bolt Pin

Green Pin Polar Grade 8 Bow Shackle with Safety Nut and Bolt Pin

SKU: 269-23-1

Read More
Regular price £20.57
Regular price RRP Sale price TODAY'S PRICE £20.57

In stock (5)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Green Pin Polar  Grade 8 Bow Shackle with Safety Nut and Bolt Pin

  • Grade 8 alloy steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Conforms to BS EN 13889 (from 0.5t to 25t), ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271 Type IVA.
  • Minimum breaking load is 7 times the W.L.L.
  • Temperature range -60ºC up to +200ºC.
  • Full CAD support available upon request.
  • Certification available  2.1    3.1    DoC    DNV GL 2.7-1    DNV GL 0378
  • G-5163

Spec

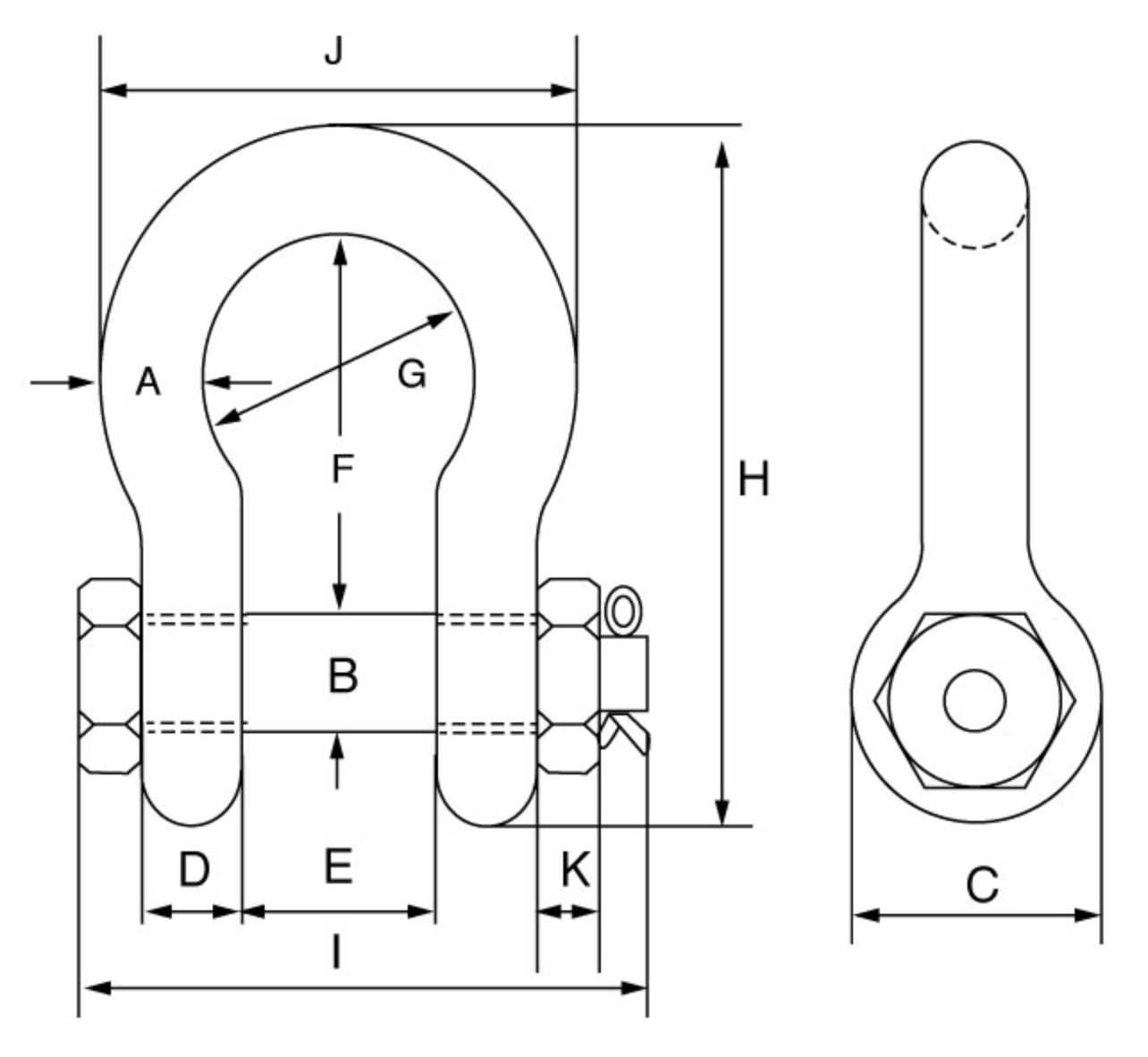

SKU W.L.L. A B C D E F G H I J K Weight Technical
t mm mm mm mm mm mm mm mm mm mm mm kgs Specification
269-23-1 2 13.5 16 34 13 22 51 32 89 82 58 13 0.42 Download
269-23-2 3.25 16 19 40 16 27 64 43 110 98 75 17 0.74 Download
269-23-3 4.75 19 22 46 19 31 76 51 129 114 89 19 1.18 Download
269-23-4 6.5 22 25 52 22 36 83 58 144 130 102 22 1.77 Download
269-23-5 8.5 25 28 59 25 43 95 68 164 150 118 25 2.58 Download
269-23-6 9.5 28 32 66 28 47 108 75 185 166 131 27 3.66 Download
269-23-7 12 32 35 72 32 51 115 83 201 178 147 30 4.91 Download
269-23-8 13.5 35 38 80 35 57 133 92 227 197 162 33 6.54 Download
269-23-9 17 38 42 88 38 60 146 99 249 202 175 19 8.19 Download
269-23-10 25 45 50 103 45 74 178 126 300 249 216 23 14.22 Download
269-23-11 35 50 57 116 50 83 197 138 334 269 238 26 19.85 Download
269-23-12 42.5 57 65 130 57 95 222 160 377 301 274 29 28.33 Download
269-23-13 55 65 70 145 65 105 260 180 433 330 310 32 39.59 Download
269-23-14 85 75 83 162 73 127 329 190 527 380 340 40 62 Download
