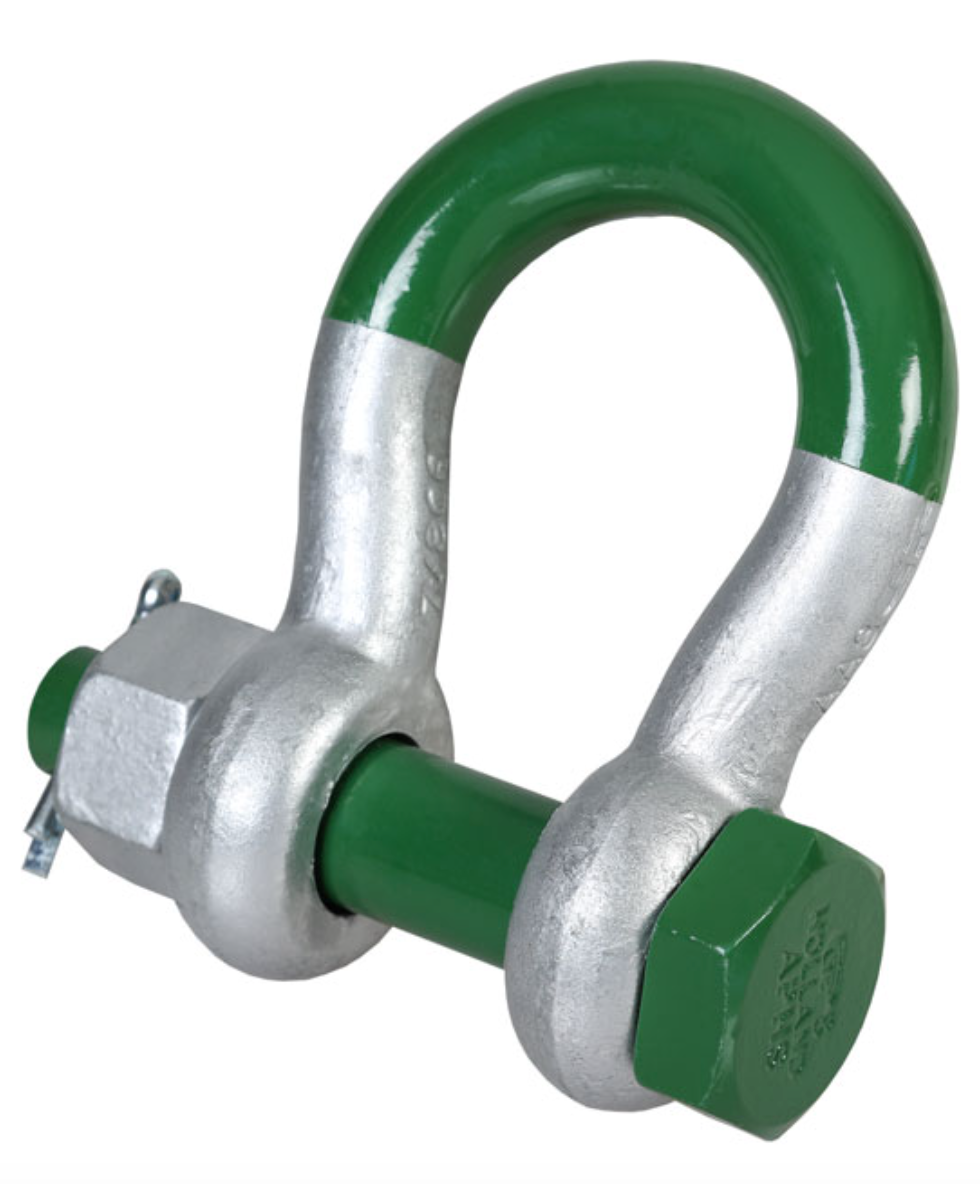

Green Pin Super Grade 8 Bow Shackle with Safety Nut and Bolt Pin

Green Pin Super Grade 8 Bow Shackle with Safety Nut and Bolt Pin

SKU: 269-25-1

Read More
Regular price £36.00
Regular price RRP Sale price TODAY'S PRICE £36.00

In stock (7)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Green Pin Super Grade 8 Bow Shackle with Safety Nut and Bolt Pin

  • Grade 8 alloy steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish, 175t is painted.
  • Conforms to ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, grade b.
  • Minimum breaking load is 5 times the W.L.L.
  • Temperature range -20ºC up to +200ºC.
  • 150 & 175 tonne with round headed bolt.
  • Full CAD support available upon request.
  • Certification available

Spec

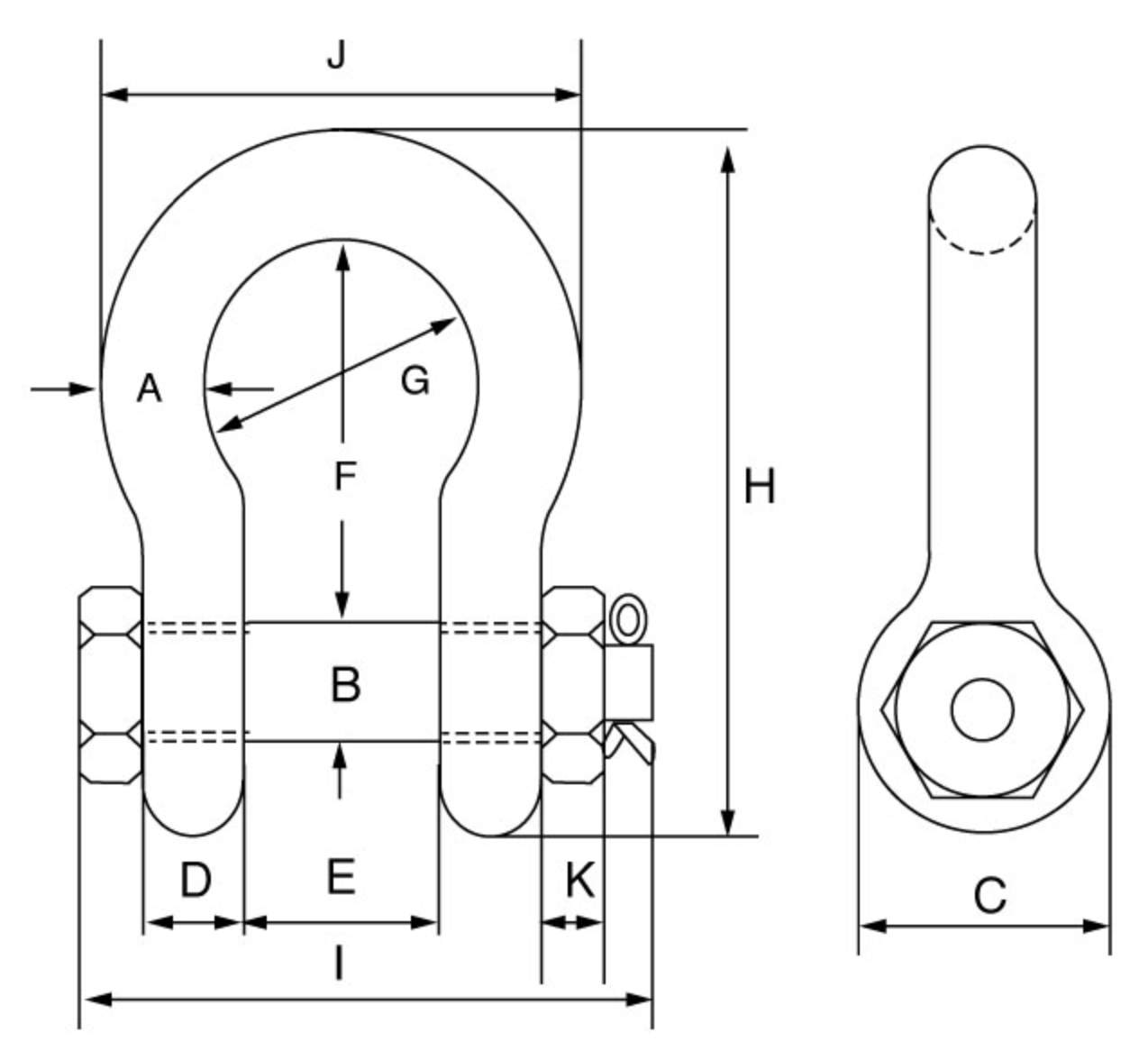

SKU W.L.L. A B C D E F G H I J K Weight Technical Specification
t mm mm mm mm mm mm mm mm mm mm mm kgs
269-25-1 3.3 13.5 16 34 13 22 51 32 89 82 58 13 0.4 Download
269-25-2 5 16 19 40 16 27 64 43 110 98 75 17 0.73 Download
269-25-3 7 19 22 46 19 31 76 51 129 114 89 19 1.19 Download
269-25-4 9.5 22 25 52 22 36 83 58 144 130 102 22 1.73 Download
269-25-5 12.5 25 28 59 25 43 95 68 164 150 118 25 2.56 Download
269-25-6 15 28 32 66 28 47 108 75 185 166 131 27 3.6 Download
269-25-7 18 32 35 72 32 51 115 83 201 178 147 30 4.95 Download
269-25-8 21 35 38 80 35 57 133 92 227 197 162 33 6.62 Download
269-25-9 30 38 42 88 38 60 146 99 249 217 175 34 8.11 Download
269-25-10 40 45 50 103 45 74 178 126 300 260 216 40 15 Download
269-25-11 55 57 57 117 57 83 197 138 341 303 252 46 23 Download
269-25-12 85 70 70 143 70 105 260 180 437 363 320 56 44 Download
269-25-13 120 83 83 162 83 127 329 190 535 425 356 66 72 Download
269-25-14 150 95 95 208 95 147 400 238 647 524 428 50 112 Download
269-25-15 175 105 108 238 105 169 410 275 688 567 485 50 160 Download
