Green Pin

Green Pin Swivel Eye/Eye

Green Pin Swivel Eye/Eye

SKU: 286-815-1

Read More
Regular price £3.95
Regular price RRP Sale price TODAY'S PRICE £3.95

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Green Pin Swivel Eye/Eye

  • High tensile steel, quenched and tempered.
  • Hot dipped galvanised finish.
  • Conforms to US Fed. Spec. RR-C-271 type VII class 2.
  • Minimum breaking load is 5 times the W.L.L.
  • Marked with CE, W.L.L, manufacturers ID, size and traceability code.
  • Certification available

      Spec

      SKU

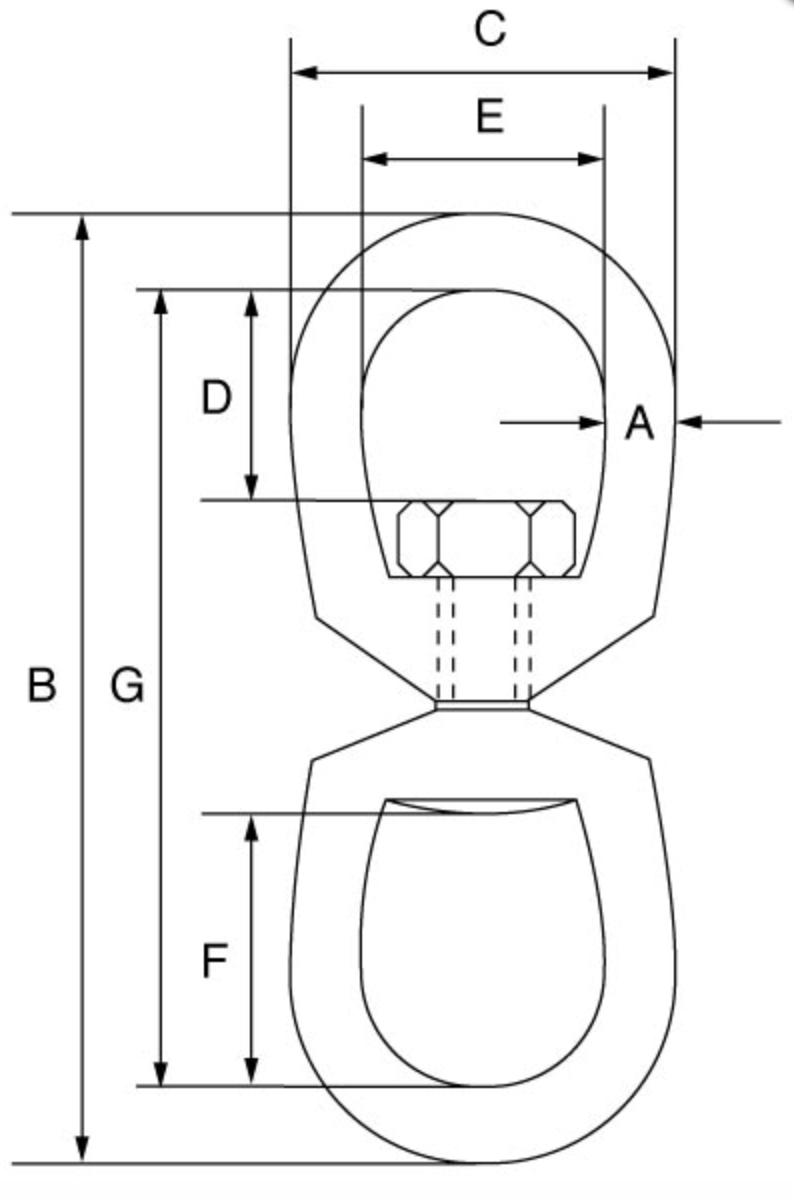

      W.L.L. A B C D E F G Weight
      t mm mm mm mm mm mm mm kgs
      286-815-1
      0.39 6 87 32 18 19 27 75 0.1
      286-815-2
      0.57 8 106 41 21 25 32 90 0.18
      286-815-3
      1.02 10 129 51 24 32 38 109 0.32
      286-815-4
      1.6 13 164 64 33 38 51 138 0.6
      286-815-5
      2.4 16 199 76 40 44 60 167 1.13
      286-815-6
      3.3 19 221 89 44 51 67 183 1.82
      286-815-7
      4.5 22 257 102 52 57 78 213 2.83
      286-815-8
      5.7 25 295 114 59 64 89 245 4.06
      286-815-9
      8.2 32 337 143 68 80 94 273 7.43
      286-815-10
      20.5 38 501 178 102 102 150 425 20.8
