Green Pin Swivel Eye/Jaw

Name: Green Pin Swivel Eye/Jaw
Brand: Green Pin
SKU: 286-816-1
Price: 4.68 GBP
Availability: InStock

Green Pin SKU: 286-816-1

1 2

Green Pin Swivel Eye/Jaw High tensile steel - used to prevent wire rope or chain from transferring their normal twisting motion to the item being lifted Read More

£4.68

Sale TODAY'S PRICE £4.68

In stock (20)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Description

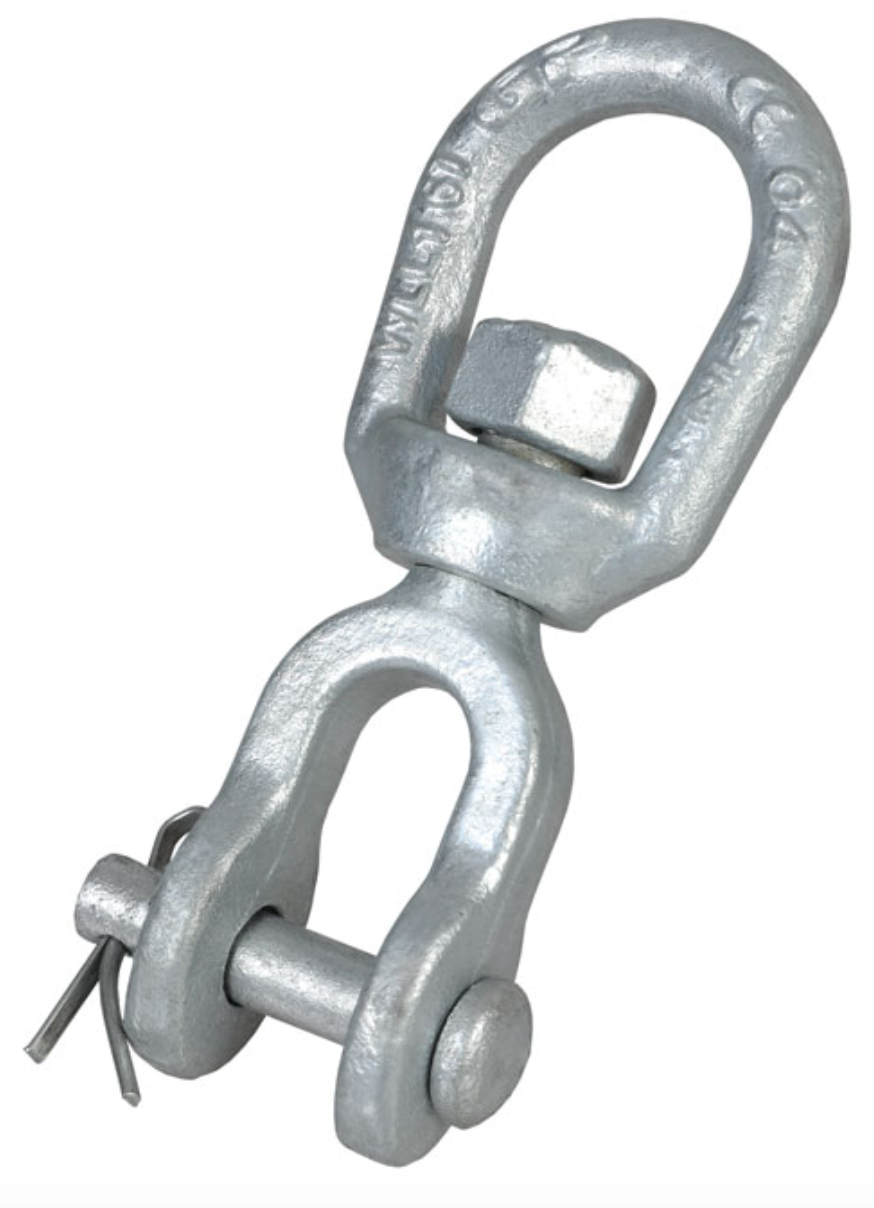

Green Pin Swivel Eye/Jaw

This Green Pin Swivel is a rigging and lifting component used to connect different pieces of hardware—like chains, wire ropes, or slings—while allowing controlled rotation and alignment.

Main Features of the Green Pin Swivel

High tensile steel, quenched and tempered.
Hot dipped galvanised finish for corrosion resistance.
Conforms to US Fed. Spec. RR-C-271 type VII class 2.
Safety factor (Minimum breaking load) is 5 times the W.L.L.
Marked with CE, W.L.L, manufacturers ID, size and traceability code.
Green Pin G-7723

These Green Pin Swivels are not designed to be rotate continually under an active load, instead they act as alignment and positioning devices.

For continuous rotation under load, a thrust-bearing swivel is required.

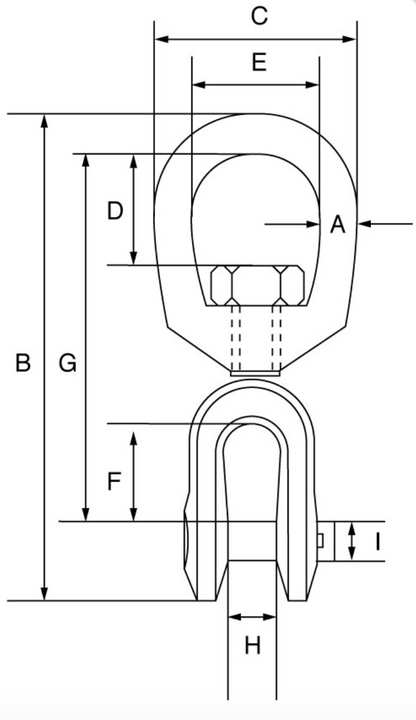

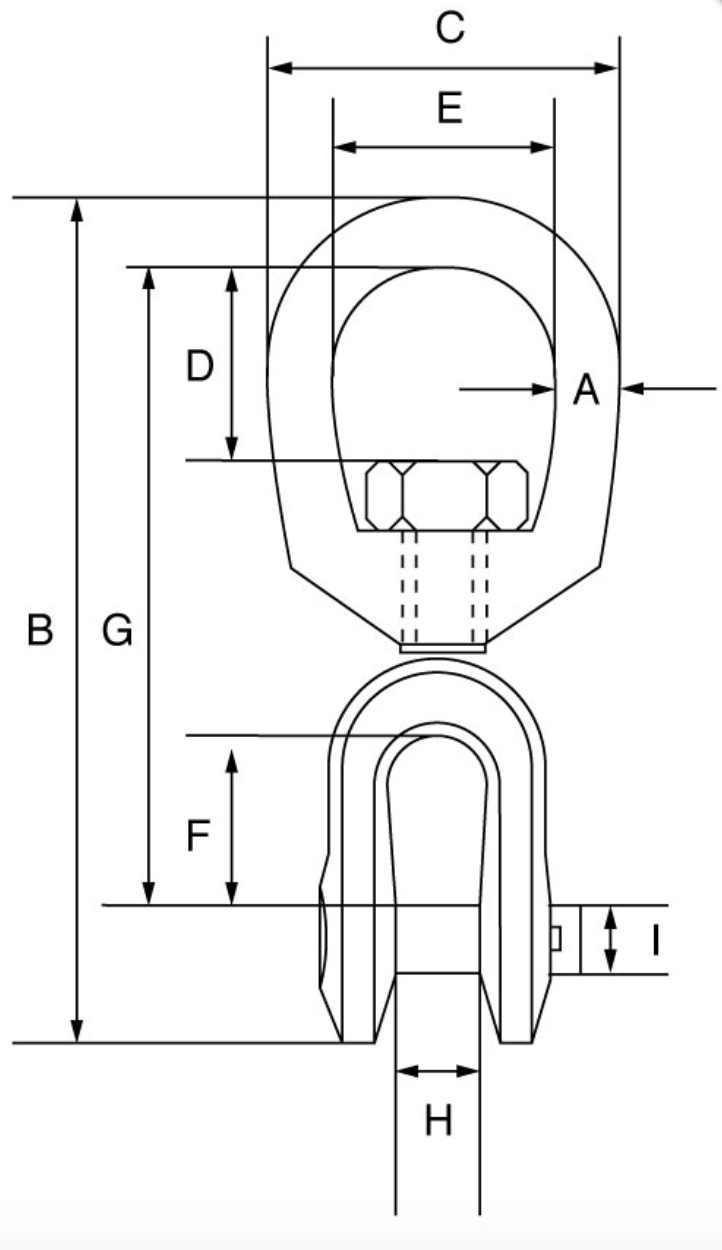

Specification

SKU	W.L.L.	A	B	C	D	E	F	G	H	I	Weight
	t	mm	mm	mm	mm	mm	mm	mm	mm	mm	kgs
286-816-1	0.4	6	84	32	18	19	22	67	12	6	0.11
286-816-2	0.6	8	98	41	21	25	22	75	13	8	0.17
286-816-3	1.12	10	121	51	24	32	27	92	16	10	0.32
286-816-4	1.6	13	154	64	33	38	33	114	19	13	0.65
286-816-5	2.4	16	186	76	40	44	38	135	24	16	1.12
286-816-6	3.3	19	211	89	44	51	44	154	29	19	1.76
286-816-7	4.5	22	242	102	52	57	52	178	30	22	2.66
286-816-8	5.7	25	290	114	59	64	71	217	44	29	4.46
286-816-9	8.2	32	329	143	68	80	71	230	52	35	7.14
286-816-10	20.5	38	501	178	106	102	113	364	73	50	24.8
