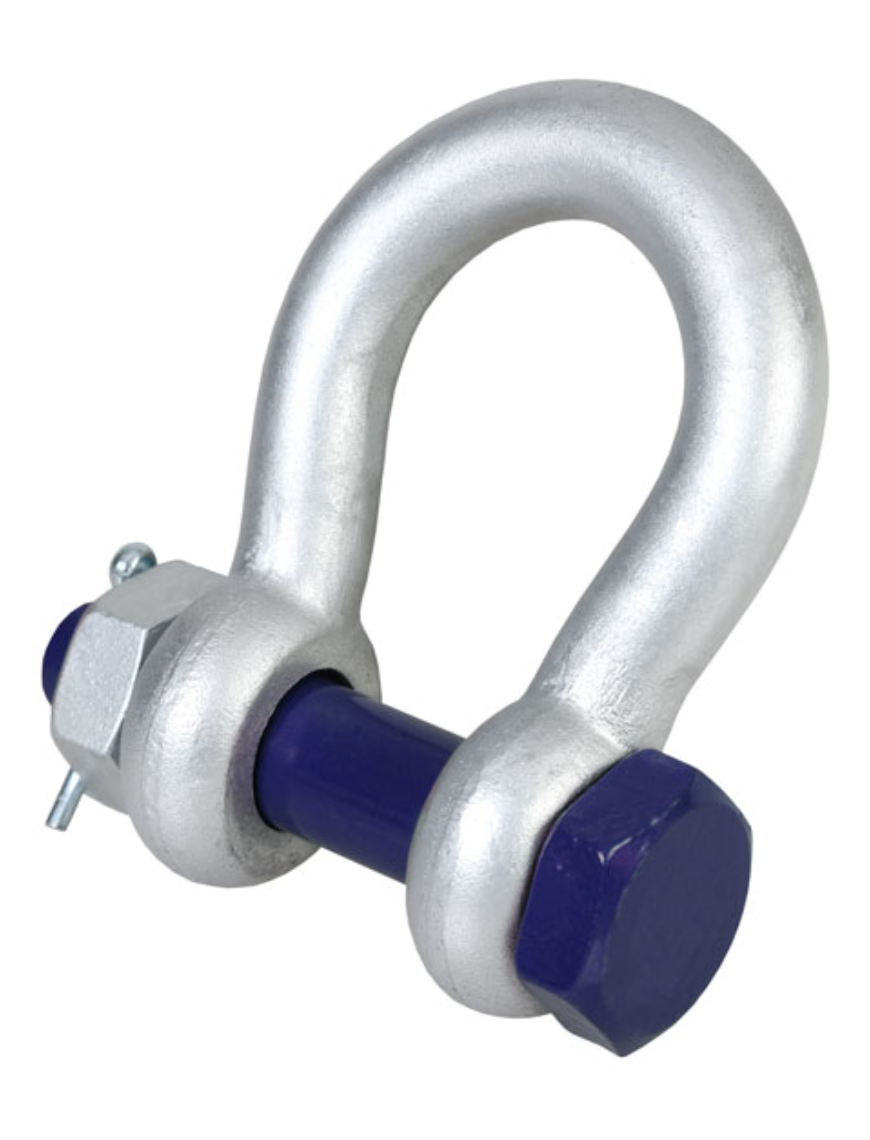

GT Blue Pin Grade 6 Bow Shackles with Safety Nut and Bolt Pin
- Grade 6 high tensile steel body and pin, quenched and tempered.
- Hot dipped galvanised finish.
- Meets the W.L.L. requirements of EN 13889 (from 0.5t to 25t) and US Fed. Spec RR-C 271.
- Temperature range 0ºC up to +200ºC.
- Minimum breaking load is 6 times the W.L.L.
- Marked with CE, W.L.L, manufacturers ID, size and traceability code.
- Certification - Declaration of Conformity
Specification
SKU |
W.L.L. |
A |
B |
C |
D |
E |
Weight |
|
t |
mm |
mm |
mm |
mm |
mm |
kgs |
269-100-41 |
0.5 |
6.4 |
8 |
12 |
22 |
20 |
0.06 |
269-100-42 |
0.75 |
8 |
10 |
13 |
26 |
21 |
0.11 |
269-100-43 |
1 |
9.5 |
11 |
17 |
32 |
26 |
0.15 |
269-100-44 |
1.5 |
11 |
12 |
18 |
36.5 |
29 |
0.21 |
269-100-45 |
2 |
12.7 |
16 |
20.6 |
41.3 |
32 |
0.37 |
269-100-46 |
3.25 |
16 |
19.8 |
27 |
51 |
43 |
0.65 |
269-100-47 |
4.75 |
19 |
22 |
32 |
62 |
51 |
1.04 |
269-100-48 |
6.5 |
21.7 |
27 |
36.6 |
74.8 |
58 |
1.56 |
269-100-49 |
8.5 |
25.4 |
30 |
43 |
81 |
68 |
2.32 |
269-100-50 |
9.5 |
28.5 |
33 |
46 |
90 |
75 |
3.28 |
269-100-51 |
12 |
31.5 |
36 |
51.6 |
100.8 |
83 |
4.51 |
269-100-52 |
13.5 |
34.9 |
39 |
57 |
112.5 |
92 |
5.93 |
269-100-53 |
17 |
38 |
42 |
60 |
125 |
99 |
7.89 |
269-100-54 |
25 |
44 |
52 |
73 |
146.5 |
126 |
13.4 |
269-100-55 |
35 |
50 |
56 |
82 |
171 |
138 |
18.85 |
269-100-56 |
55 |
63.5 |
68 |
105 |
203 |
180 |
37.86 |
