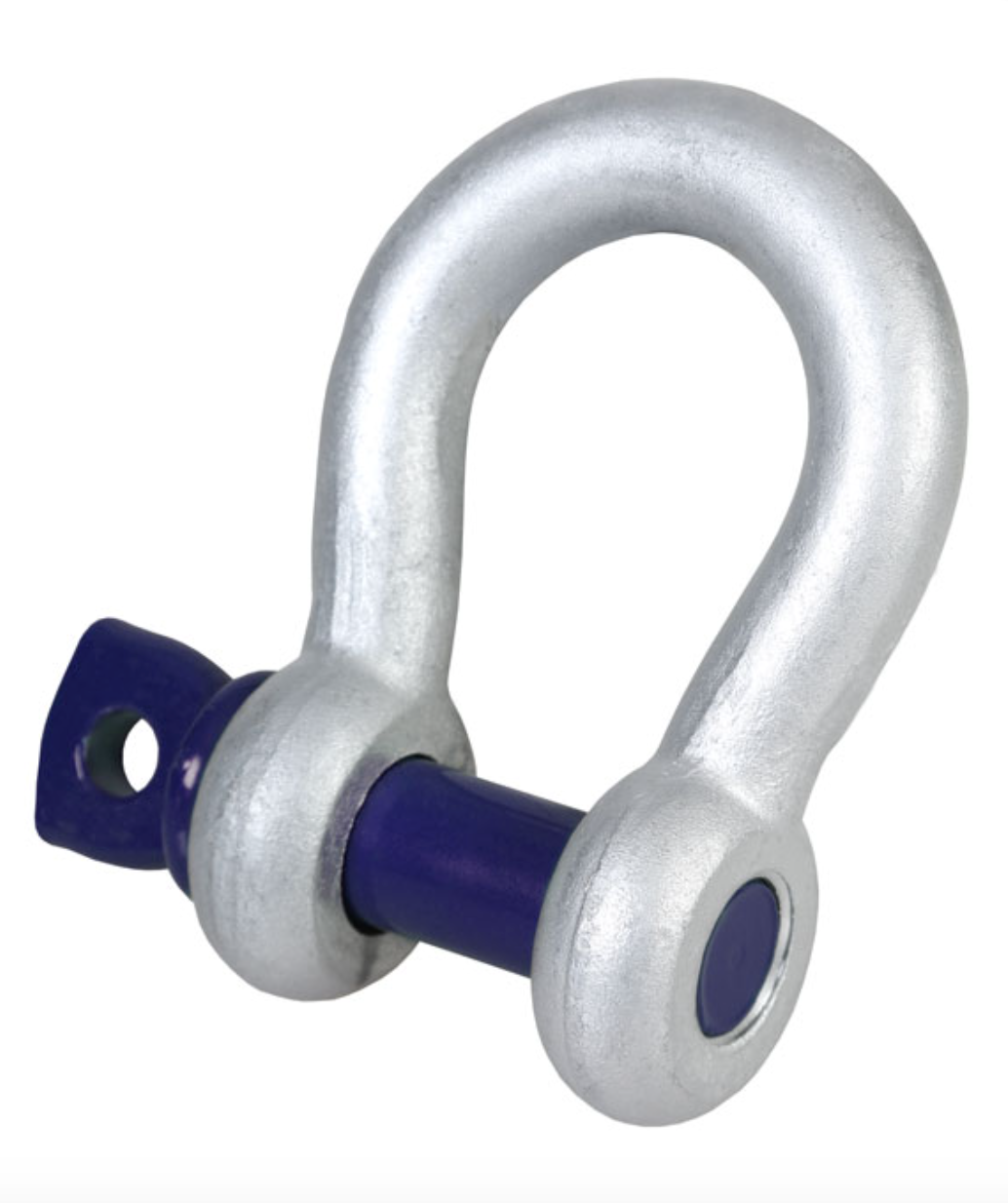

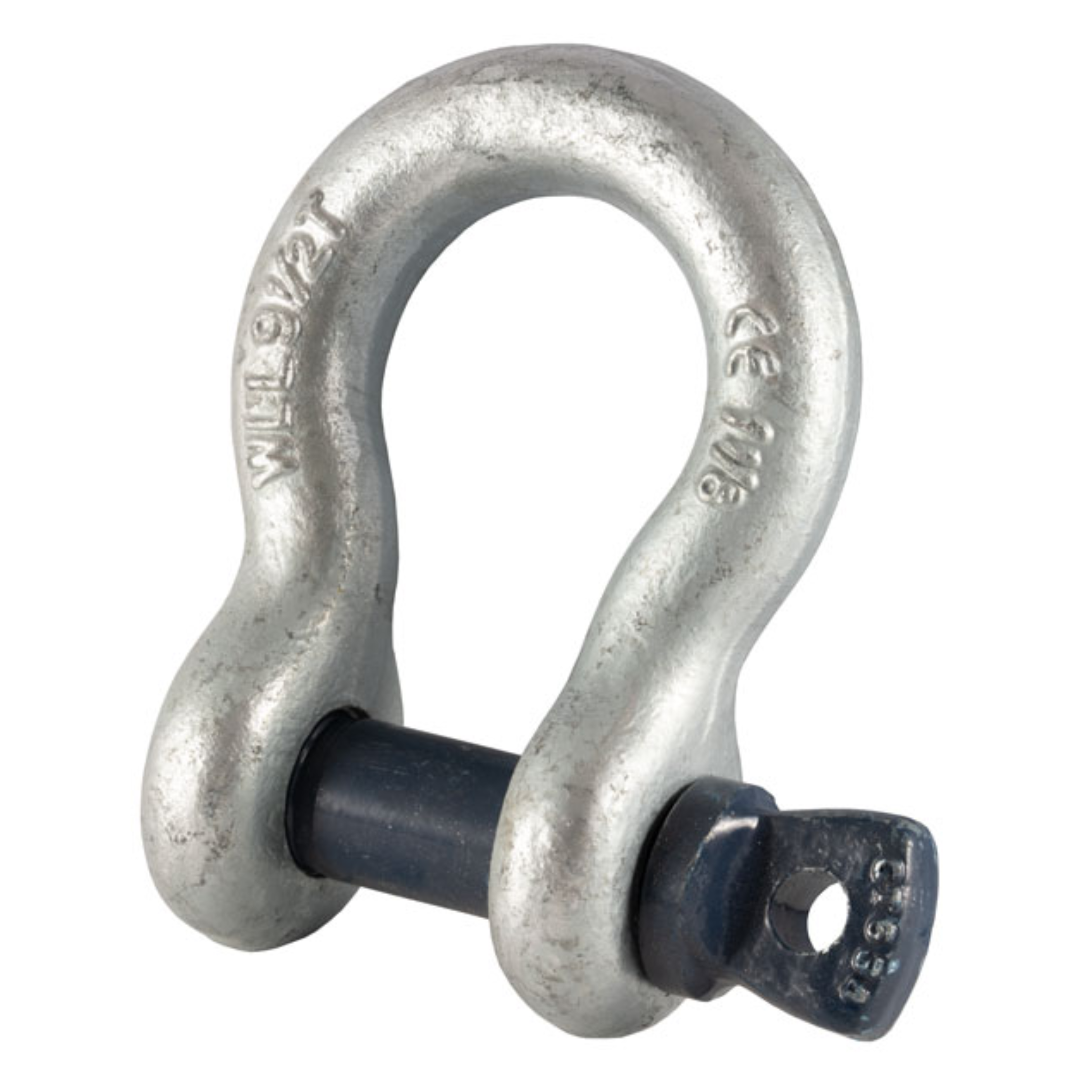

GT Blue Pin Grade 6 Bow Shackles with Screw Collar Pin
- Grade 6 high tensile steel body and pin, quenched and tempered.
- Hot dipped galvanised finish.
- Meets the W.L.L. requirements of EN 13889 (from 0.5t to 25t) and US Fed. Spec RR-C 271.
- Temperature range 0ºC up to +200ºC.
- Minimum breaking load is 6 times the W.L.L.
- Marked with CE, W.L.L, manufacturers ID, size and traceability code.
- Certification - Declaration of Conformity

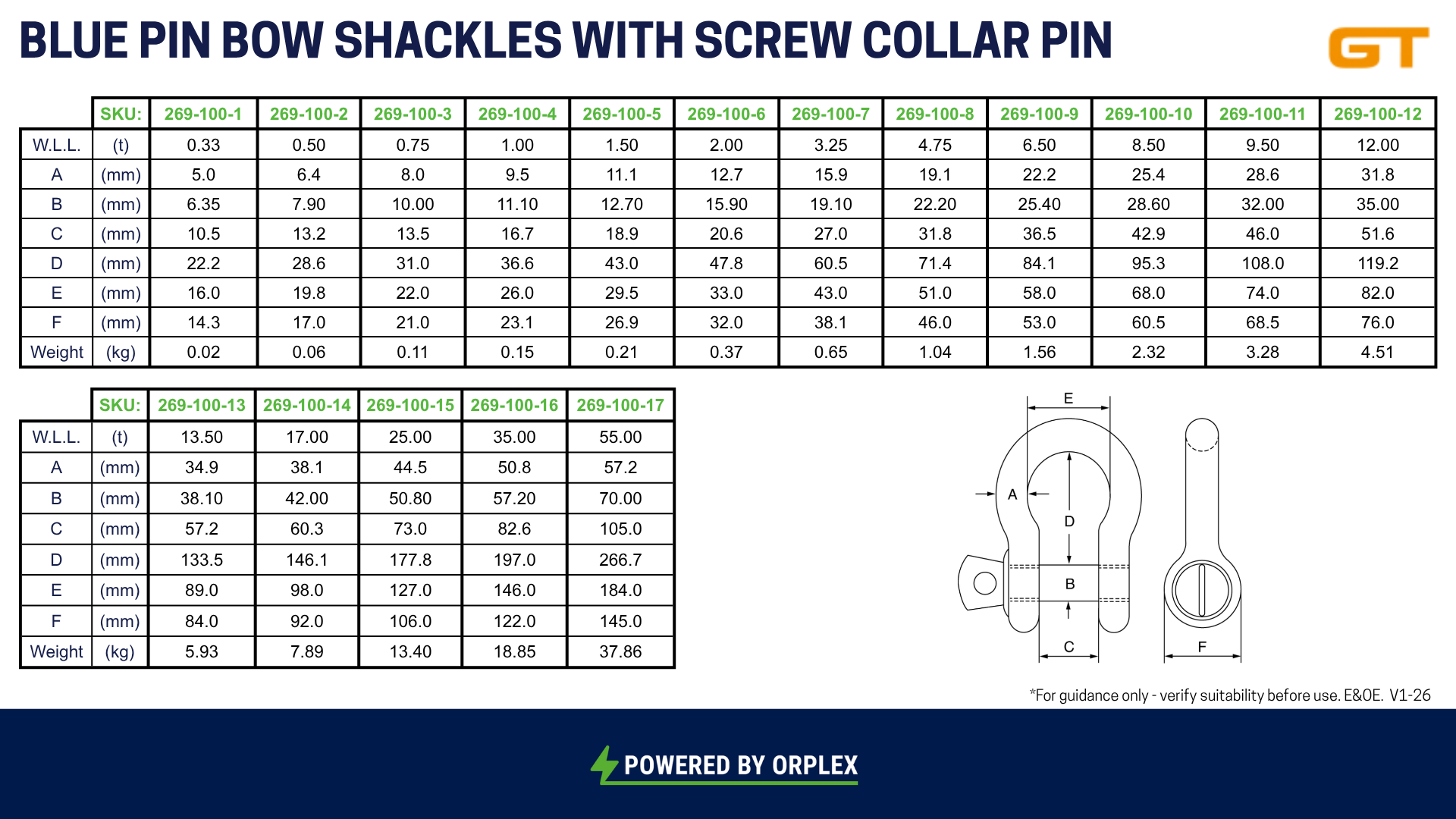

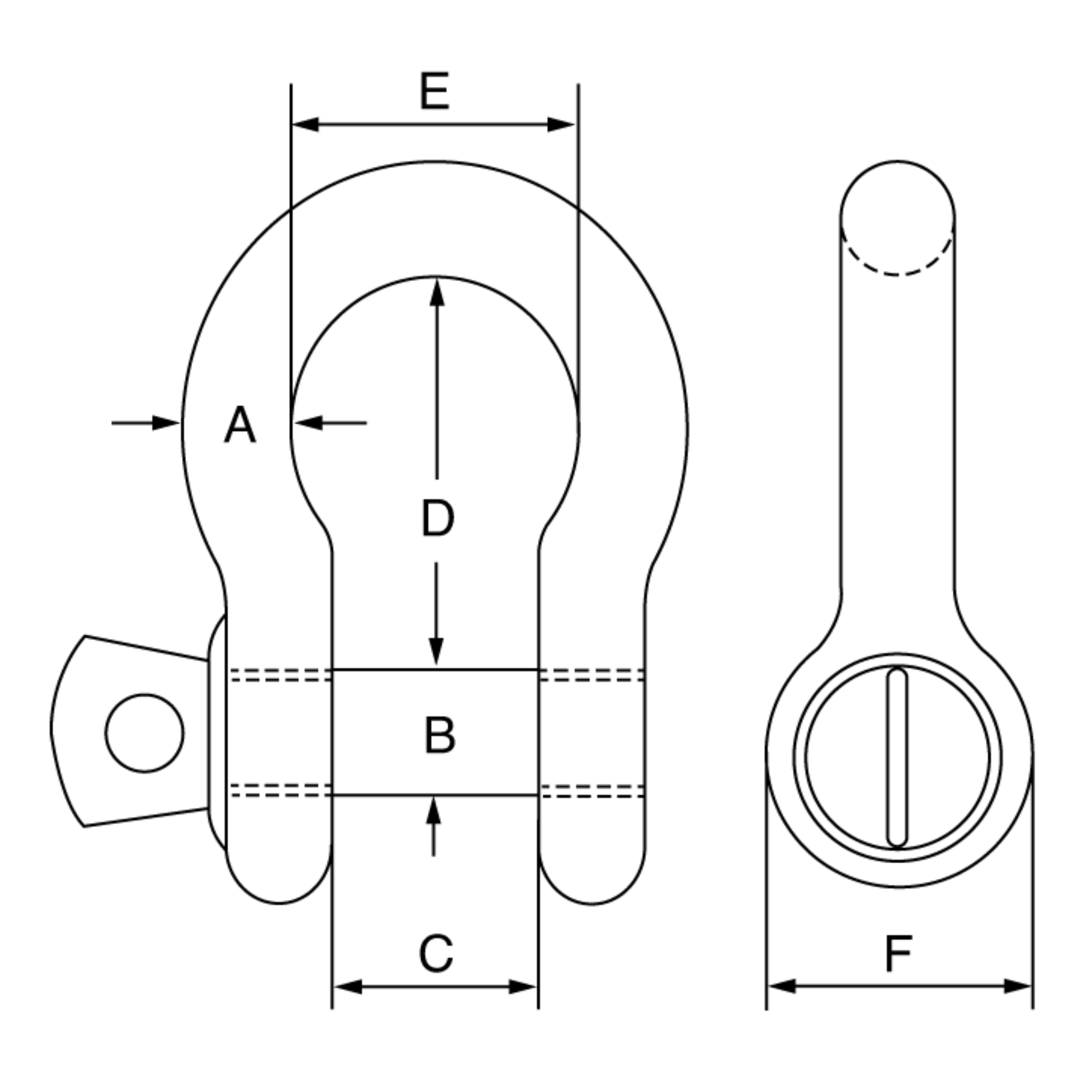

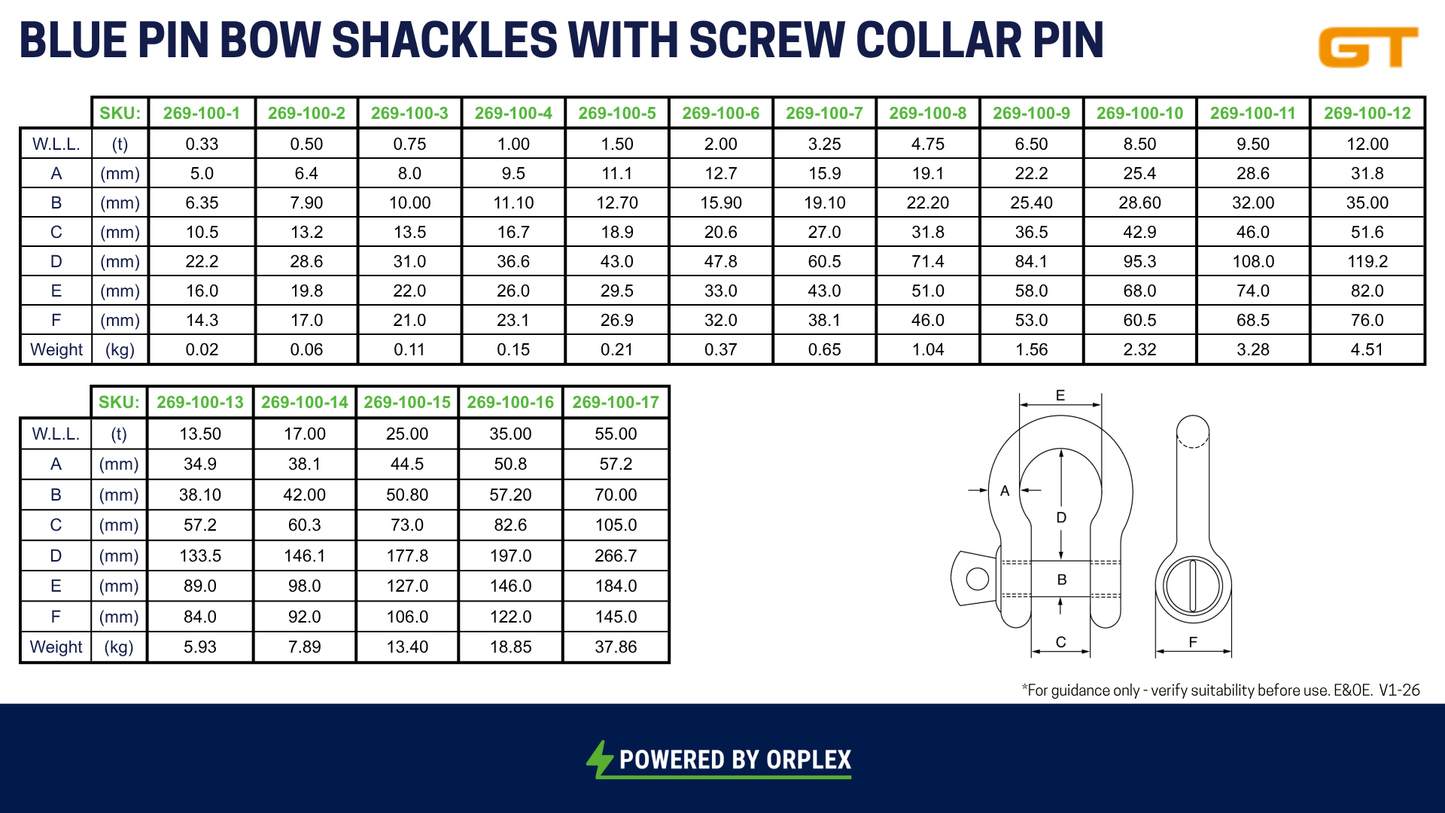

Specification
SKU |
W.L.L. |
A |
B |
C |
D |
E |
Weight |
|
t |
mm |
mm |
mm |
mm |
mm |
kgs |
269-100-1 |
0.33 |
5 |
6 |
9.5 |
22 |
16 |
0.02 |
269-100-2 |
0.5 |
6.4 |
8 |
12 |
28.6 |
20 |
0.06 |
269-100-3 |
0.75 |
8 |
10 |
13 |
31 |
21 |
0.11 |
269-100-4 |
1 |
9.5 |
11 |
17 |
36.5 |
26 |
0.15 |
269-100-5 |
1.5 |
11 |
12 |
18 |
42.5 |
29 |
0.21 |
269-100-6 |
2 |
12.7 |
16 |
20.6 |
47.3 |
32 |
0.37 |
269-100-7 |
3.25 |
16 |
19.8 |
27 |
60.5 |
43 |
0.65 |
269-100-8 |
4.75 |
19 |
22 |
32 |
71.5 |
51 |
1.04 |
269-100-9 |
6.5 |
21.7 |
27 |
36.6 |
84 |
58 |
1.56 |
269-100-10 |
8.5 |
25.4 |
30 |
43 |
96 |
68 |
2.32 |
269-100-11 |
9.5 |
28.5 |
33 |
46 |
108 |
75 |
3.28 |
269-100-12 |
12 |
31.5 |
36 |
51.6 |
119 |
83 |
4.51 |
269-100-13 |
13.5 |
34.9 |
39 |
57 |
133.5 |
92 |
5.93 |
269-100-14 |
17 |
38 |
42 |
60 |
147 |
99 |
7.89 |
269-100-15 |
25 |
44 |
52 |
73 |
178 |
126 |
13.4 |
269-100-16 |
35 |
50 |
56 |
82 |
197 |
138 |
18.85 |
269-100-17 |
55 |
63.5 |
68 |
105 |
267.5 |
180 |
37.86 |
