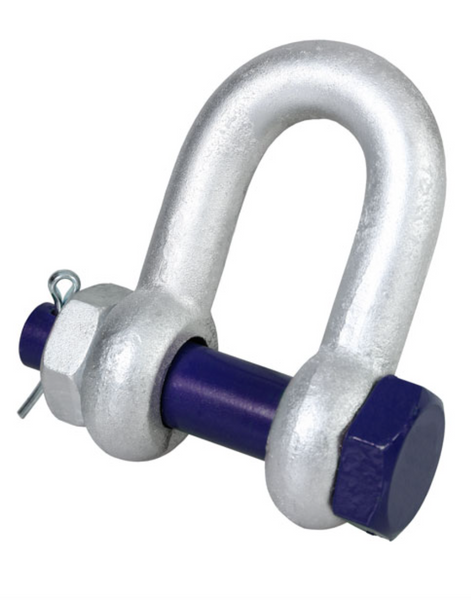

GT Blue Pin Grade 6 Dee Shackle with Safety Nut and Bolt Pin - BPSAD
- Grade 6 high tensile steel body and pin, quenched and tempered.
- Hot dipped galvanised finish.
- Meets the W.L.L. requirements of EN 13889 (from 0.5t to 25t) and US Fed. Spec RR-C 271.
- Temperature range 0ºC up to +200ºC.
- Minimum breaking load is 6 times the W.L.L. up to 85t, and 5 times the W.L.L. above 85t.
- Marked with CE, W.L.L, manufacturers ID, size and traceability code.
- Certification - Declaration of Conformity

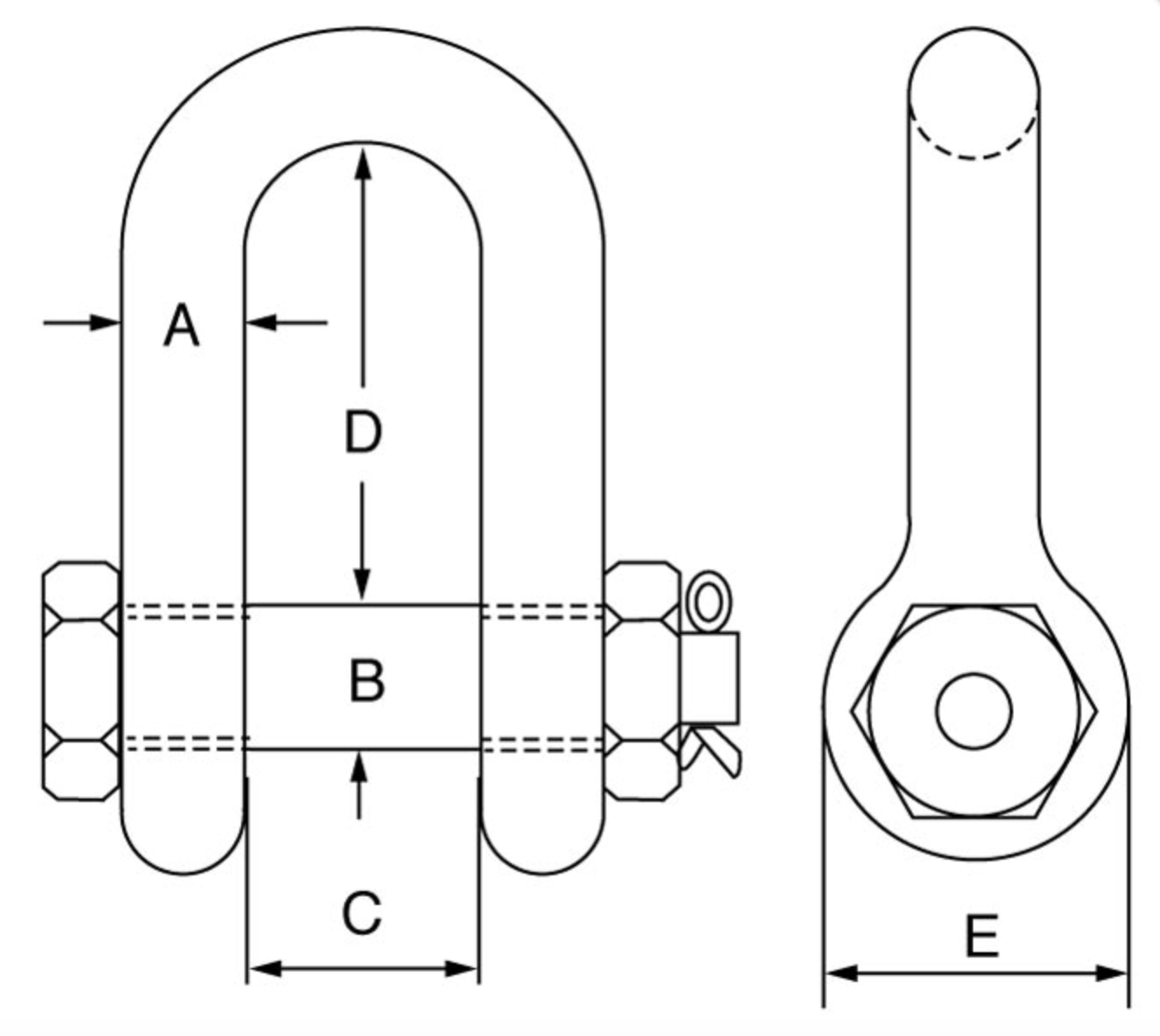

Specification
SKU |
W.L.L. |
A |
B |
C |
D |
Weight |
|
t |
mm |
mm |
mm |
mm |
kgs |
269-100-63 |
1 |
9.5 |
12 |
17 |
31.6 |
0.17 |
269-100-64 |
1.5 |
11 |
12 |
18 |
36.5 |
0.25 |
269-100-65 |
2 |
12.7 |
16 |
20.6 |
41.3 |
0.44 |
269-100-66 |
3.25 |
16 |
19.8 |
27 |
51 |
0.79 |
269-100-67 |
4.75 |
19 |
22 |
32 |
62 |
1.26 |
269-100-68 |
6.5 |
22 |
27 |
36.6 |
74.8 |
1.88 |
269-100-69 |
8.5 |
25 |
30 |
43 |
81 |
2.78 |
269-100-70 |
9.5 |
28.5 |
33 |
46 |
89.5 |
3.87 |
269-100-71 |
12 |
31.8 |
36 |
51.6 |
100.8 |
5.26 |
269-100-72 |
13.5 |
34.9 |
39 |
57 |
112.5 |
6.94 |
269-100-73 |
17 |
38 |
42 |
60 |
125 |
8.79 |
269-100-74 |
25 |
44 |
52 |
73 |
140.5 |
14.99 |
269-100-75 |
35 |
50 |
56 |
82 |
171.5 |
20.65 |
269-100-76 |
55 |
63.5 |
68 |
105 |
203 |
41.05 |
269-100-77 |
85 |
75 |
85 |
127 |
230 |
62 |
269-100-78 |
120 |
88 |
95 |
133 |
262 |
106 |
