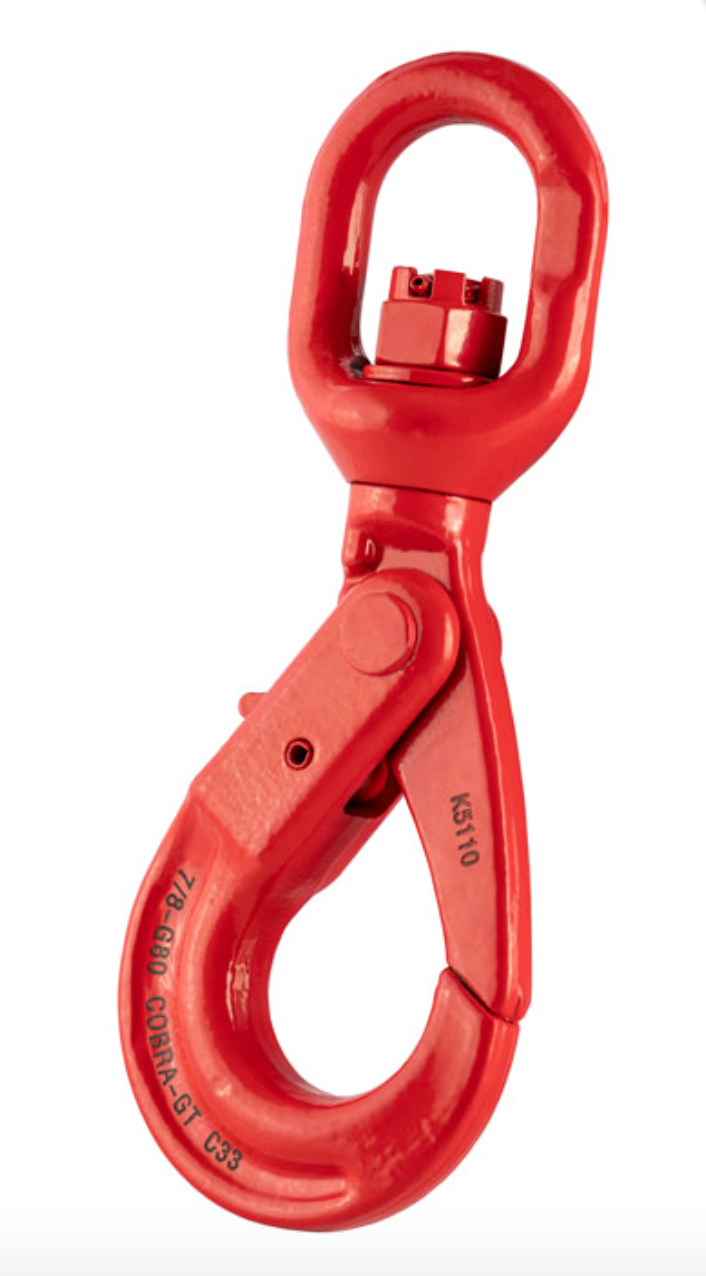

GT Cobra Grade 80 Swivel Self Locking Hook
- Alloy steel, quenched and tempered.
- Red painted finish.
- Meets the W.L.L. performance requirements of BS EN 1677-3.
- Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
- Certification available EC DoC
SKU
|
Part No. |
Chain Dia |
A |
B |
C |
E |
H |
L |
L1 |
M |
N |
Ø |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
286-120-1
|
K5110 |
7/8 |
36 |
29.5 |
39 |
35.8 |
29.5 |
228 |
189 |
87 |
20 |
44 |
286-120-2
|
K5111 |
10 |
42 |
35 |
48 |
48 |
30 |
270 |
224 |
108 |
26 |
58 |
286-120-3
|
K5112 |
13 |
50 |
41 |
65 |
52.5 |
40 |
324 |
267 |
122 |
33 |
70 |
286-120-4
|
K5113 |
16 |
61 |
56.8 |
65 |
63.3 |
50.5 |
406 |
355.6 |
168.6 |
36 |
86 |
286-120-5
|
K5114 |
20 |
72 |
63 |
85 |
86 |
55 |
460 |
378 |
185 |
50 |
97 |
Technical Data
SKU |
Part No. |
Chain Dia |
W.L.L. |
M.P.L. |
M.B.L. |
Packing Qty |
Weight |
|
|
mm |
t |
t |
t |
|
kgs |
286-120-1 |
K5110 |
7/8 |
2 |
4 |
8 |
15 |
1.15 |
286-120-2 |
K5111 |
10 |
3.15 |
6.3 |
12.6 |
8 |
1.86 |
286-120-3 |
K5112 |
13 |
5.3 |
10.6 |
21.2 |
6 |
3.51 |
286-120-4 |
K5113 |
16 |
8 |
16 |
32 |
4 |
7.33 |
286-120-5 |
K5114 |
20 |
12.5 |
25 |
50 |
1 |
10.3 |
