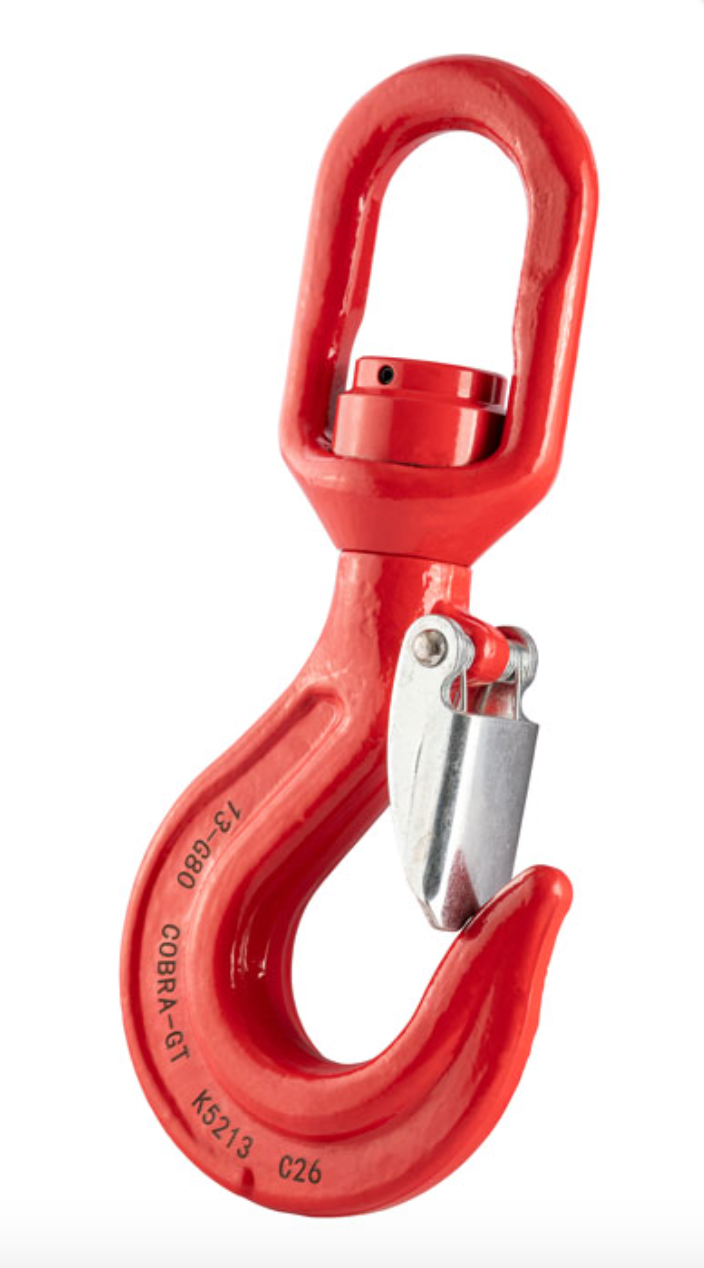

GT Cobra Grade 80 Swivel Sling Hook with Ball Bearing c/w Safety Catch
- Alloy steel, quenched and tempered.
- Red painted finish.
- Meets the W.L.L. performance requirements of BS EN 1677-3.
- Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
- Ball bearing type, performs full swivel under load.
- Certification available DoC
SKU
|
Part No. |
Chain Dia |
A |
B |
C |
E |
H |
L |
L1 |
M |
N |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
286-121-1
|
K5211 |
7/8 |
42 |
36 |
13 |
28.5 |
23 |
208 |
170 |
88 |
20 |
286-121-2
|
K5212 |
10 |
50 |
42 |
15.5 |
31 |
29.5 |
251.7 |
204.8 |
105 |
23 |
286-121-3
|
K5213 |
13 |
58 |
50 |
17 |
43.7 |
38 |
303.6 |
242 |
135 |
32 |
286-121-4
|
K5214 |
16 |
63.5 |
61 |
21.5 |
45 |
45.4 |
360.8 |
291.8 |
161 |
37.5 |
286-121-5
|
K5215 |
20 |
86 |
74 |
25 |
56 |
50 |
434.5 |
356 |
191.7 |
49 |
Technical Data
SKU |
Part No. |
Chain Dia |
W.L.L. |
M.P.L. |
M.B.L. |
Packing Qty |
Weight |
|
|
mm |
t |
t |
t |
|
kgs |
286-121-1 |
K5211 |
7/8 |
2 |
4 |
8 |
15 |
0.95 |
286-121-2 |
K5212 |
10 |
3.15 |
6.3 |
12.6 |
8 |
1.71 |
286-121-3 |
K5213 |
13 |
5.3 |
10.6 |
21.2 |
6 |
2.97 |
286-121-4 |
K5214 |
16 |
8 |
16 |
32 |
4 |
5.3 |
286-121-5 |
K5215 |
20 |
12.5 |
25 |
50 |
1 |
9.5 |
