GT Permanent Magnetic Lifter to BS-EN 13155 6,000kg

Name: GT Permanent Magnetic Lifter to BS-EN 13155 6,000kg
Brand: Viper
SKU: 286-524-1
Price: 222.00 GBP
Availability: InStock

Viper SKU: 286-524-1

1 1

GT Permanent Magnetic Lifter Permanent Magnetic Lifter for safe, easy operation and handling. Designed for the lifting & handling of magnetic material. Requires no... Read More

£222.00

Sale TODAY'S PRICE £222.00

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

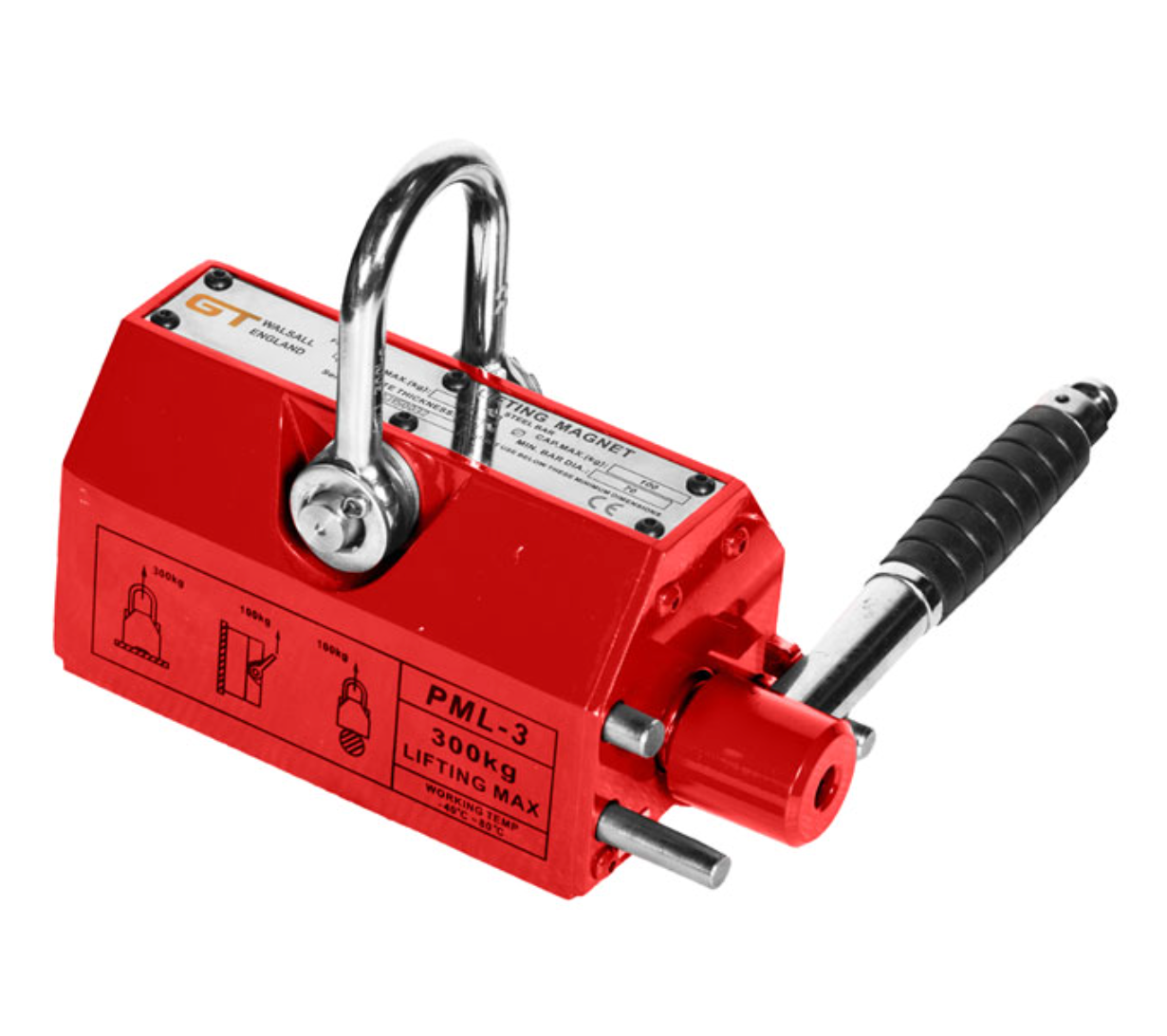

GT Permanent Magnetic Lifter

Permanent Magnetic Lifter for safe, easy operation and handling.
Designed for the lifting & handling of magnetic material.
Requires no extra power, strong magnetic force.
Red painted finish.
Conforms to BS EN 13155.
Temperature range -40ºC up to +80ºC.
Marked in accordance with BS EN 13155.
Certification - Declaration of Conformity

Specification

SKU	Part No.	Plate Capacity	Cylindrical Capacity	Tear-Off Force	H	I	L	W	Weight
		kgs	kgs	kgs	mm	mm	mm	mm	kgs
286-524-1	PML-1	100	30	350	70	142	92	64	3
286-524-2	PML-3	300	100	1,050	96	176	165	88	10
286-524-3	PML-6	600	200	2,100	120	219	236	118	24
286-524-4	PML-10	1,000	300	3,500	168	266	264	168	50
286-524-5	PML-20	2,000	600	7,000	217	462	378	230	125
286-524-6	PML-30	3,000	1,000	10,500	265	567	453	290	220
286-524-7	PML-60	6,000	2,000	19,200	265	707	713	290	398
