GT Viper Horizontal Plate Lifting Clamp PDB Type to BS-EN 13155 5,000kg / 0-45mm

Name: GT Viper Horizontal Plate Lifting Clamp PDB Type to BS-EN 13155 5,000kg / 0-45mm
Brand: GT Viper
SKU: 286-525-10
Price: 162.00 GBP
Availability: InStock

GT Viper SKU: 286-525-10

1 1

GT Viper Horizontal Plate Clamp - PDB Type (Supplied in Pairs) Specially hardened steel is used in both the serrated jaws. Matt black finish. Meets... Read More

£162.00

Sale TODAY'S PRICE £162.00

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

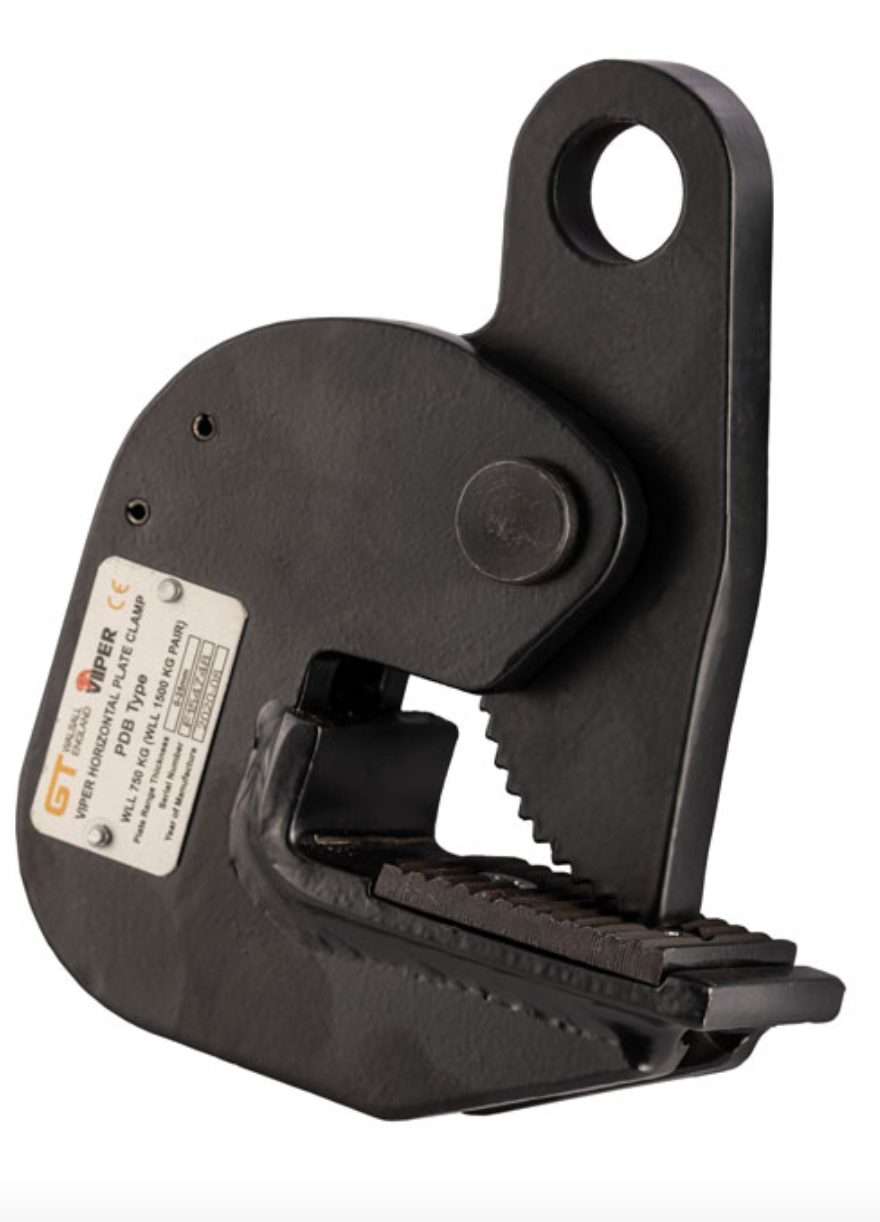

GT Viper Horizontal Plate Clamp - PDB Type (Supplied in Pairs)

Specially hardened steel is used in both the serrated jaws.
Matt black finish.
Meets the W.L.L. performance requirements of BS EN 13155.
Minimum breaking load is 4 times the W.L.L.
The steel plate lifted should be under the HRC 37 (HB 345).
Lifting under 20% of the rated capacity loading is strictly forbidden.
The GT Viper plate clamp is designed to lift one plate at a time.
Marked in accordance with BS EN 13155.
Certification available

Specification

SKU	Capacity Per Pair	Jaw Opening	A	B	C	D	E	Weight
	kgs	mm	mm	mm	mm	mm	mm	kgs
286-525-10	1,500	0 - 25	125	175	38	14	22	2.5
286-525-11	2,000	0 - 30	155	205	38	16	25	3.5
286-525-12	3,000	0 - 30	158	205	42	16	25	4
286-525-13	4,000	0 - 40	180	252	46	18	30	5
286-525-14	5,000	0 - 45	185	252	50	18	30	6
286-525-15	8,000	0 - 50	180	260	52	18	30	6.5
