GT Viper Vertical Plate Lifting Clamp CD Type to BS-EN 13155 2,000kg / 0-25mm

Name: GT Viper Vertical Plate Lifting Clamp CD Type to BS-EN 13155 2,000kg / 0-25mm
Brand: GT Viper
SKU: 286-525-1
Price: 162.00 GBP
Availability: InStock

GT Viper SKU: 286-525-1

1 1

LGT Viper Vertical Plate Lifting Clamp CD Type Specially hardened steel is used in both the serrated jaws. Matt black finish. Meets the W.L.L. performance requirements of BS... Read More

£162.00

Sale TODAY'S PRICE £162.00

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

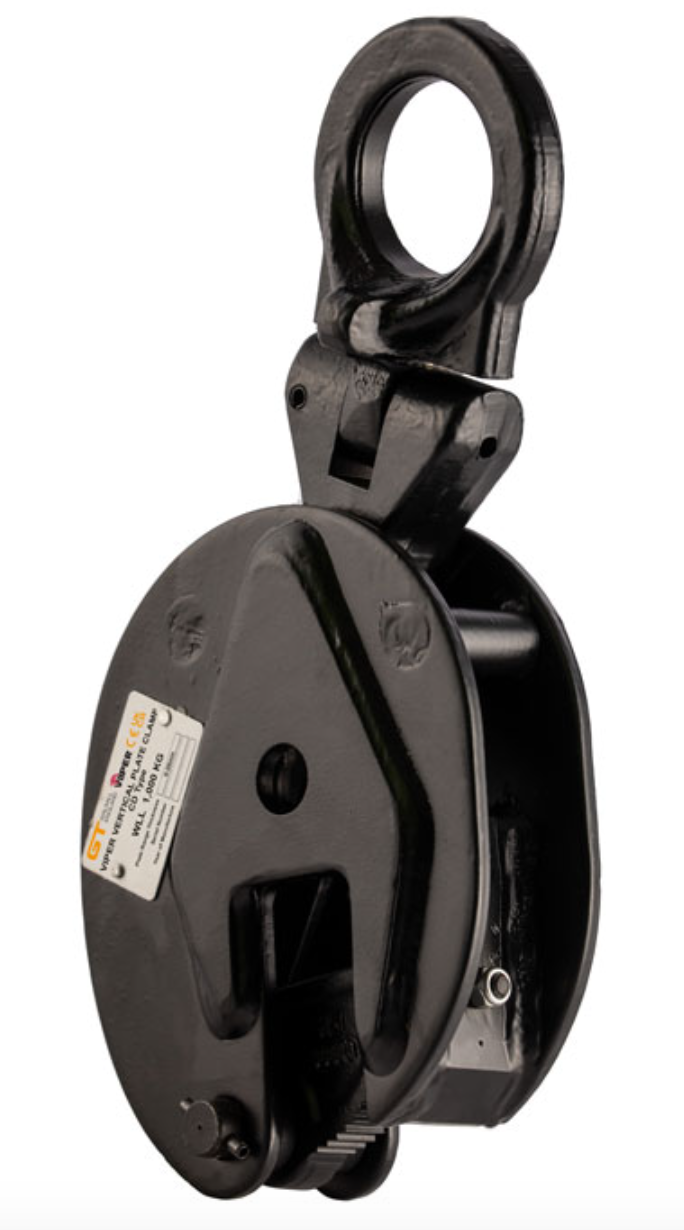

LGT Viper Vertical Plate Lifting Clamp CD Type

Specially hardened steel is used in both the serrated jaws.
Matt black finish.
Meets the W.L.L. performance requirements of BS EN 13155.
Minimum breaking load is 4 times the W.L.L.
The steel plate lifted should be under the HRC 37 (HB 345).
Lifting under 20% of the rated capacity loading is strictly forbidden.
The GT Viper plate clamp is designed to lift one plate at a time.
Marked in accordance with BS EN 13155.
Certification available

Specification

SKU	Capacity	Jaw Opening	A	B	C	D	E	F	G	H	K	Weight
	kgs	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kgs
286-525-1	500	0 - 15	25	37	128	212	30	98	40	29	10	2
286-525-2	1,000	0 - 20	33	63	170	295	48	145	54	42	12	5
286-525-3	2,000	0 - 25	35	76	205	370	68	175	56	54	18	8
286-525-4	3,000	0 - 25	45	83	237	418	76	215	78	59	20	15
286-525-5	5,000	0 - 30	55	90	262	480	76	232	90	59	20	23
