GT Viper Wire Rope Snatch Block Shackle Head
Skip to product information
1 of 3

GT Viper

GT Viper Wire Rope Snatch Block Shackle Head

GT Viper Wire Rope Snatch Block Shackle Head

SKU: 286-532-1

Read More
Regular price £96.00
Regular price RRP Sale price TODAY'S PRICE £96.00

In stock (2)

Tax included. Shipping calculated at checkout.

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250
Click & Collect from BL9 6EY
View full details

Description

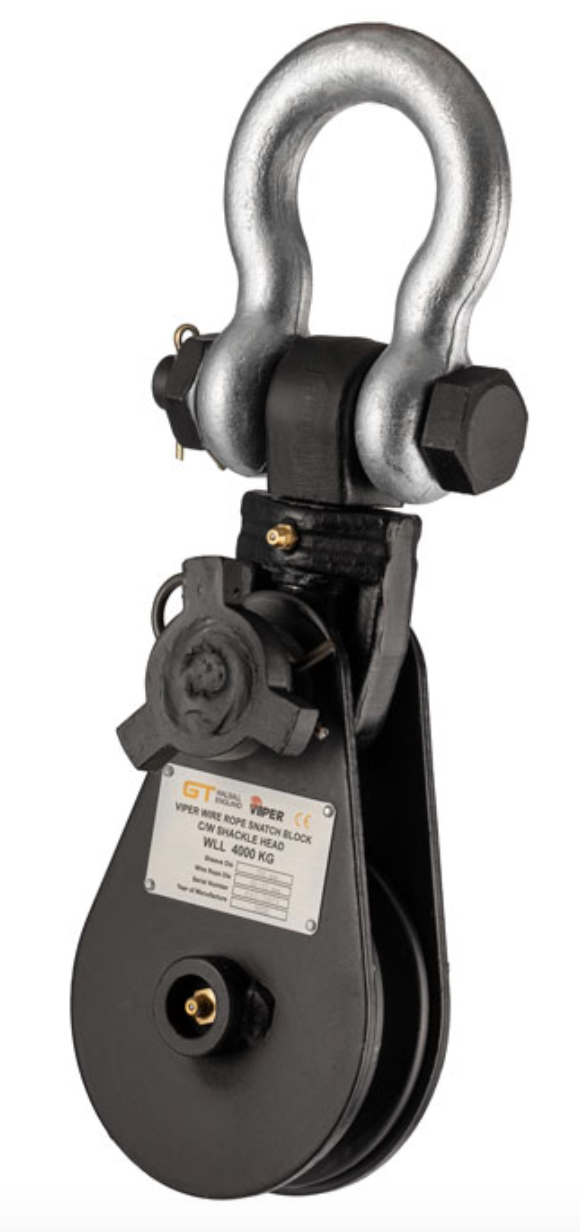

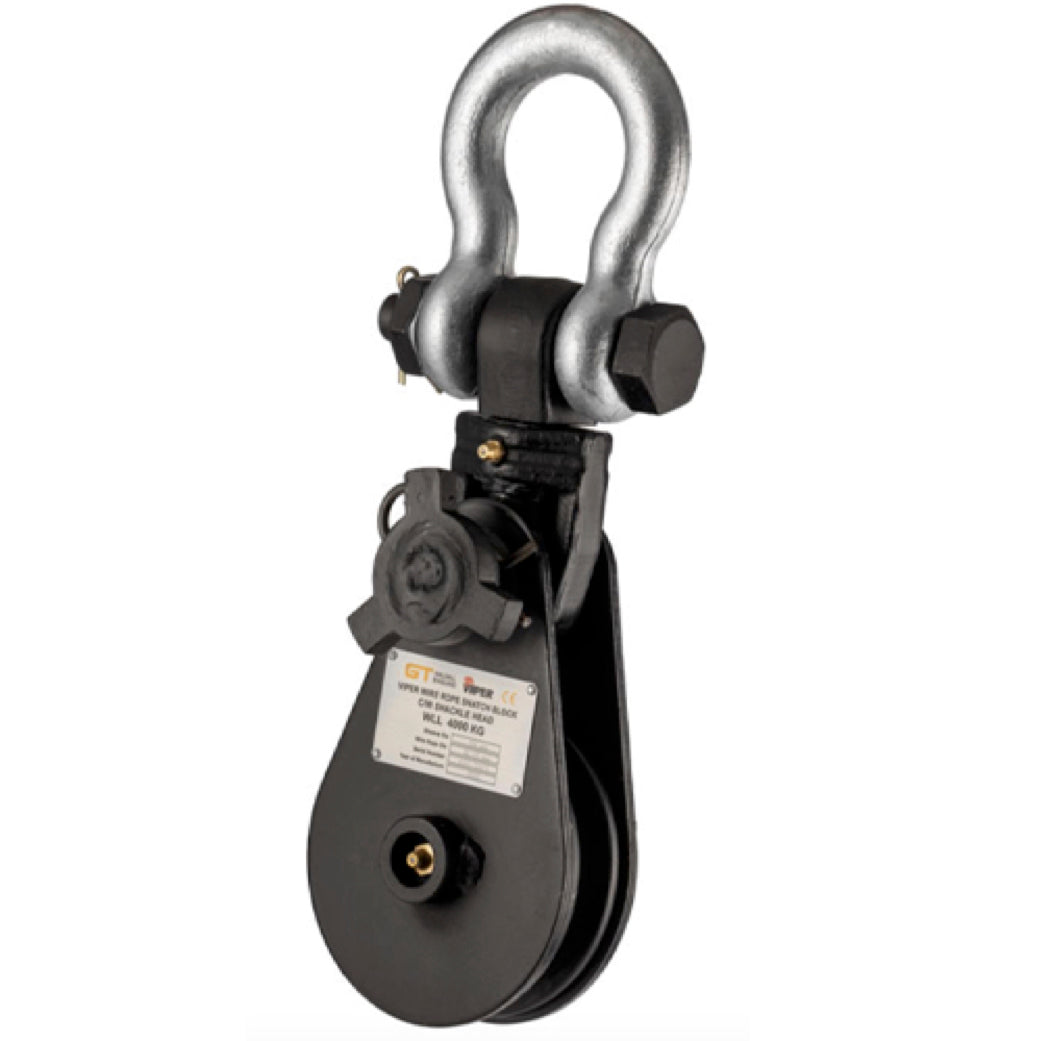

GT Viper Wire Rope Snatch Block Shackle Head
  • Carbon steel, light and robust design.
  • Matt black finish.
  • Minimum breaking load is 4 times the W.L.L.
  • 3” and 4.1/2” blocks are fitted with bronze bush. All other sizes are fitted with roller bearings.
  • Suitable for all types of industrial and commercial lifting and lowering applications.
  • W.L.L. is on the head fitting.
  • Certification supplied with goods - Declaration of Conformity

Specification

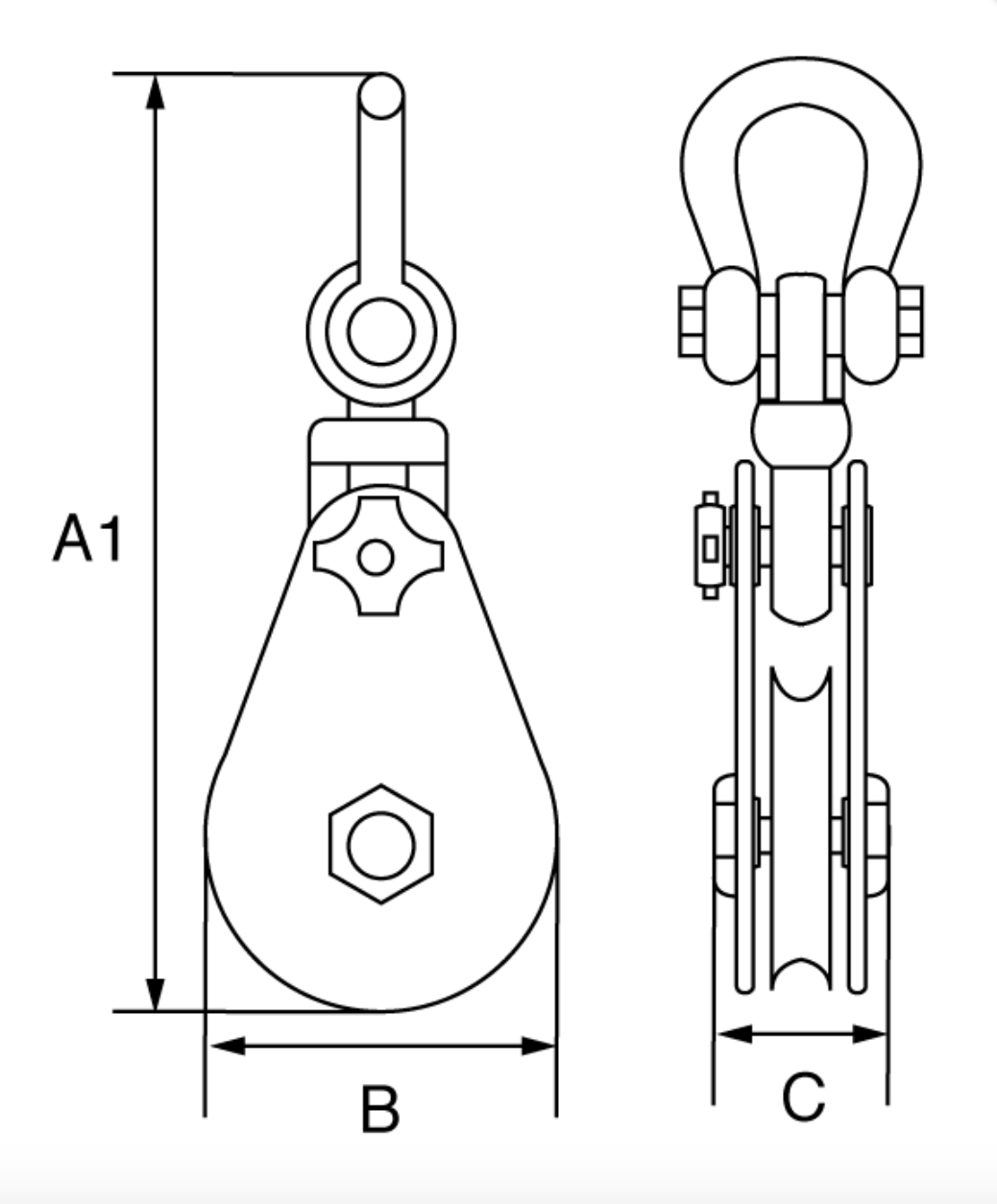

      SKU Sheave Dia W.L.L. Wire Dia A2 B C Weight
      inches t mm mm mm mm kgs
      286-532-1 3 2 7-9 286 82 70 4
      286-532-2 4.1/2 4 10-12 345 120 70 6
      286-532-3 6 8 16 480 160 93 15
      286-532-4 6 8 20-22 475 160 93 14
      286-532-5 8 8 20-22 528 210 93 20
      286-532-6 10 12 20-22 679 260 114 36
      286-532-7 8 15 20-22 663 210 98 34
      286-532-8 12 15 24-26 884 310 133 54
      286-532-9 14 22 28-32 952 365 140 112
      286-532-10 16 30 32-35 1085 415 155 170
      286-532-11 20 30 32-35 1177 514 162 213
