Description

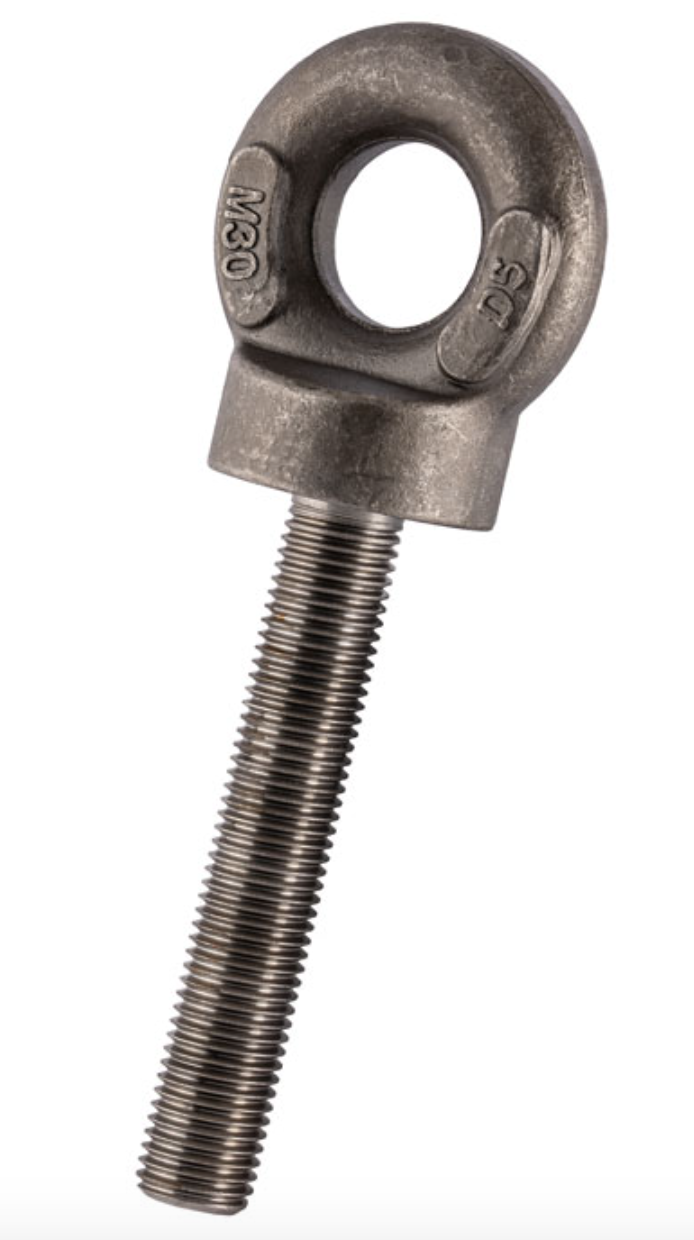

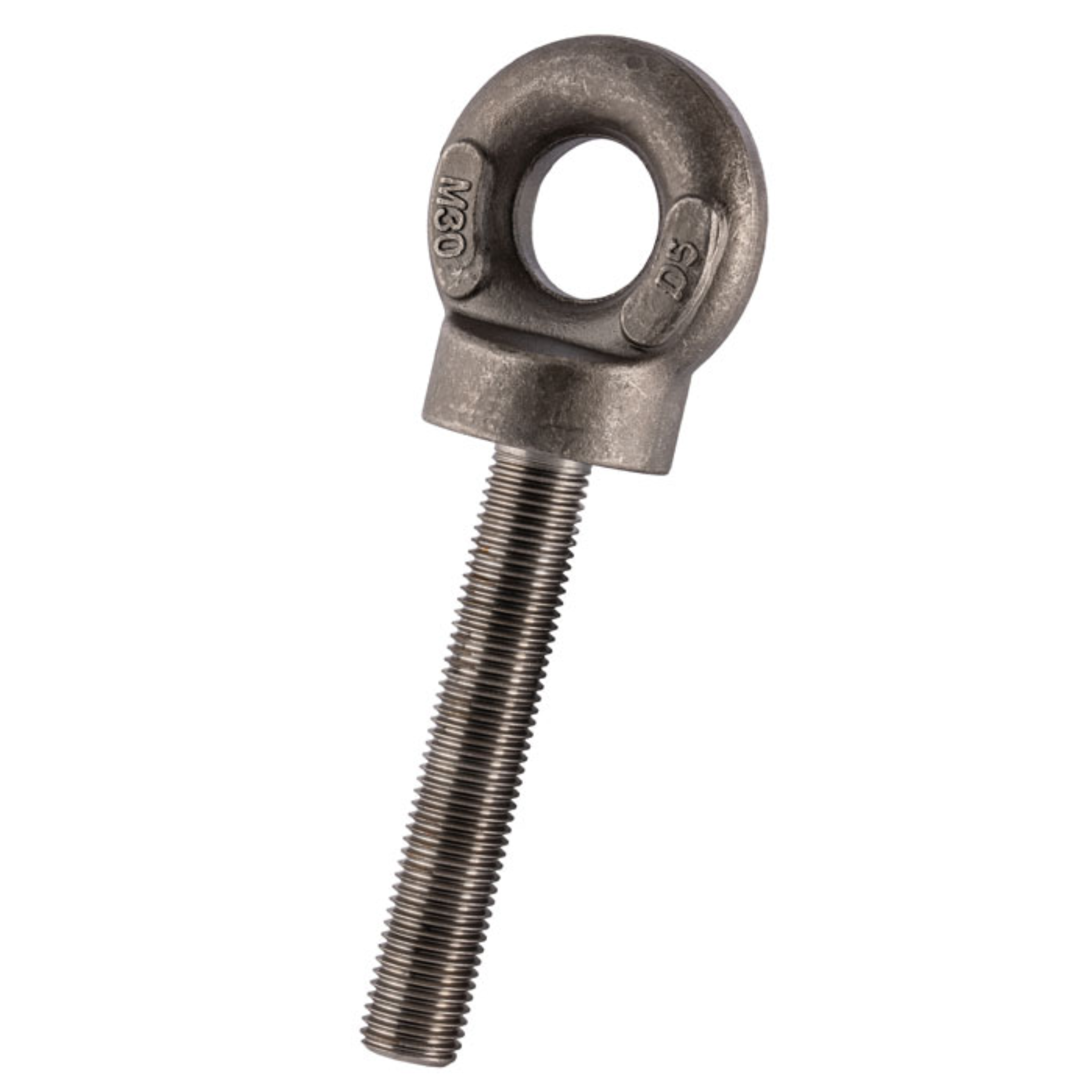

High Tensile Long Shank Collared Eyebolt Metric Thread
  • Drop forged, high tensile steel, heat treated.
  • Self colour and electro galvanised finish.
  • Meets the W.L.L. performance requirements of BS 4278.
  • Minimum breaking load is 5 times the W.L.L.
  • Marked with CE, W.L.L, size and product ID mark.
  • For further clarification on reductions for non-axial loading, please consult RiggingUK.
  • Certification available  DoC

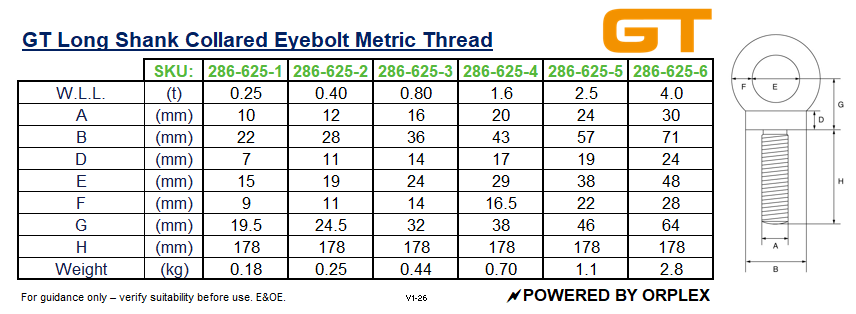

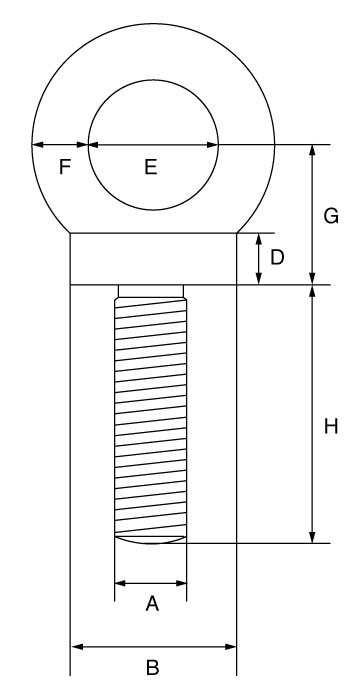

      Spec

      SKU  W.L.L. A B D E F G H Weight
      t mm mm mm mm mm mm mm kgs
      286-625-1 0.25 10 22 7 15 9 19.5 178 0.18
      286-625-2 0.4 12 28 11 19 11 24.5 178 0.25
      286-625-3 0.8 16 36 14 24 14 32 178 0.44
      286-625-4 1.6 20 43 17 29 16.5 38 178 0.7
      286-625-5 2.5 24 57 19 38 22 46 178 1.05
      286-625-6 4 30 71 24 48 28 64 178 2.8
