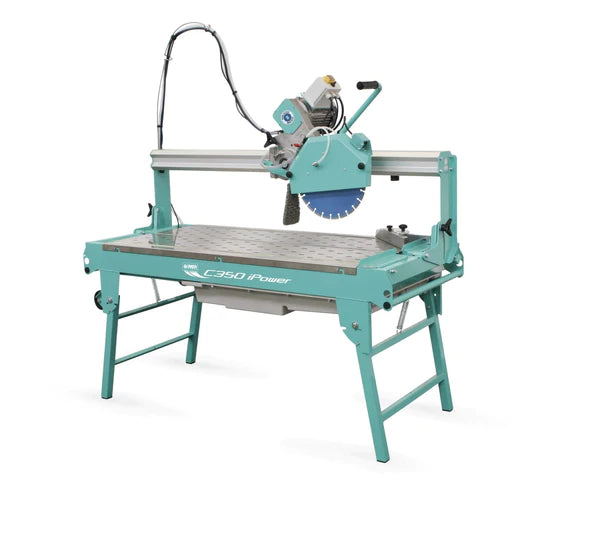

IMER C350i Power Masonry, Stone & Marble Saw - Combi - 230V
A high power saw for cutting marble, bricks and stone.
It is designed both for building sites and for the installer. It allows installer to cut tiles up to 1200 mm length with plunge cutting.
The C350i Power can be also used in building sites to cut blocks up to 250 mm height with two passes. The tilting cutting head allows for high speed in performing special cuts.
(45° bevel cut in only 5 min. – no optional cutting accessories are required).
The saw can be lowered as the legs fold underneath and can be transported in a van. It comes with a GP Diamond Blade but types of blades for specific materials are available.
Spec
SKU |
|
294-4-13 |
Blade/Bore Diameter |
mm |
350/25.4 |
Max. Cutting Length (plunge cutting) |
mm |
1050 (1200) |
Max. Cutting Depth, 1/2 runs |
mm |
120/250 |
Cutting Surface Dimensions |
mm |
139x696 |
Work Table Height |
mm |
785 |
Electric Power Supply |
v/Hz |
230 / 50 Sph 230 / 60 Sph |
Moter Power Rate |
kW |
2.5 |
Motor Speed |
rpm |
2800 |
Running Current |
A |
15 |
Water Recovery Tray Capacity |
L |
40 |
Machine Dimensions w/l/h |
mm |
60/1746/1410 |
Packing Dimensions |
mm |
746/1770/1080 |
Machine Weight (packed) |
kg |
113 (133) |
Max. Stackability |
|
2 (h 2400mm) |
