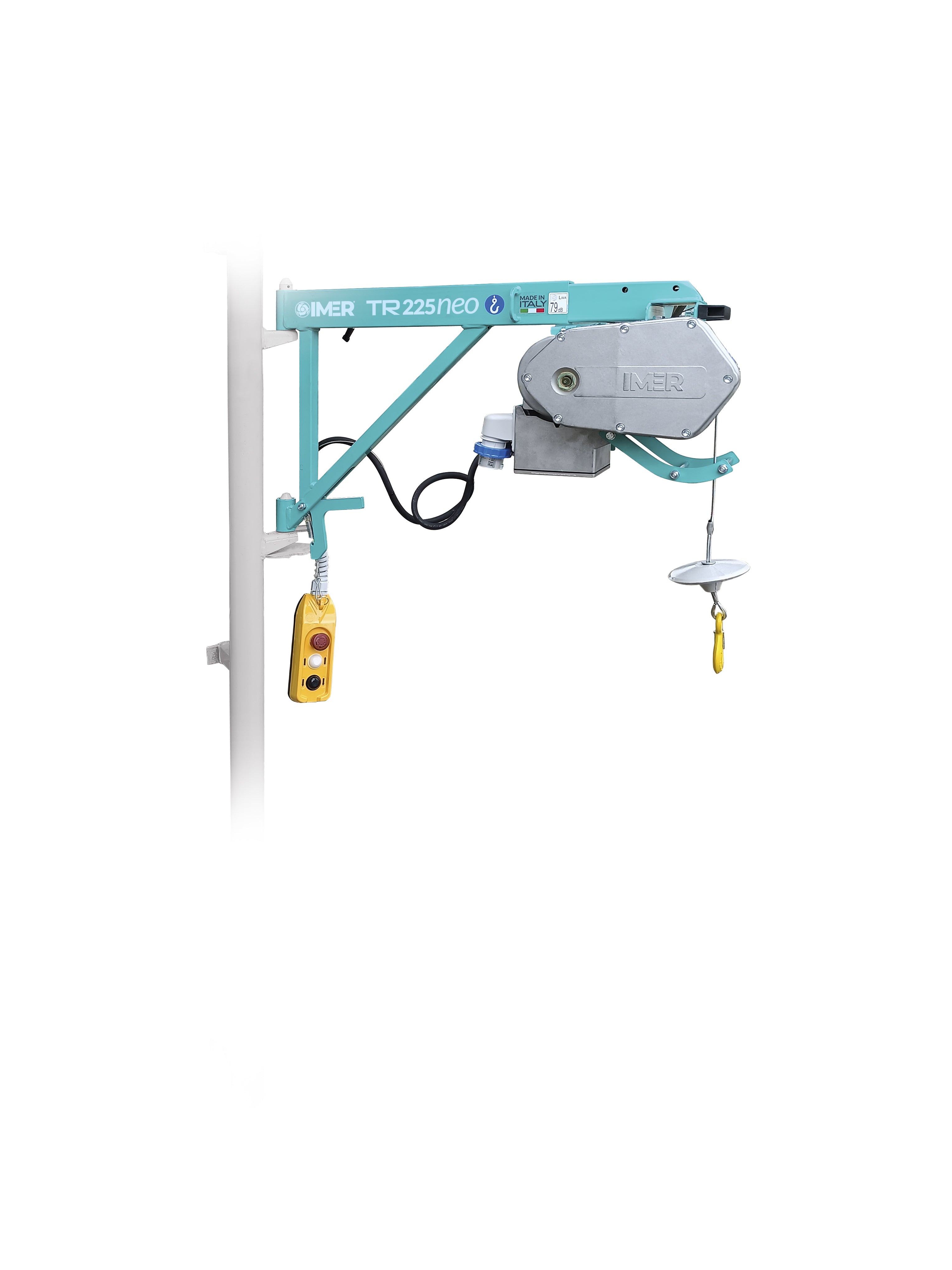

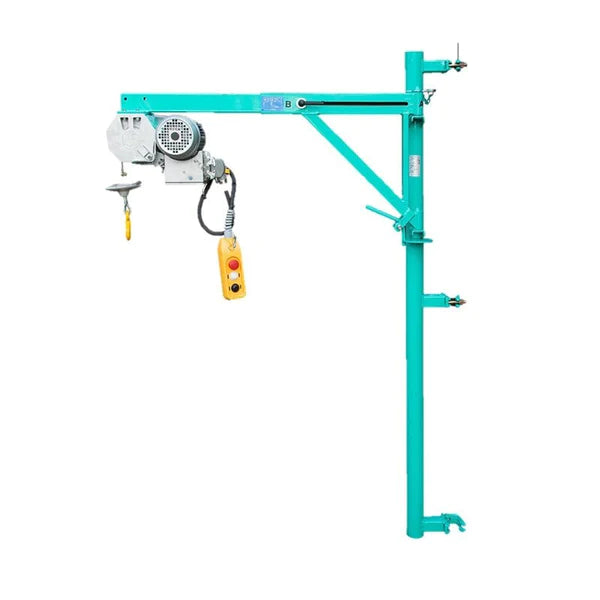

IMER TR225 Scaffold Hoist Complete Kit with Extendable Bracket 200kg - 110v - 30m High Capacity
The TR225N heavy duty IMER Scaffold Hoist is designed for use in industrial or construction applications and is the perfect choice by many of the leading rental companies.
Fitted with front loading drum – this reduces the risk of bunching when used on scaffolding that is not perfectly straight.
This Scaffold Hoist has a lifting capacity of 200kg and a lifting height of 30m.
• IP67 plug
• 31m Wire Rope
• Motor Speed 1360/1380rpm
• Trolley available for use with a gantry
• Upper limit safety device
• Self-braking motor
• Telescopic Frame can be extended from 720mm to 1120mm
• Includes TR225N Pendant (294-1-13)
110v (294-1-15) and 230v (294-1-16) versions available.
Available to buy as Hoist ONLY (without Scaffold Attachment and Pendant):
110v (294-1-11) and 230v (294-1-12).
Spec
Spec for Scaffold Hoist ONLY.
SKU |
|
294-1-15 |
Max Capacity |
kg |
200 |
Av. Full Load Lifting Speed |
m/min |
19 |
Max. Working Height |
m |
30 |
Steel Rope Dia. |
mm |
5 |
Rope Length |
m |
31 |
Electric Power Supply |
V /Hz |
110 / 50 Sph |
Motor Power Rate |
kW |
0.75 |
Motor Speed |
rpm |
1380 |
Running Current 230v (110v) |
A |
7.2 (14) |
Weight |
kg |
46 |
Dimensions w/l/h |
mm |
330/770/520 |
Packing Dimensions w/l/h |
mm |
350/820/500 |
