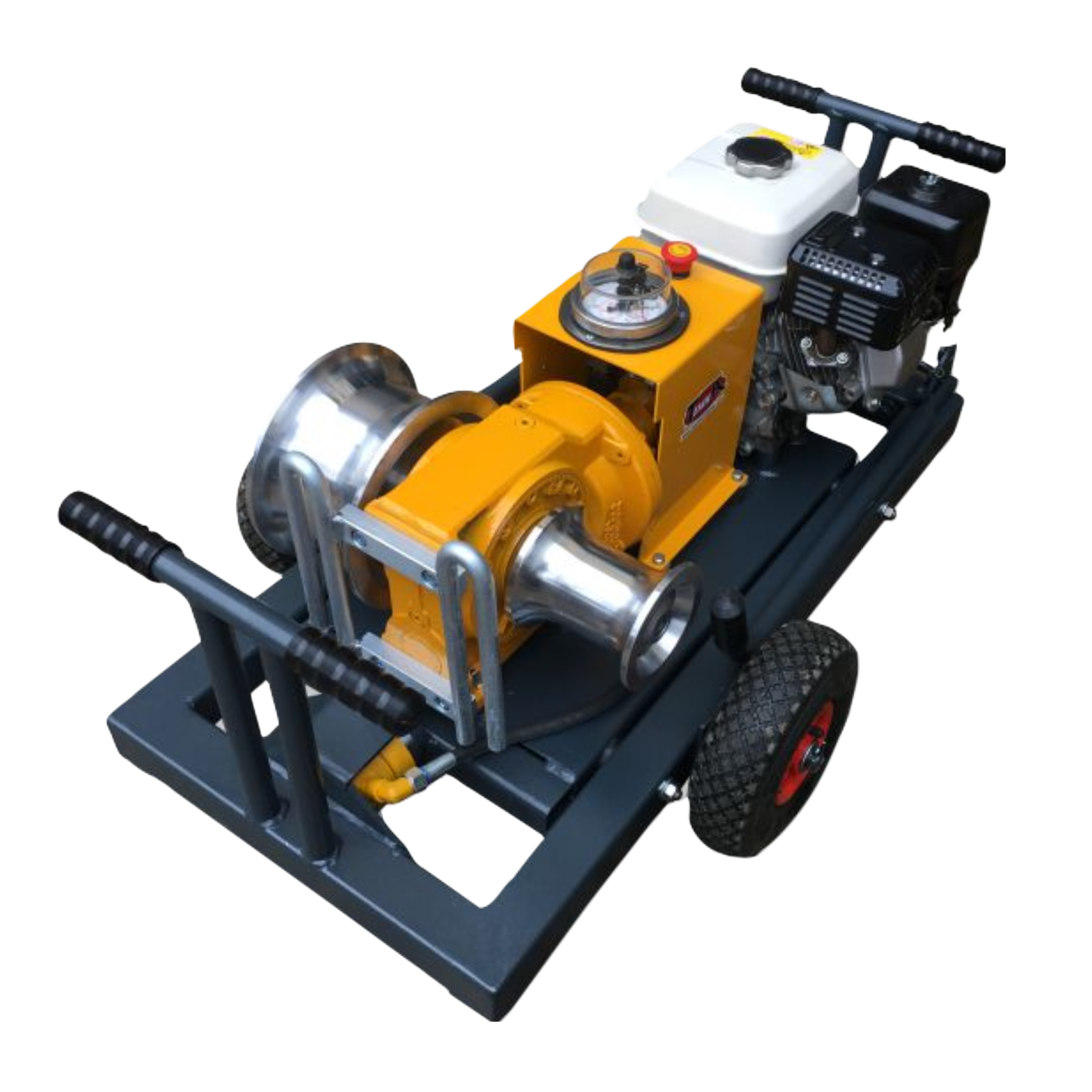

Industrial Cable Pulling Machine - with Petrol Engine - Max Payload: 1000kgs
This heavy duty but portable CABLE PULLING Machine is the ideal solution for installing long or heavy cables in challenging locations. It takes the strain off, making the job easier and more efficient for the operators. By reducing manpower and speeding up the process, it helps meet installation deadlines safely. Perfect for continuous cable pulling in tough applications, for example pulling cables through ducts.
- Easy transport and installation
- Suitable for cable tray
- Adjustable pulling force limiting device
- Adjustable speed options
- Ral 7015 static painted chassis
- ** Can be sued with our ORPTECH pulling ropes LINK
Spec
Technical Specifications
Product code
|
124-6-7
|
Pulling force (kN)
|
10
|
Pulling speed (m/dak)
|
12,5-25
|
Working procedure
|
Mechanic
|
Engine
|
Petrol
|
Length (mm)
|
1000
|
Width (mm)
|
500
|
Heigth (mm)
|
600
|
Weigth (kg)
|
115
|
Manufacture ref: PM.0202
