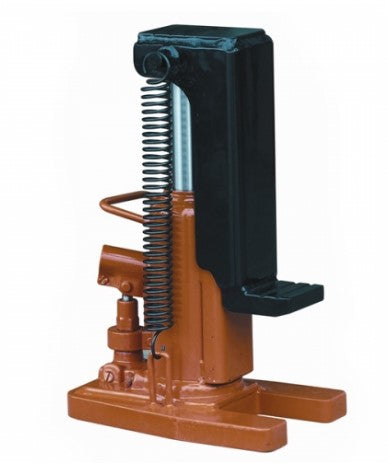

• Heavy-duty, industrial quality, dual purpose jack.
• Designed for lifting loads with very low minimum clearances (foot) or high clearances (head).
• Ideal for house moving, machinery installation and application at shipyard, bridge building or plant construction sites.
• Great companion tool for machinery type rollers.
• Easy operation in any direction on 5 and 10ton models.
• Safety valve for overload protection.
• Features spring assisted return and over-travel protection on 5 or 10 ton models.
• Ram is made of heat treated special steel to resist rust and assure strength.
• Electrically welded base and cylinders to assure strength.
• Not affected by temperature extremes.
• Pump handle included.
• Complies with ANSI/ASME B30.1 stamdards and CE safety standard.

2.0t Min Toe Height 16mm Stroke 112

5.0t Min Toe Height 24mm Stroke 120

10.0t Min Toe Height 28mm Stroke145
