Samurai - Winch Installation Plate - For Winches up to 20000lbs

Samurai - Winch Installation Plate - For Winches up to 20000lbs

SKU: 161-28-6

Skip to product information
1 of 5

Warrior Winches

Samurai - Winch Installation Plate - For Winches up to 20000lbs

Samurai - Winch Installation Plate - For Winches up to 20000lbs

SKU: 161-28-6

Read More
Regular price £132.00
Regular price RRP Sale price TODAY'S PRICE £132.00

In stock (2)

Tax included. Shipping calculated at checkout.

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £500
Click & Collect from BL9 6EY
View full details

Description

This heavy duty winch mounting plate is perfect for use with the Warrior Samurai 17500 electric winch, but is also designed to be used with other winches of up to 22,000lb, Please see below for fitment options.

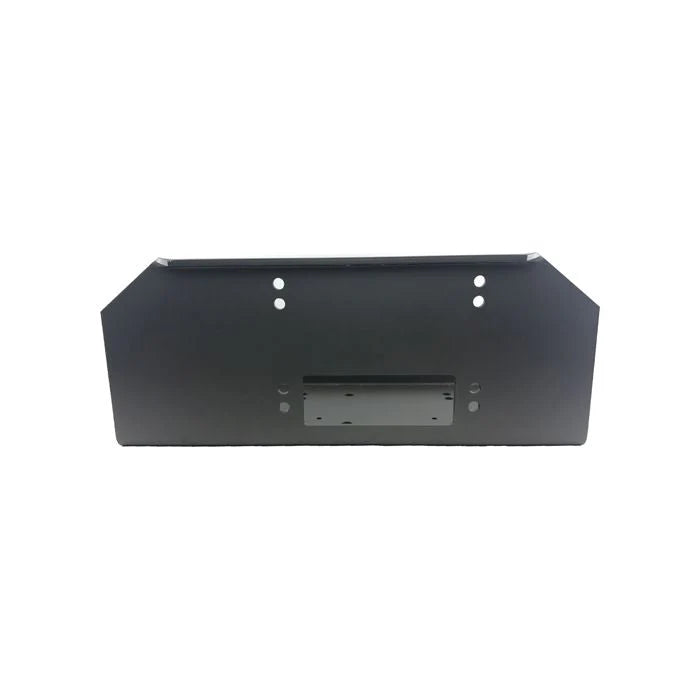

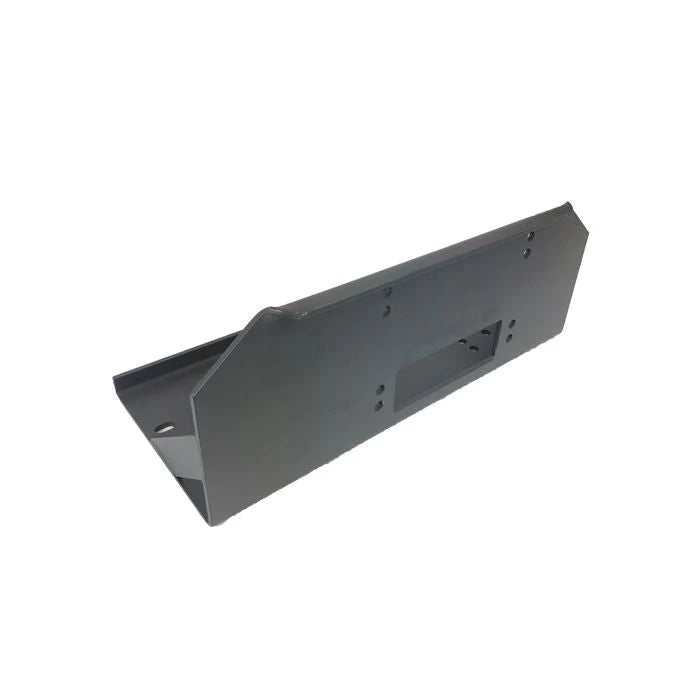

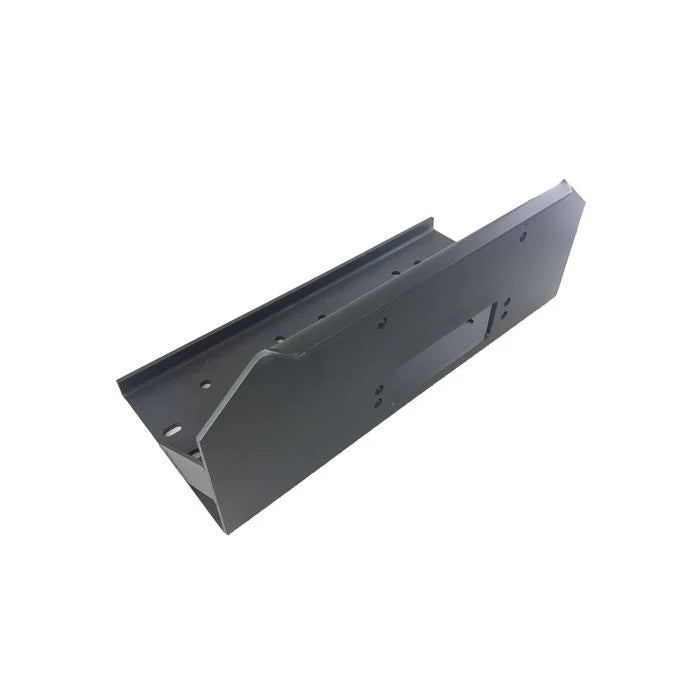

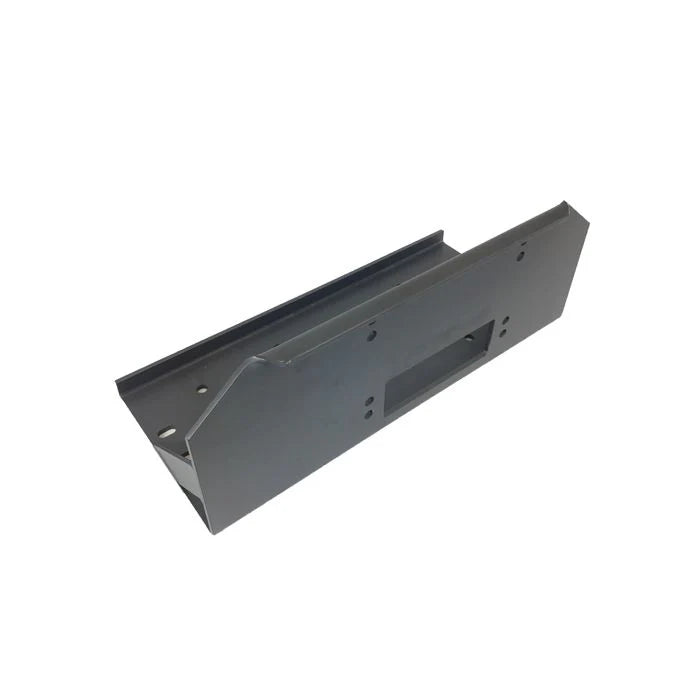

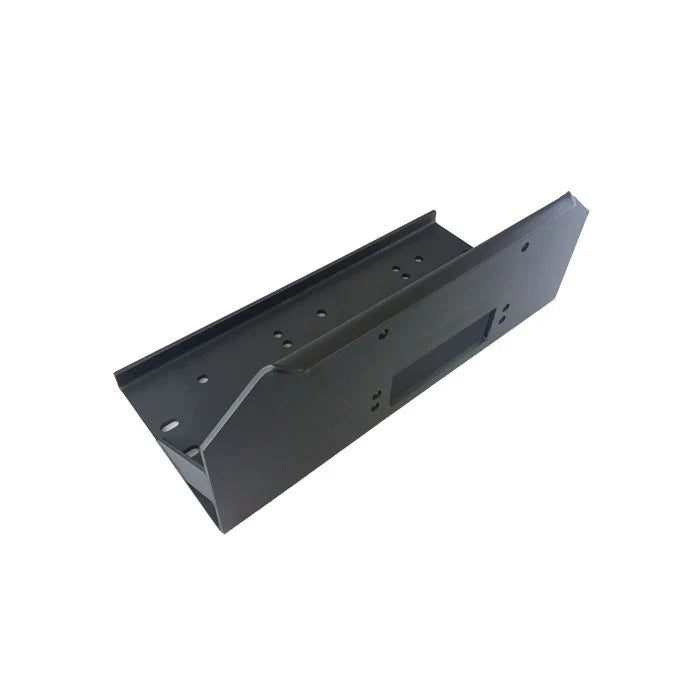

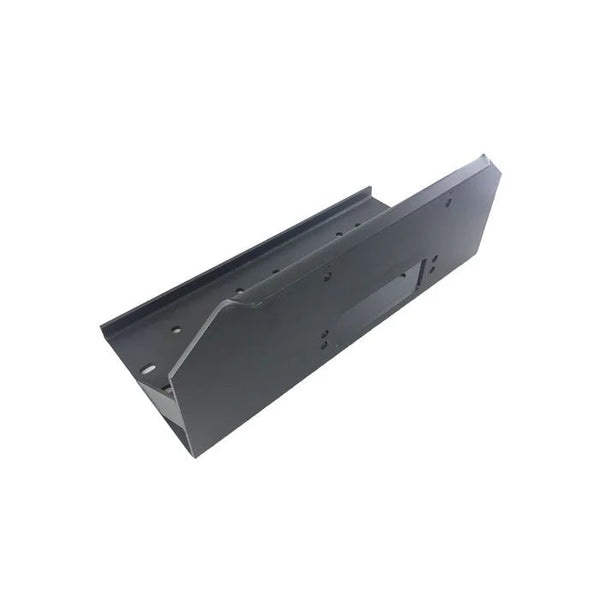

Folded metal 12v/24v Winch Installation plate with fairlead locator holes and mounting pattern holes. There is a return fold on the front leading edge of the plate which is drilled and slotted to mount the fairlead too along with holes for front mounted winches.

Finished in a durable black powder coat, it is predrilled for most standard winches and can be modified to suit your own requirements when installing.

This plate is designed for use with the following Samurai S17500 and S20000 12v or 24v Powered Pulling Winches:

Foot forward mounting for the Samurai 17500 model rated at 18,000lbs

Foot down mounting rated at 22,000lbs

            Please cross reference the mounting pattern of your winch with the above dimensions


            Compatible Winches

            Samurai 17500
            SKU Code Manufacture code
            Wire Rope 161-8-21 175SS12
            Wire Rope 161-8-22 175SS24
            Synthetic Rope 161-8-23 175SA12
            Synthetic Rope 161-8-24 175SA24
            Samurai 20000
            SKU Code Manufacture code
            Wire Rope 161-8-25 200SS12
            Wire Rope 161-8-26 200SS24
            Synthetic Rope 161-8-27 200SA12
            Synthetic Rope 161-8-28 200SA24
            Samurai 4000 EN
            SKU Code Manufacture code
            Wire Rope 161-12-3 40ENS12
            Wire Rope 161-12-4 40ENS24
            Samurai 5250 EN
            SKU Codes Manufacture code
            Wire Rope 161-12-5 52ENS12
            Wire Rope 161-12-6 52ENS24
            Samurai 6000 EN
            SKU Codes Manufacture code
            Wire Rope 161-12-7 60ENS12
            Wire Rope 161-12-8 60ENS24
