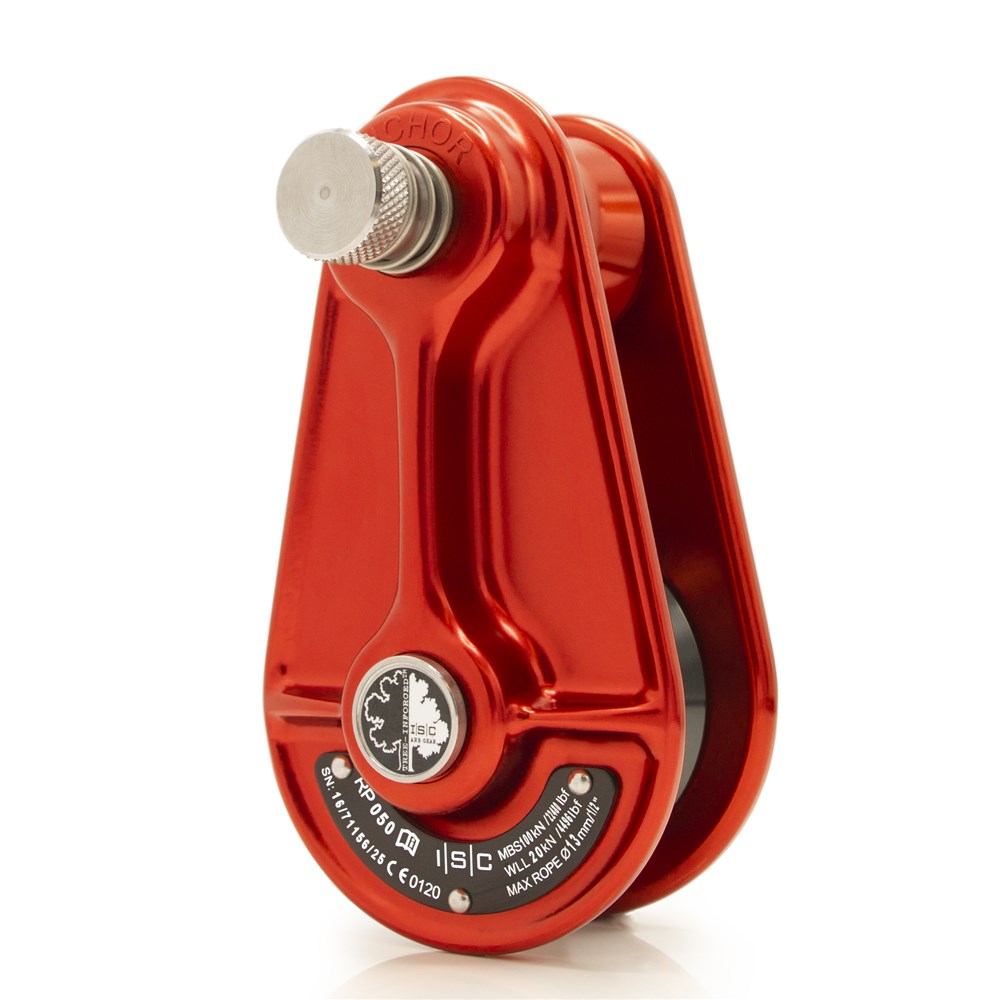

ISC Small Forged Rigging Pulley for 13mm Rope - 100kN
The small and medium versions are now manufactured using Hot Forged Technology, combined with high quality materials and components. These blocks are rope friendly, durable and extremely robust. These features combined give maximum security and strength, when the block is rigged as part of an impact system.
Apart from the aesthetically pleasing curves, the ISC impact pulley is designed to work (together with textiles) to absorb the huge forces which are created by the harsh dynamics of heavy Arborist work. The side plates are produced using the best quality hot forged Aluminium and the special manufacturing process allows these pulleys to offer a highly impressive strength to weight ratio.
Spec
Rope diameter range (mm): Max 13mm (1/2") Working Line. Max 19mm (3/4") Topping Strop
(WLL) Working Load Limit (kg): 2000
(WLL) Working Load Limit (lbs): 4400
Serial numberingAs standard
Pulley wheel colour: Grey
Anchor wheel colour: Red
Wheel material: Aluminium
Finish: Anodised
Colour: Red
Weight (grams): 1540
Approved Standards
CE Approved
Notes
Individually Serial Numbered
