Warrior Winches

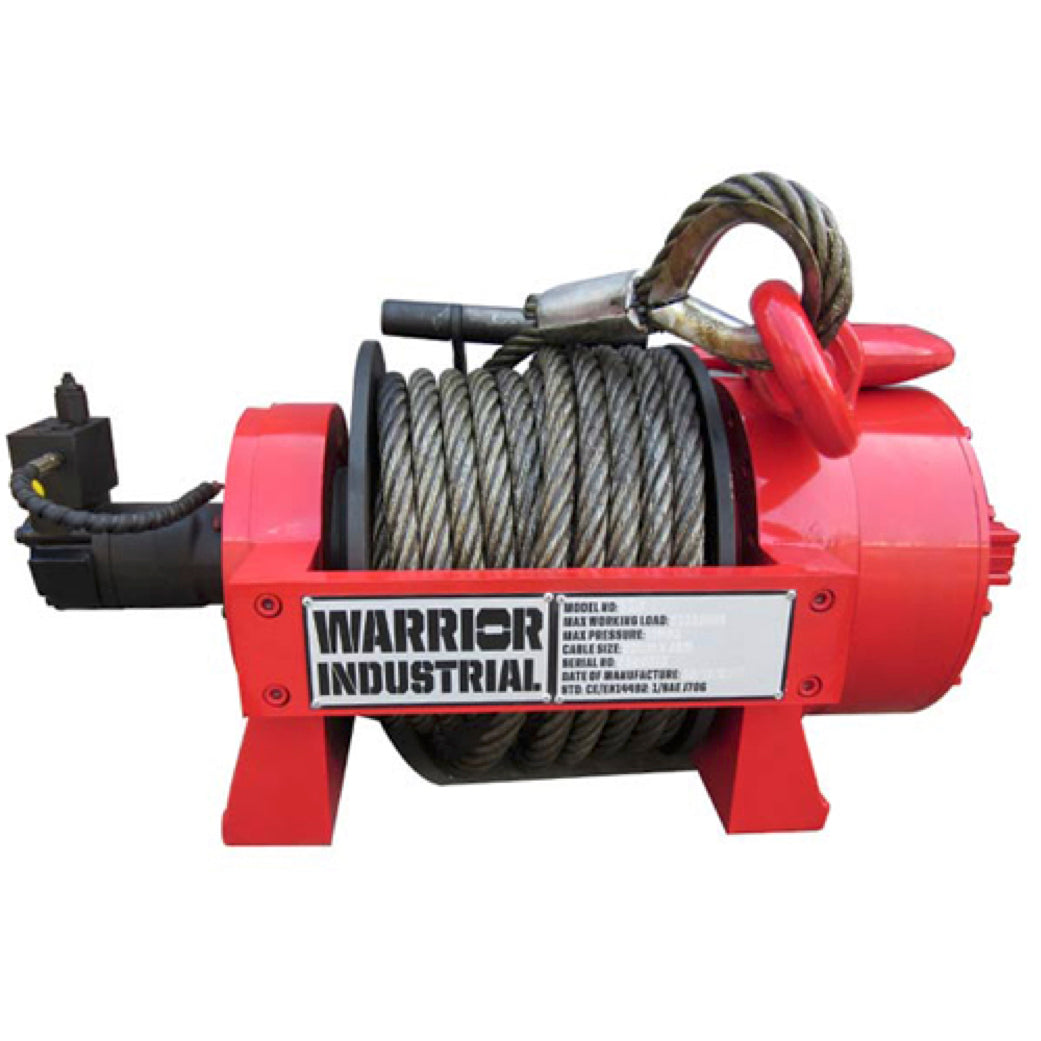

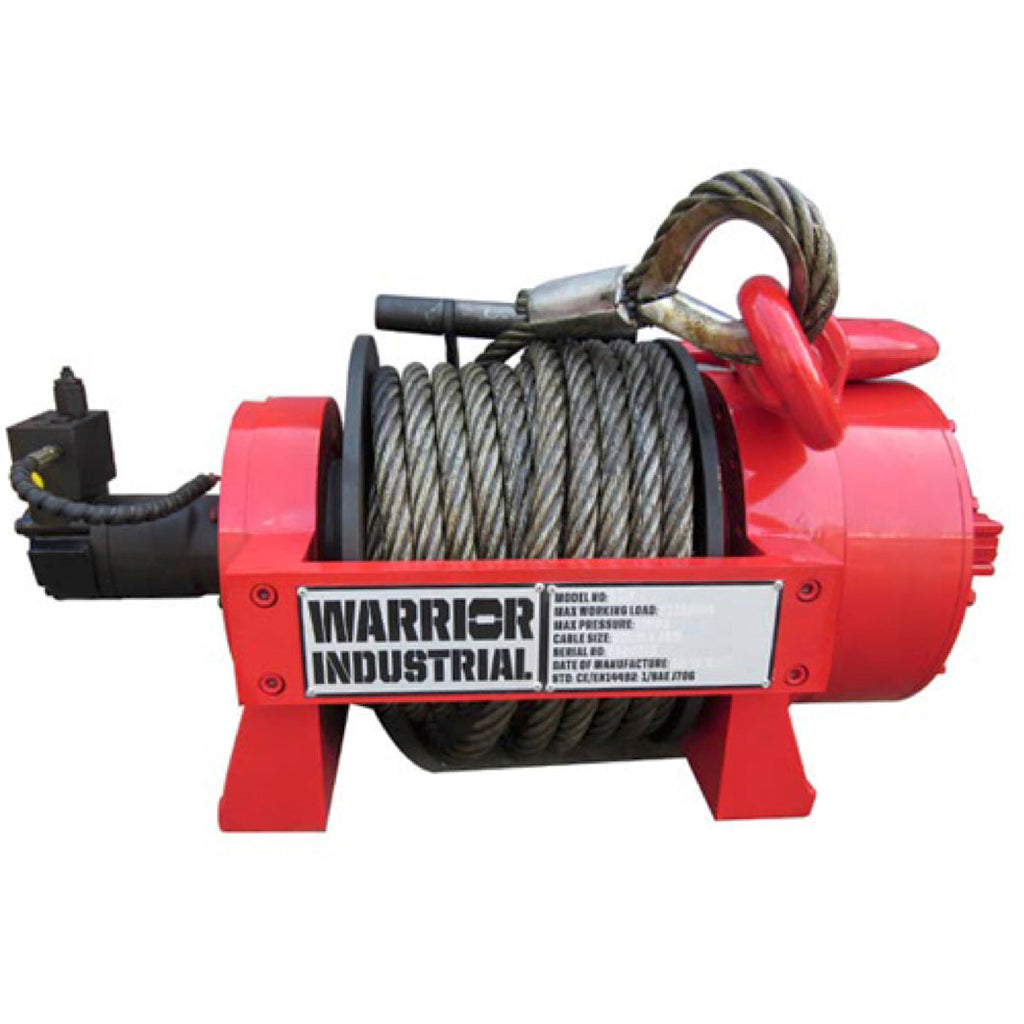

JP 25 Industrial Hydraulic Winch 55000 lbs (25 000 kg)

JP 25 Industrial Hydraulic Winch 55000 lbs (25 000 kg)

SKU: 161-15-5

Skip to product information
1 of 2

Warrior Winches

JP 25 Industrial Hydraulic Winch 55000 lbs (25 000 kg)

JP 25 Industrial Hydraulic Winch 55000 lbs (25 000 kg)

SKU: 161-15-5

Read More
Regular price £10,240.19
Regular price RRP Sale price TODAY'S PRICE £10,240.19

Out of stock (0)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

DESCRIPTION

Tough and compact, the JP series are heavy duty hydraulic winches designed and tested for toughest applications. Minimum rope to drum ratio of 10:1, multi disc frictional brake, balance valve and rope tensioner as standard. Manufactured to meet GJB82-86 National Military Standard

Outstanding Features
  • Full Float Heavy Duty Planetary Gearing
  • Multi Disc Friction Brake
  • High Torque Industrial Motor
  • Air and Manual Clutch Operation
  • Heavy Duty Rope Tensioner as Standard
  • Minimum 10:1 Rope/Drum Ratio
  • Balance Valve as Standard
ACCESSORIES INCLUDED

 JP 25 Industrial Hydraulic Winch Accessories Included from RiggingUK

Spec

Rated Line Pull 55000 lbs (25 000 kg)
Gearing 53:1
Braking Action Auto Hydraulic
Drum Size - Dia x L 280 x 360 mm
(11 x 14.1 in)
Cable - Dia x L 30mm x 50m
(1.18 in x 164 ft)
Dimensions 1301 x 770 x 545mm
(51.2 x 30.3 x 21.4 in)
Mounting Pattern 610 x 170/310mm
(24 x 6.7/12.2 in)
Weight kg 580kg (1278 lb)
Max Flow L/min 120 L/min
Max Pressure Mpa 180 Bar
Clutch Air Clutch
Certification CE Certified
