KITO - Grade 8 Master Link to BS-EN 1677-4

Name: KITO - Grade 8 Master Link to BS-EN 1677-4
Brand: KITO Weissenfels
SKU: 286-11-1
Price: 8.56 GBP
Availability: InStock

KITO Weissenfels SKU: 286-11-1

1 1

KITO - Grade 8 Master Link to BS-EN 1677-4

Grade 8 Master Link Alloy steel, quenched and tempered. Red painted finish. Conforms to BS EN 1677-4. Temperature range -40 °C to +400 °C (Reductions in... Read More

KITO Weissenfels SKU: 286-11-1

£8.56

Sale TODAY'S PRICE £8.56

In stock (2)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more kito weissenfels grade 8 chain slings and fittings

Description

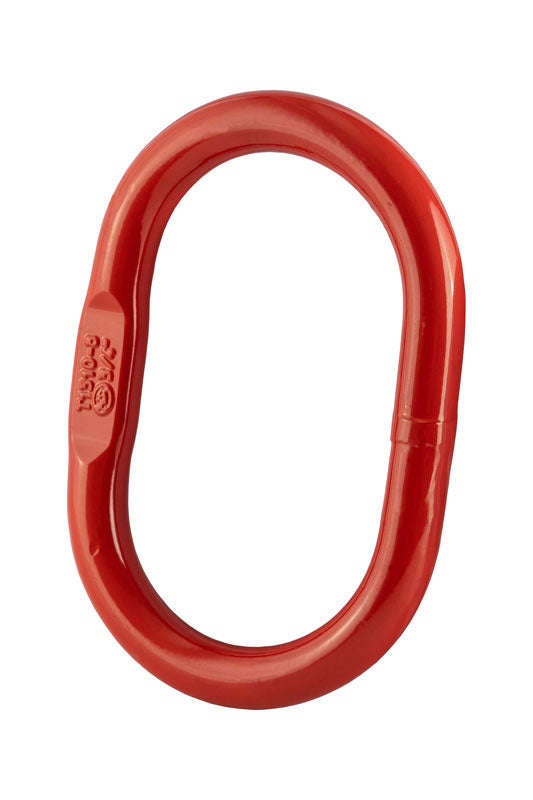

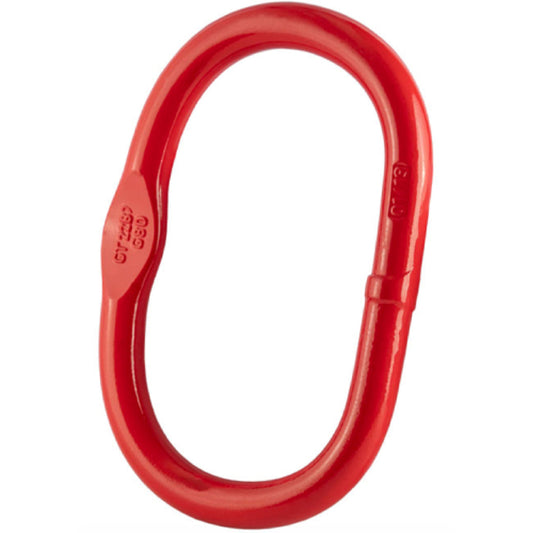

Grade 8 Master Link

Alloy steel, quenched and tempered.
Red painted finish.
Conforms to BS EN 1677-4.
Temperature range -40 °C to +400 °C (Reductions in W.L.L apply).
Suitable for use with grade 8 chains and wire/fibre rope slings.
Designed for use with 1 or 2 leg slings.
T ranges have large inside widths & lengths to allow for sling hardware and crane hooks.
Certification - Declaration of Conformity

Spec

SKU	D	L	W	W.L.L.	M.P.F.	M.B.F.	Weight
	mm	mm	mm	t	kN	kN	kgs
286-11-1	16	110	60	2.12	52	83.2	0.92
286-11-2	15	120	70	2.75	67.4	108	0.5
286-11-3	16	140	80	3.55	87	139	0.67
286-11-4	20	160	95	5.5	135	216	1.21
286-11-5	27	180	100	8	196	314	2.5
286-11-6	27	190	110	9.45	232	371	2.65
286-11-7	33	230	130	14.2	348	557	4.78
286-11-8	38	275	150	22.3	547	875	7.5
