Portable Winch

Locking Grab Hook with 3 Chain Links - For Portable Winch

Locking Grab Hook with 3 Chain Links - For Portable Winch

SKU: 167-15-5

Read More
Regular price £25.20
Regular price RRP Sale price TODAY'S PRICE £25.20

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

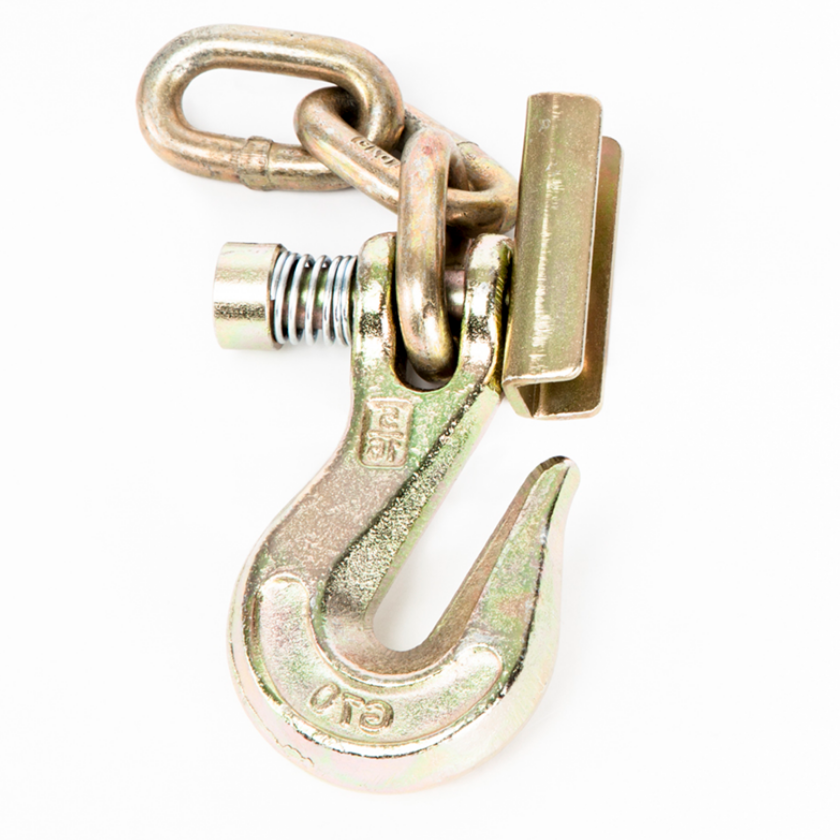

A small simple and practical hook. The lock avoids the chain sliding out of the hook when there is no tension in the rope.

The 7,9 mm (5/16") opening of the grab hook will accept either 6 mm (1/4") or 7.9 mm (5/16") chain.

Three 8 mm chain links are installed at the end to easily connect to a rope with a 13 mm diameter or less or to a karabiner.

Attach it to the rope using a bowline knot which can easily be untied after use and which will maintain up to 70% of the rope’s capacity.

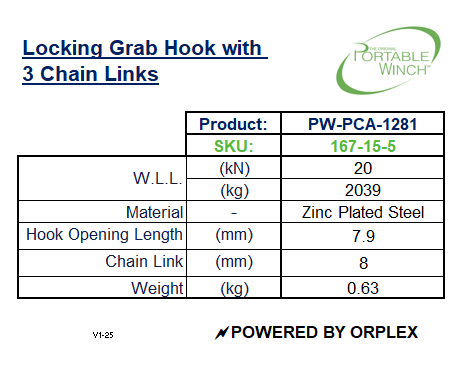

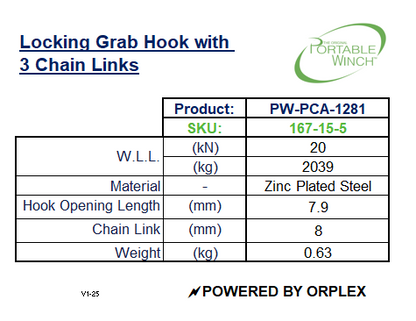

SPECIFICATIONS

Working Load Limit (metric) : 20 kN (2039 kg)
Material : Zinc plated steel

WEIGHT & DIMENSIONS

Weight (metric) : 0.63 kg

ADDITIONAL INFORMATION

Additional information : The NEWTON is the International System unit for force; it is equal to the amount of net force required to accelerate a mass of one kilogram at a rate of one meter per second squared. --- The WORKING LOAD LIMIT (WLL) is the maximum load which should not be exceeded under any condition. --- The MINIMUM BREAKING STRENGTH (MBS) is observed during a destructive test. You should divide it by an appropriate safety factor


Downloads

  Duct rod data sheetProduct data sheet
