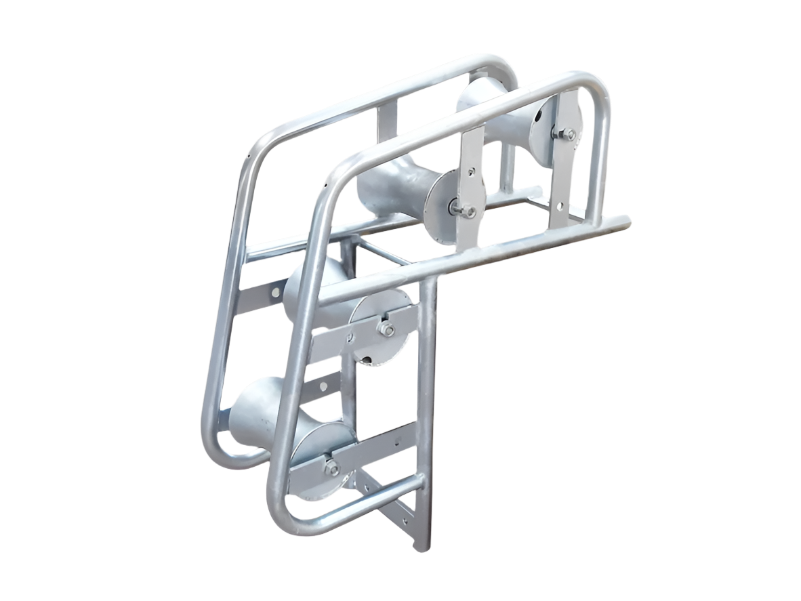

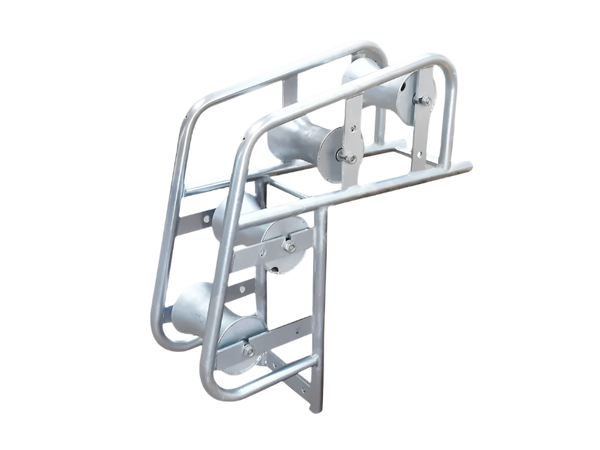

Manhole Cable Roller to suit up to 160mm diameter cables with a maximum load of 500kg.
- Suitable for cables up to 160mm diameter.
- Maximum payload of 500kg.
- Manufactured in high strength steel construction with galvanised finish.
- Water proof ball bearings which are protected against dirt.
Specification
Product code |
124-3-12 |
Payload (kg) |
500 |
Max. Cable diameter (mm) |
160 |
Weight - Max (kg) |
13,00 |
Length (mm) |
700 |
Width (mm) |
200 |
Height (mm) |
750 |
What is a manhole cable roller used for? A manhole cable roller is a tool designed to guide cables smoothly into or out of manholes and joint boxes. Typically positioned at the edge of a manhole or pit entrance, it reduces friction and makes SWA and other types of cable installation or removal more efficient.
The pipe inlet on this model ensures cables can be pulled safely and efficiently, reducing the risk of damage to the cable during the installation process
