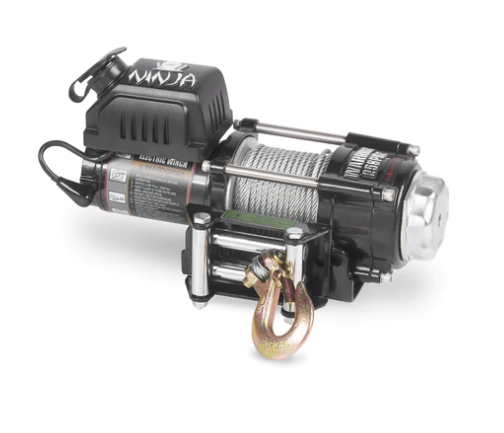

Recently upgraded, the Warrior Ninja 2500 is a levelled-up version of the extremely popular C2500A model. With no rivals on the market and no comparisons in strength, the Ninja is a truly outstanding offering thanks to its unique freespooling clutch system.

Built to last, the Ninja is packed with life-lengthening, strengthening features such as full steel planetary gearing, chip-resistant paint and a strengthened steel drum. Also protected for all weather, both the controller socket and contactors are watertight. Powered by a sealed high-power motor and allowing you the choice of steel or synthetic rope without any compromise on strength, you can rely on this heavy-duty winch.

With a line capacity of 2500lb or 1134kg, and a pull of 1.9m per minute at full load – you can get the job done with ease. Unbeatable on pulling power, you can also get a handlebar control as an optional extra for ATV application.

Watertight 4 Pin connection allows the use of 'Plug and Play' Wireless.

Link to 4 Pin Wireless Remote to work with this Vehicle Winch

12v Option order SKU : 161-7-5

24v Option order SKU :161-7-6

Standard Features:

• Line Capacity: 2,500lb (1134kg)
• Gearbox: Freespooling Clutch - Allows cable to be unwound manually
• Warranty: 12 Month return to base warranty

Outstanding Features

• Sealed High Power Motor
• Heavy Duty Watertight Contactors
• Full Steel Planetary Gearing
• Strengthened Steel Drum (suitable for Synthetic rope)
• Watertight Controller Socket
• Gloss Chip Resistant Paint

Accessories:

•  Wired Hand Control: 3m Wired Hand Control
• Wireless Control: Available as optional extra
• Mounting Plate: Included
• Mounting Bolts: Included for Standard installations
• 1.5m Heavy Duty Battery Cables (May need extending dependant on application)
• 2t Hook Type Pulley Block
•  Instruction Manual

Other Information:

• Dimensions: 335mm L x 113mm D x 165mm H
• Mounting Bolt Pattern: 79.5mm
• Approx. Shipping Weight: 7kg
• Line Pull- No Load: 3.2 m/min (45 Amps)
• Line Pull - Full Load:  1.9 m/min (60 Amps)


Note: For the majority of applications the synthetic rope  supplied with this winch will need to be removed from the drum, fed through the hawse fairlead once it is mounted in place and then the cable re-wound onto the drum.  A fixed hook will not (and should not) feed through the fairlead.

Spec

Manufacturer Codes: 25SPS24 & 25SPS12
