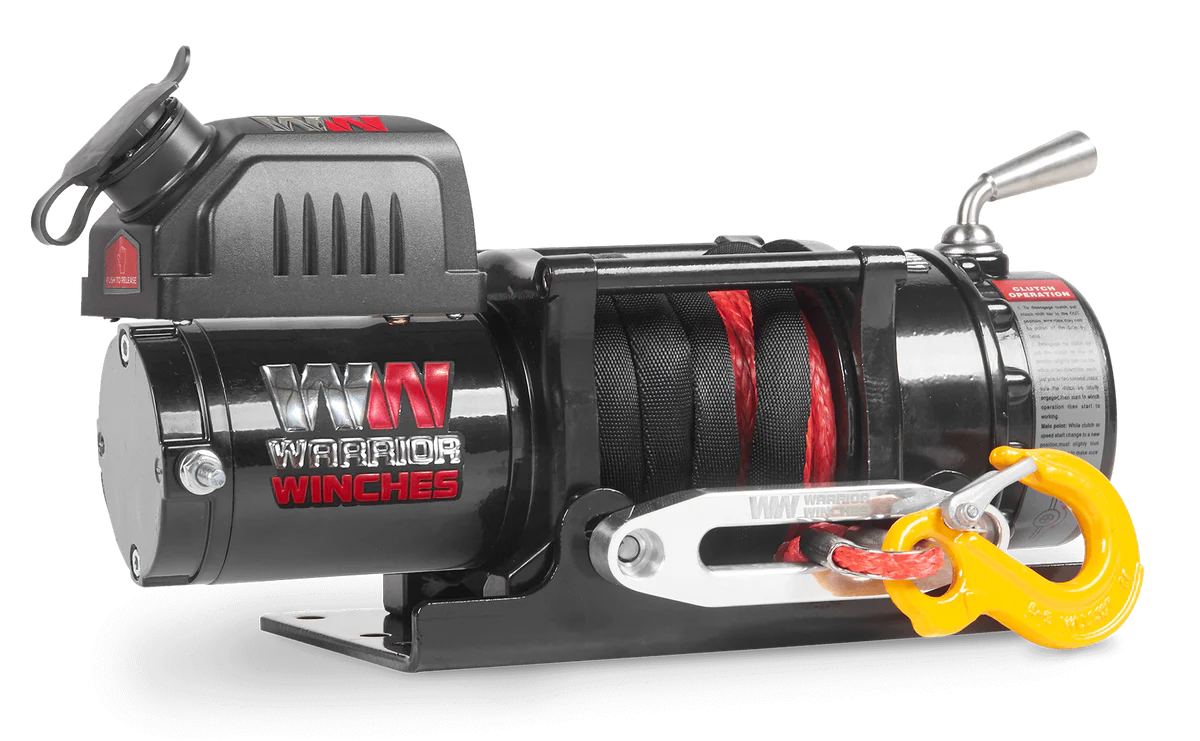

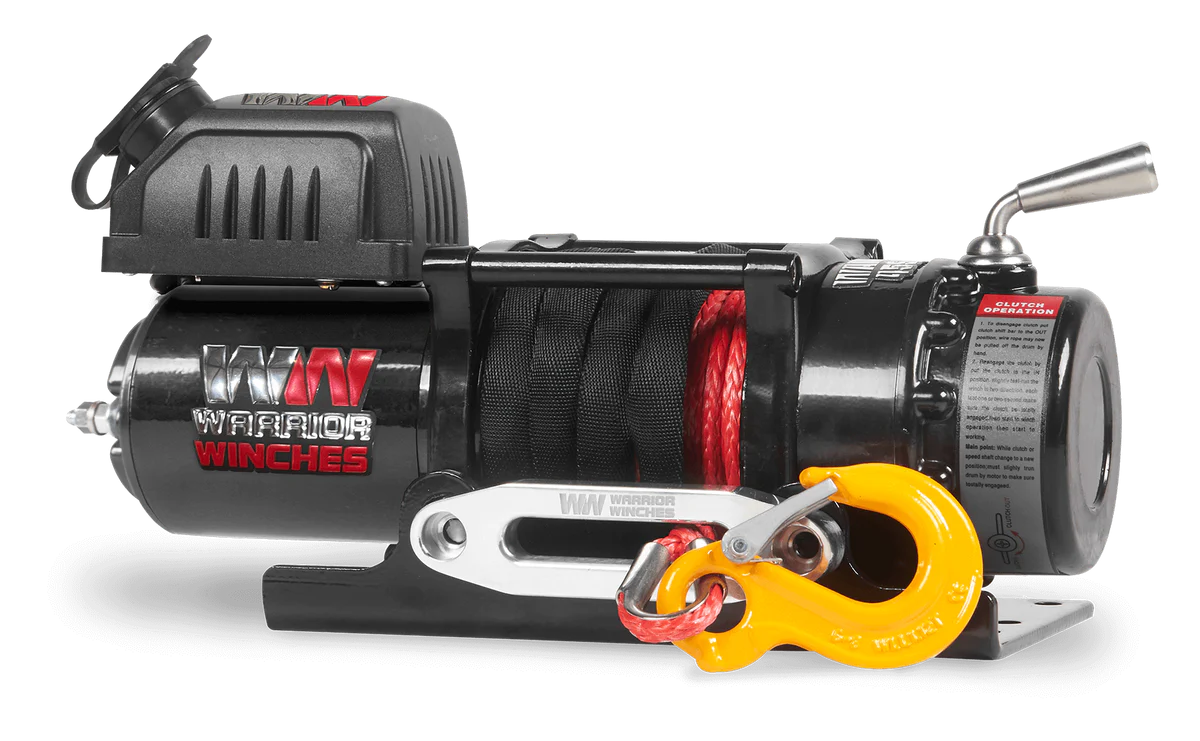

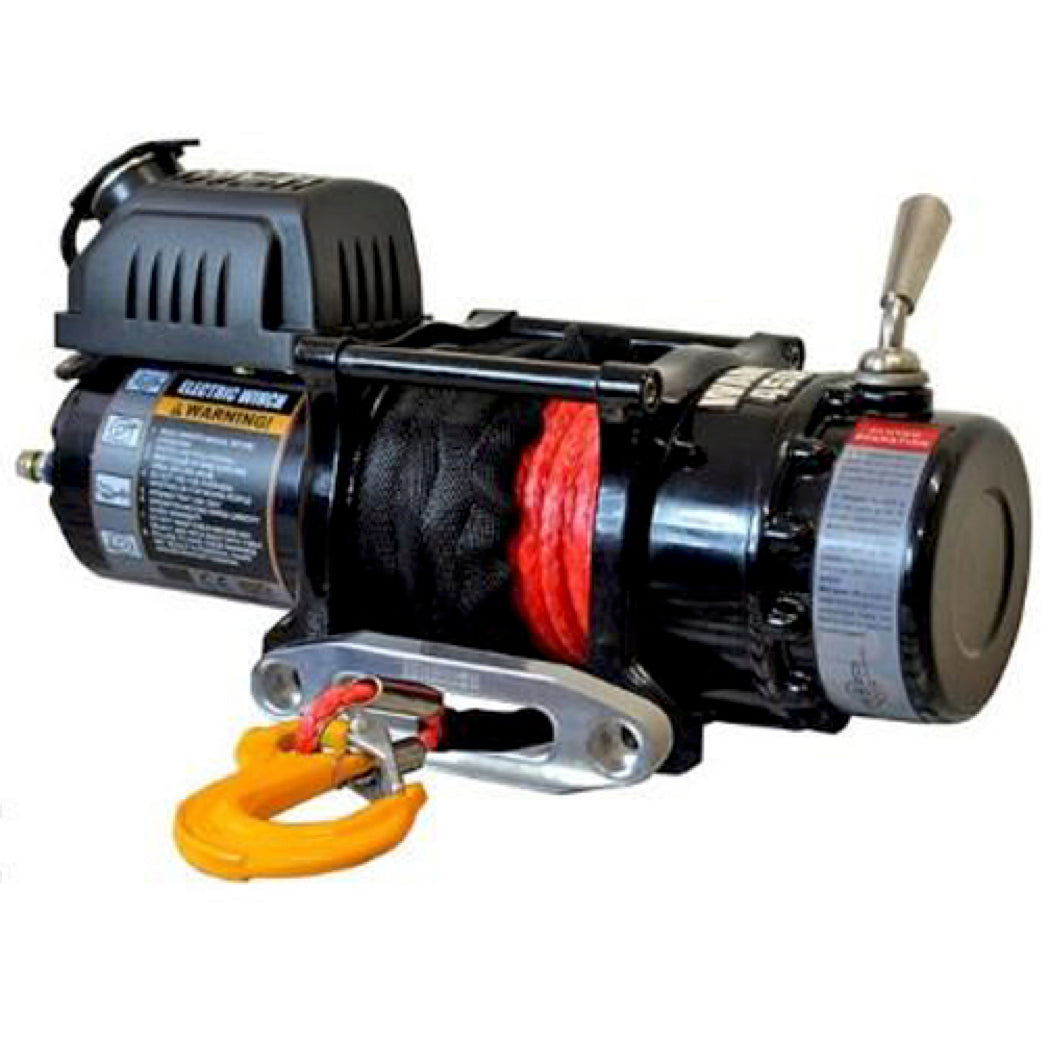

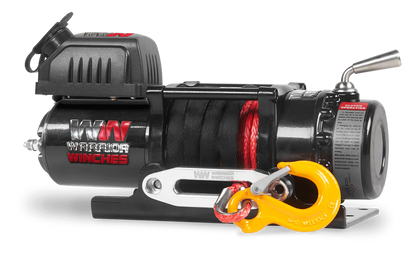

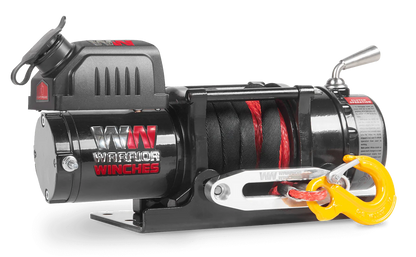

Introducing the upgraded Warrior Ninja 4500, formerly known as the C4500 EWX. This winch is unmatched in the market, boasting enhanced features like a heavy-duty clutch, 4-pin Air Socket, and redesigned solenoid control pack. Engineered for durability, the Ninja 4500 features a chip-resistant paint, reinforced steel drum, and smooth steel three-stage planetary gearing. It's weatherproof, with watertight controllers and contactors, and powered by a sealed high-power motor. With a 4500lb (2014kg) line capacity and 1.5m/min pull at full load, the Ninja 4500 delivers reliable, heavy-duty performance
12v Synthetic Rope Winch Option SKU: 161-7-15
24v Synthetic Rope Winch Option SKU: 161-7-16
Link to 4 Pin Wireless Remote to work with this Vehicle Winch
Standard Features:
Accessories:
Other Information:
Note: For the majority of applications the synthetic rope supplied with this winch will need to be removed from the drum, fed through the hawse fairlead once it is mounted in place and then the cable re-wound onto the drum. A fixed hook will not (and should not) feed through the fairlead.
Link to Ninja 4500 Floor Mount Adapter Plate
Outstanding Features

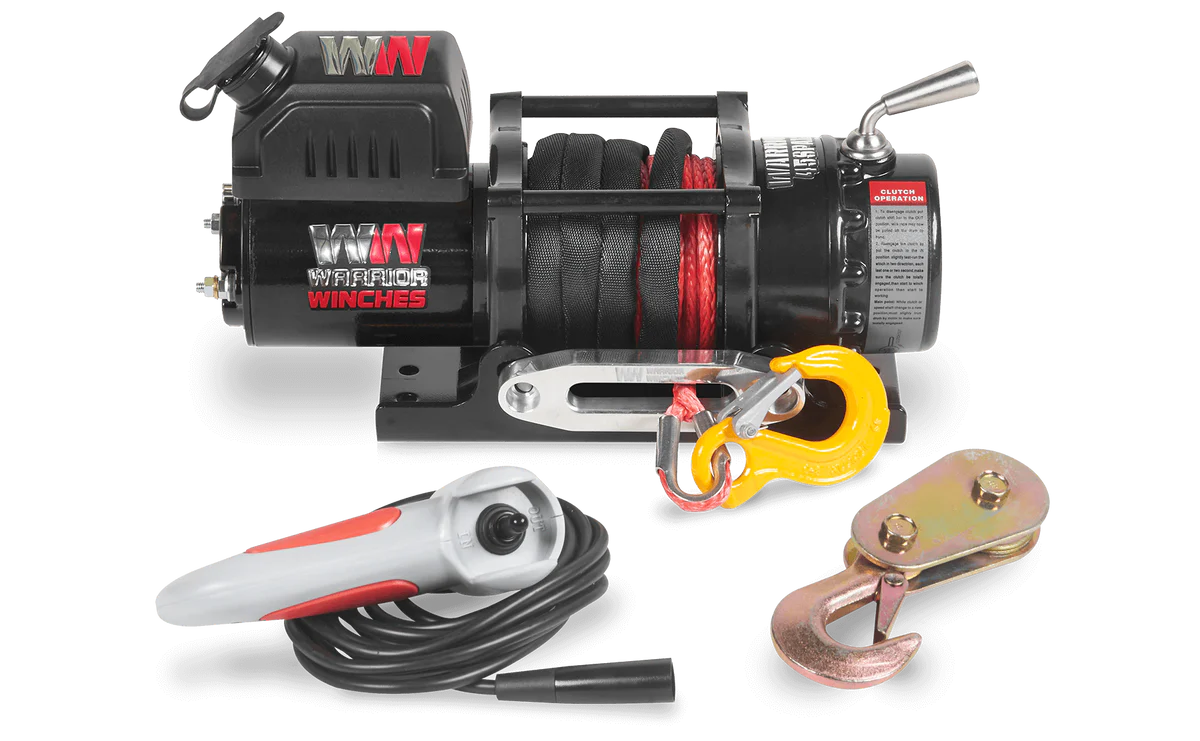

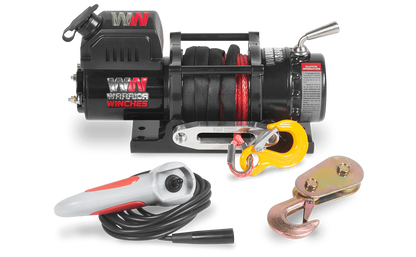

Accessories Included
| Rated Line Pull | 4500 lbs |
| Motor Type | 12V: Input: 3.2hp / 2.4 kW; Output: 1.3hp / 1.0 kW 24V: Input: 3.9hp / 2.9 kW; Output: 1.7hp / 1.3 kW |
| Gearing | 172:1 |
| Clutch | Manual |
| Braking Action | Auto in the drum |
| Drum Size (Dia x L) | 45 x 93 mm |
| Cable Material | Steel or Synthetic |
| Cable – Dia x L | Steel: 6.4mm x 14.5m OR Synth: 6mm x 15m |
| Mounting Pattern | 129 mm × 96 mm mm |

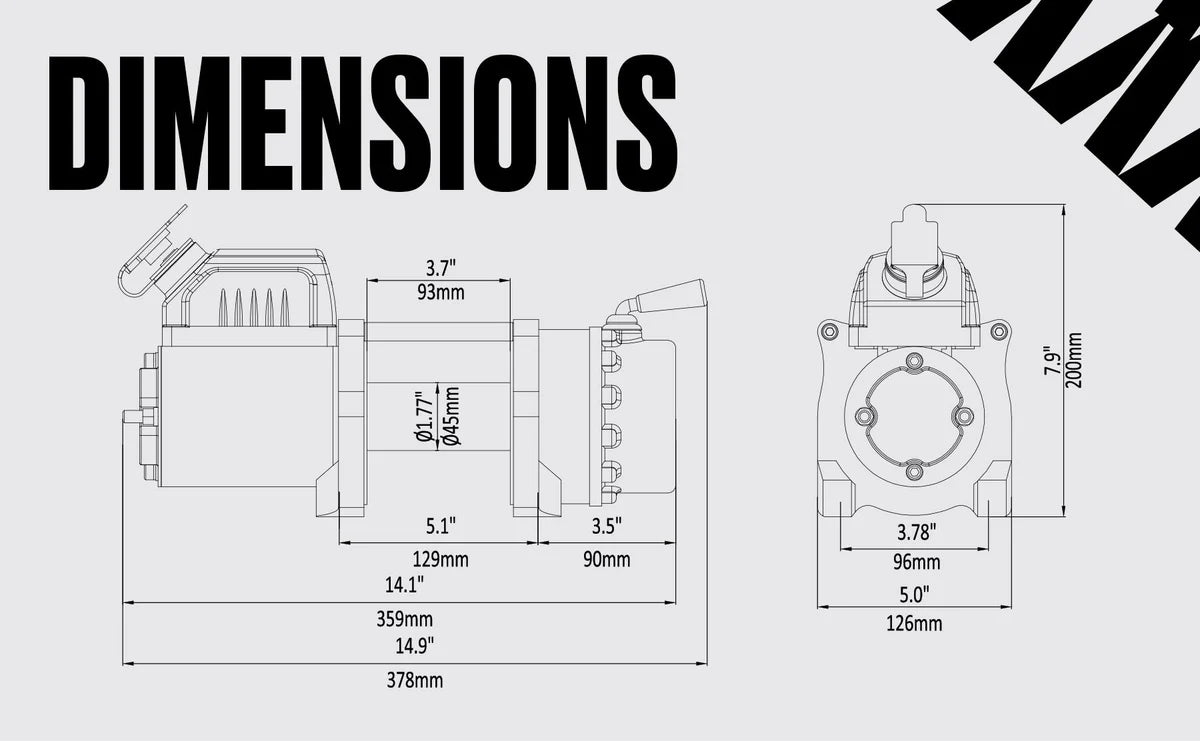

| Dimensions | 378 x 126 x 200 mm |
| Weight | Steel: 13kg Synthetic: 10.5kg |
| Warranty | 3 Years |
| Certification | CE, UKCA |
| Layer of Rope/Cable | Line Pull: lbs(kgs) |
|---|---|
| 1 | 4500 (2041) |
| 2 | 3642 (1652) |
| 3 | 3060 (1388) |
| 4 | 2638 (1196) |
| Line Pull lbs (kgs) |
Line Speed 12v ft/min (m/min) |
Amp Draw 12v |
Amp Draw 24v |
|---|---|---|---|
| 0 | 11.6 (3.6) | 20 | 15 |
| 1500 (680) | 9.2 (2.8) | 70 | 40 |
| 2500 (1134) | 7.8 (2.4) | 100 | 65 |
| 3500 (1587) | 6.6 (2.0) | 140 | 80 |
| 4500 (2041) | 4.9 (1.5) | 200 | 130 |
