Rope Pulley made of Stainless Steel with Plastic Bushes (Model No. 1300)

Name: Rope Pulley made of Stainless Steel with Plastic Bushes (Model No. 1300)
Brand: ORPTECH
SKU: 182-1300-75
Price: 124.80 GBP
Availability: OutOfStock

ORPTECH SKU: 182-1300-75

1 2

Rope Pulley made of Stainless Steel with Plastic Bushes (Model No. 1300)

Stainless Steel Sheaves with Plastic Bushing (Model No. 1300) Pulley / Sheave made of grade 1.4305 stainless steel, with maintenance-free plastic bushing (E10 tolerance bore). Range of pulley capacity from 100kg... Read More

ORPTECH SKU: 182-1300-75

£151.20

Sale TODAY'S PRICE £151.20

In stock (1)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more pulley with bushing

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

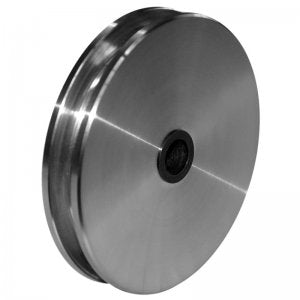

Stainless Steel Sheaves with Plastic Bushing (Model No. 1300)

Pulley / Sheave made of grade 1.4305 stainless steel, with maintenance-free plastic bushing (E10 tolerance bore).

Range of pulley capacity from 100kg up to 1500kg

Range of pulley diameter from 50mm up to 200mm

Please note, these products have a lead-time of around 3 to 4 weeks from order date if not in stock in our UK warehouse. Please email your enquiry to sales@rigginguk.co.uk.

Spec

SKU		182-1300-50	182-1300-75	182-1300-100	182-1300-125	182-1300-150	182-1300-200
Sheave External Ø	mm	50	75	100	125	150	200
Groove Base Ø	mm	38	59	80	100	120	166
Groove Radius	mm	2.7	3.7	4.8	6	7	8
Groove Depth	mm	6	8	10	12	15	17
Rim Width	mm	12	18	22	22	27	28
Bore for Bolt	mm	10	12	16	16	20	30
Hub Length	mm	14	20	24	24	30	32
Hub Ø	mm	18	20	24	24	28	42
Rope Ø max.	mm	5	7	9	11	13	15
Load Capacity (in kg).	kg	100	200	300	500	750	1500
Weight (in kg) approx.	kg	0.2	0.65	1.4	2.1	3.75	6.9
