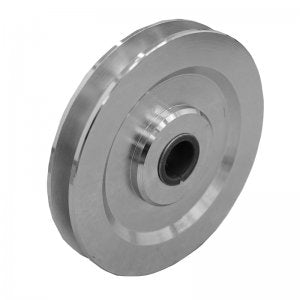

Steel Sheaves made of Cast Iron with Plain Bearing (Model No. 163)
Zinc-plated pulley with maintenance-free plain bearing, (DU Bush), compatible with side mounted pulley No. 162 and fixed rollers No. 164 and No. 174.
Range of pulley capacity from 100kg up to 4000kg
Range of pulley diameter from 50mm up to 300mm
Please note, these products have a lead-time of around 3 weeks from order date if not in stock
Spec
SKU
|
|
182-163-50 |
182-163-75 |
182-163-100 |
182-163-125 |
182-163-150 |
182-163-200 |
182-163-250 |
182-163-300 |
Sheave External Ø
|
mm
|
50
|
75
|
100
|
125 |
150 |
200 |
250 |
300 |
Groove Base Ø
|
mm
|
38 |
59 |
80 |
103 |
126 |
166 |
213 |
257 |
Groove Radius
|
mm
|
3.2
|
4.2 |
4.8
|
5.3
|
6.5 |
5.3 |
6.5 |
8.5 |
Groove Depth
|
mm
|
6 |
8 |
10 |
11 |
12 |
17 |
18.5 |
21.5 |
Rim Width
|
mm
|
12 |
18 |
21 |
21 |
22 |
32 |
36 |
40 |
Bore for Bolt
|
mm
|
10 |
12 |
16 |
16 |
20 |
30 |
40 |
50 |
Hub Length
|
mm
|
16 |
20 |
25 |
25 |
25 |
38 |
41 |
62 |
Hub Ø |
mm |
29 |
36 |
42 |
45 |
56 |
80 |
95 |
110 |
Rope Ø Max.
|
mm
|
6 |
8 |
9 |
10 |
12 |
10 |
12 |
16 |
Load Capacity (in kg).
|
kg
|
100 |
200 |
300 |
500 |
750 |
1500 |
2000 |
4000 |
Weight (in kg) approx.
|
kg
|
0.1 |
0.3 |
0.6 |
0.9 |
1.4 |
4.5 |
7.9 |
12.8 |
All dimensions in mm.
