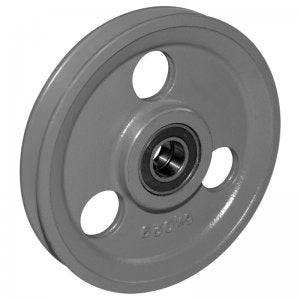

Wire Rope Sheaves made of Cast Iron with Sealed Ball Bearings (Model No. 169k)
Turned groove, with sealed ball bearings.
Range of pulley capacity from 250kg to 3200kg.
Range of pulley diameter from 120mm to 375mm.
Please note, these products have a lead-time of around 3 to 4 weeks from order date if not in stock in our warehouse
Specification
SKU
|
|
182-169K-120 |
182-169K-150 |
182-169K-190
|
182-169K-235 |
182-169K-280 |
182-169K-325 |
182-169K-375 |
Sheave External Ø
|
mm
|
120
|
150 |
190 |
235 |
280 |
325 |
375 |
Groove Base Ø
|
mm
|
100 |
125 |
160 |
200 |
240 |
280 |
320 |
Groove Radius
|
mm
|
2.5 |
3 |
4 |
5 |
6 |
7 |
8 |
Groove Depth
|
mm
|
10
|
12 |
15 |
17 |
20 |
22 |
27 |
Rim Width
|
mm
|
18
|
22 |
27 |
32 |
36 |
41 |
50 |
Bore for Bolt
|
mm
|
17
|
20 |
25
|
30 |
35
|
40
|
60
|
Hub Length
|
mm
|
35
|
41.5 |
34
|
37
|
62 |
70 |
48
|
Hub Ø |
mm |
55
|
60
|
74 |
85
|
100
|
120
|
150
|
Rope Ø Max.
|
mm
|
5 |
6 |
8 |
10 |
12 |
14 |
16 |
Ball Bearing Type |
|
6203-2RS |
6004-2RS |
6205-2RS |
6206-2RS |
6207-2RS |
6208-2RS |
6212-2RS |
Load Capacity (in kg).
|
kg
|
250
|
500
|
1000 |
1000
|
1500
|
2000
|
3200
|
Weight (in kg) approx.
|
kg
|
0.85 |
1.45 |
2.6 |
4.5 |
6.8 |
10.8 |
16.5 |
All dimensions in mm.
