Lightweight Rope Sheaves made of Cast Iron (Model No. 28)

Lightweight Rope Sheaves made of Cast Iron (Model No. 28)

SKU: 182-28-80

Read More
Regular price £12.72
Regular price RRP Sale price TODAY'S PRICE £12.72

Out of stock (0)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

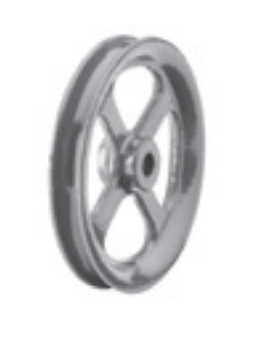

Lightweight Rope Sheaves made of Cast Iron (Model No. 28)

With narrow, deep, turned groove, drilled shaft hole, with straight spokes, compatible with fixed rollers No. 161.

Range of pulley capacity from 125kg to 150kg

Range of pulley diameter from 80mm to 130mm



Specification

SKU 182-28-80
182-28-100 182-28-130

 Sheave External Ø

mm

80

100

130

Groove Base Ø

mm

67 83 108

Groove Radius

mm

4.5 5.5
6.5

Groove Depth

mm

6.5 8.5 11

Rim Width

mm

13 16
19

Bore for Bolt

mm

8
10
12

Hub Length

mm

17
19
23

Hub Ø

mm

20
2
28

Rope Ø Max.

mm

8
10 12

Load Capacity (in kg).

kg

125
130
150

Weight (in kg) approx.

kg

0.18
0.3 0.48
