ONYX Grade 80 Black Finish Steel Quick Link Large Opening - OXQLE

Name: ONYX Grade 80 Black Finish Steel Quick Link Large Opening - OXQLE
Brand: GT ONYX
SKU: 286-1808-1
Price: 8.34 GBP
Availability: InStock

GT ONYX SKU: 286-1808-1

1 2

Onyx Carbon Steel Large Opening Quick Link – OXQLE Carbon Steel Black painted. Conforms to DIN 56927-A Minimum breaking load is 10 times the W.L.L. Marked with ONYX, CE, W.L.L,... Read More

£8.34

Sale TODAY'S PRICE £8.34

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

More From onyx grade 80 black finish components

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

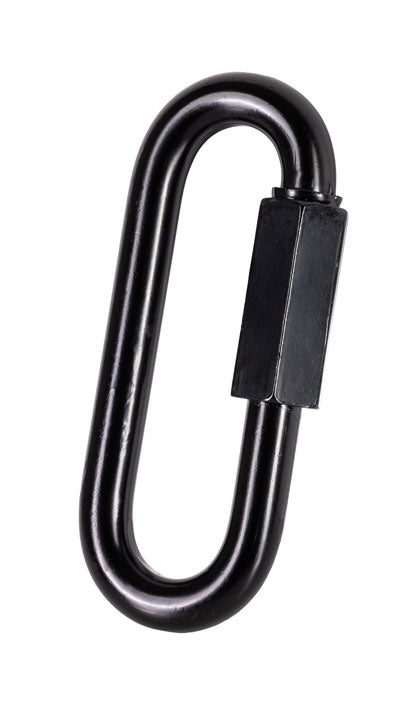

Onyx Carbon Steel Large Opening Quick Link – OXQLE

Carbon Steel
Black painted.
Conforms to DIN 56927-A
Minimum breaking load is 10 times the W.L.L.
Marked with ONYX, CE, W.L.L, product code and traceability code.

Supplied with Declaration of Conformity

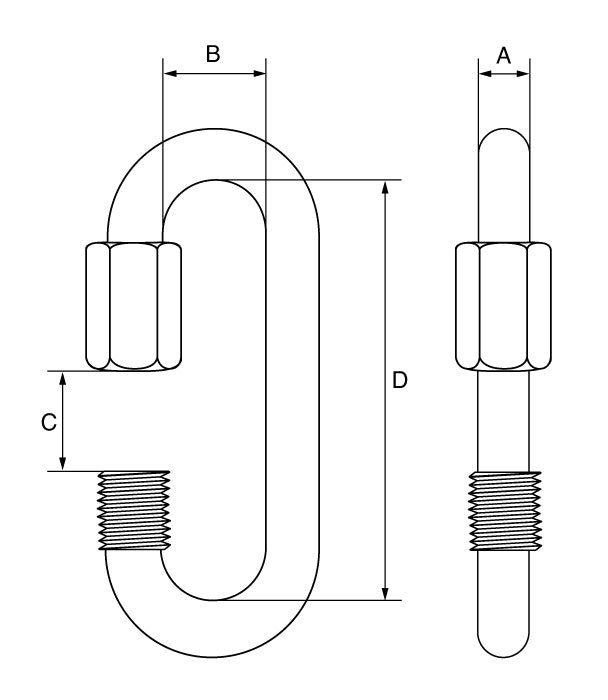

Dimensions

SKU	Product Code	W.L.L. (kgs)	A(mm)	B(mm)	C(mm)	D(mm)	Weight(kgs)	PDF
286-1808-1	OXQLE8	350	8	17.5	18	74	0.1
286-1808-2	OXQLE10	550	10	20.5	20	85	0.18
286-1808-3	OXQLE12	750	12	23.5	23	98	0.3
