ONYX Grade 80 Black Finish Swivel Lifting Point - OXSLP

Name: ONYX Grade 80 Black Finish Swivel Lifting Point - OXSLP
Brand: GT ONYX
SKU: 286-1809-1
Price: 24.16 GBP
Availability: InStock

GT ONYX SKU: 286-1809-1

1 1

Onyx Grade 80 Swivel Lifting Point with Ring – OXSLP Grade 80 alloy steel, quenched and tempered. Matte black painted. -20°C up to +200°C. M.B.L. equals 4 x W.L.L. Marked... Read More

£24.16

Sale TODAY'S PRICE £24.16

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

More From onyx grade 80 black finish components

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

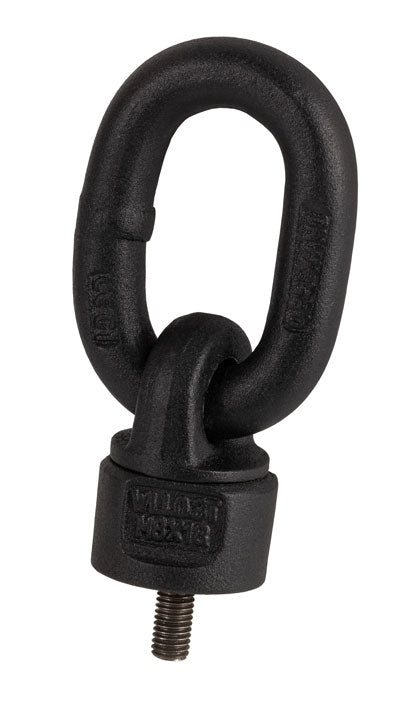

Onyx Grade 80 Swivel Lifting Point with Ring – OXSLP

Grade 80 alloy steel, quenched and tempered.
Matte black painted.
-20°C up to +200°C.
M.B.L. equals 4 x W.L.L.
Marked with ONYX, CE, material grade, size and traceability code.
Not suitable for rotation under load.
Supplied with Declaration of Conformity

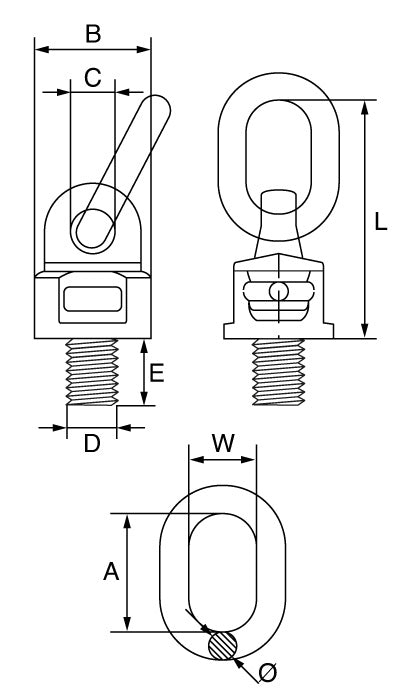

Dimensions

SKU	Product Code	W.L.L. 0° (t)	W.L.L. 90° (t)	D&E(mm)	A(mm)	B(mm)	C(mm)	L(mm)	Ø(mm)	W(mm)	Torque(Nm)	Weight(kgs)	PDF
286-1809-1	OXSLP818	0.6	0.3	M8 X 18	55	36	16.5	97	14	30	10-15	0.45
286-1809-2	OXSLP1018	1	0.5	M10 X 18	55	36	16.5	97	14	30	10-15	0.45
286-1809-3	OXSLP1090	1	0.5	M10 X 90	55	36	16.5	97	14	30	10-15	0.5
