Portable Winch

PCH2000 Petrol | 1150kg Pulling & 450kg Lifting Capstan

Name: PCH2000 Petrol | 1150kg Pulling & 450kg Lifting Capstan
Brand: Portable Winch
SKU: 167-3-2
Price: 4558.80 GBP
Availability: InStock

PCH2000 Petrol | 1150kg Pulling & 450kg Lifting Capstan

SKU: 167-3-2

PCH2000 Petrol | 1150kg Pulling & 450kg Lifting Capstan

SKU: 167-3-2

Description

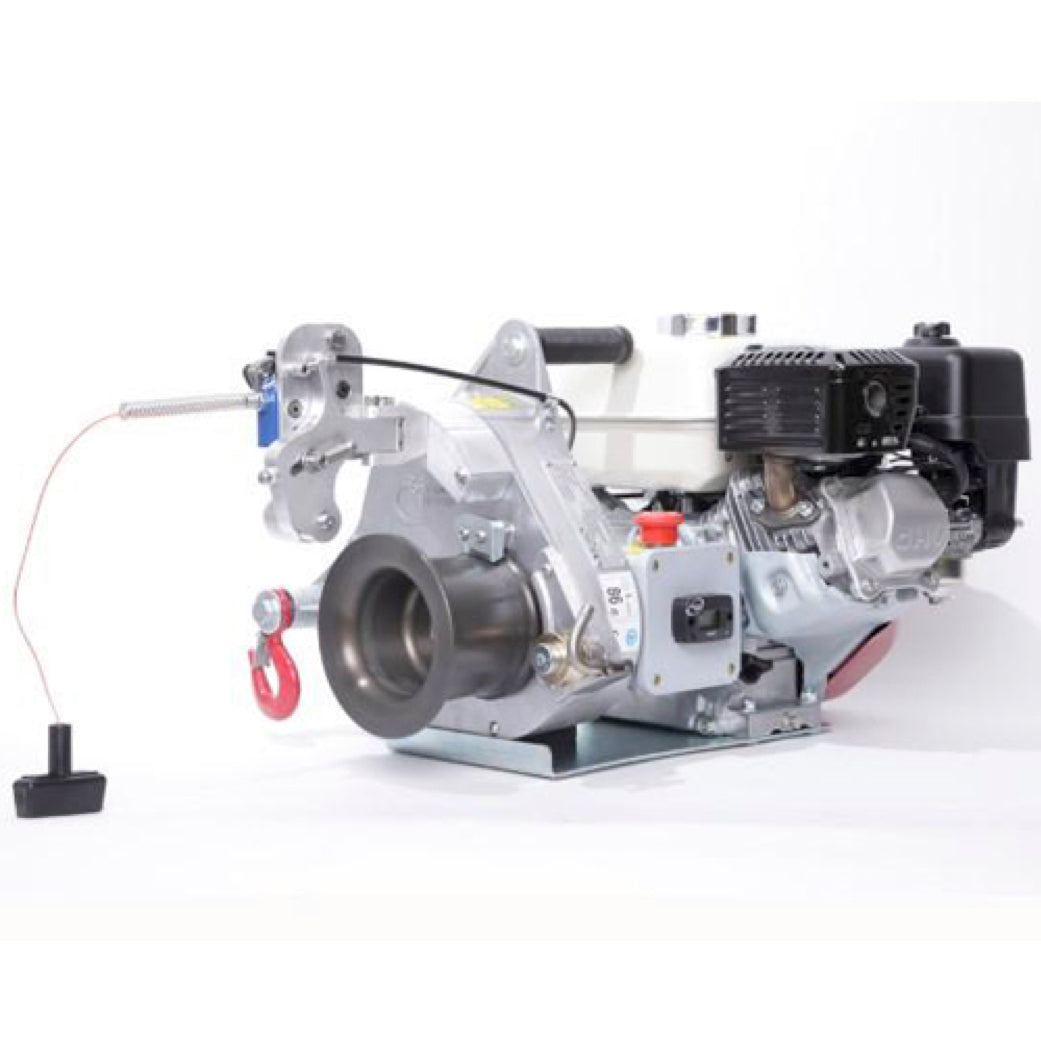

PCH2000 Petrol Winch Pull/Lift Version

For maximum lifting capacity!

The PCH2000 is equipped with a Honda GX-160 cc engine which offers superior performances in a wide variety of tasks such as erecting towers, lifting antennas, replacing insulators, cable pulling and other arduous tasks.

This winch can lift a load of up to 450 kg with a single line and a pulley system doubles the strength to 900 kg.

The integrated rope grabbing system allows the operator to work safely and the start/stop mechanism means he can focus on the task required.

This system can be used to lift or lower a load.

A wide of accessories are available to simplify the installation process and anchor the winch at various anchoring points such as a vehicle, a post, a pylon and more.

Find out more by downloading the user manual.

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty

Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !

GTIN / EAN13: 690581001130

PCH2000 Petrol Winch Pull/Lift Version Ref 167-3-2

For maximum lifting capacity!

The PCH2000 is equipped with a Honda GX-160 cc engine which offers superior performances in a wide variety of tasks such as erecting towers, lifting antennas, replacing insulators, cable pulling and other arduous tasks.

This winch can lift a load of up to 450 kg with a single line and a pulley system doubles the strength to 900 kg.

The integrated rope grabbing system allows the operator to work safely and the start/stop mechanism means he can focus on the task required.

This system can be used to lift or lower a load.

A wide of accessories are available to simplify the installation process and anchor the winch at various anchoring points such as a vehicle, a post, a pylon and more.

Find out more by downloading the user manual.

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty

Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !

GTIN / EAN13: 690581006197

Spec

PCH1000 Petrol Winch Pull/Lift Version Ref: 167-3-1

Manufacturer	PORTABLE WINCH
Max Pull Capacity	775kg
Max Lifting Capacity	250kg
Installed Capstan Size	57mm (Optional 85mm Drum Available - Reduces Load Capacity)
Speed with Installed Capstan	12 m/min
Rope Size	Min 12mm \| Max 13mm \| Ideal 12mm
Engine/Motor	Honda 4-stroke GXH-50 cc
Gear Ratio	110:1
Dry Weight	19kg
GTIN / EAN13	690581001130

PCH2000 Petrol Winch Pull/Lift Version Ref: 167-3-2

Manufacturer	PORTABLE WINCH
Max Pull Capacity	1150kg
Max Lifting Capacity	450kg
Installed Capstan Size	108mm
Speed with Installed Capstan	20 m/min
Rope Size (Diameter)	Min 12mm \| Max 13mm \| Ideal 12mm
Engine/Motor	Honda GX-160 cc
Gear Ratio	53:1
Dry Weight	34.5kg
GTIN / EAN13	690581006197

Downloads

User Guide
