Pfaff HX-D Mobile Scissor Lift Table – Double Scissor Elevating Platform

Pfaff-silberblau SKU: 601-61-1

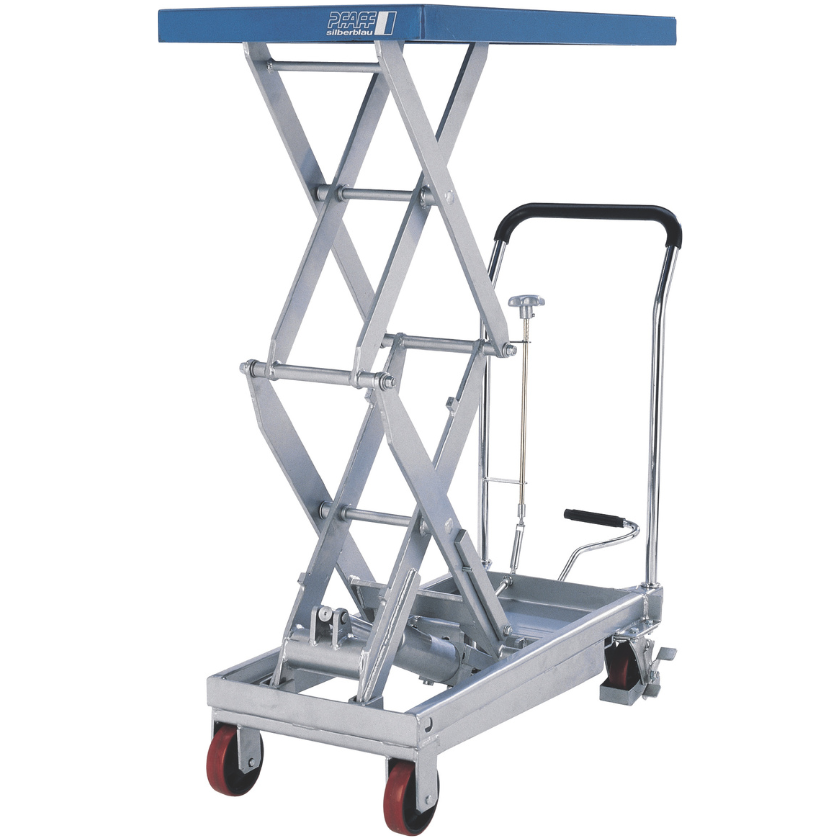

  • Pfaff HX-D Mobile Double Scissor Elevating Platform

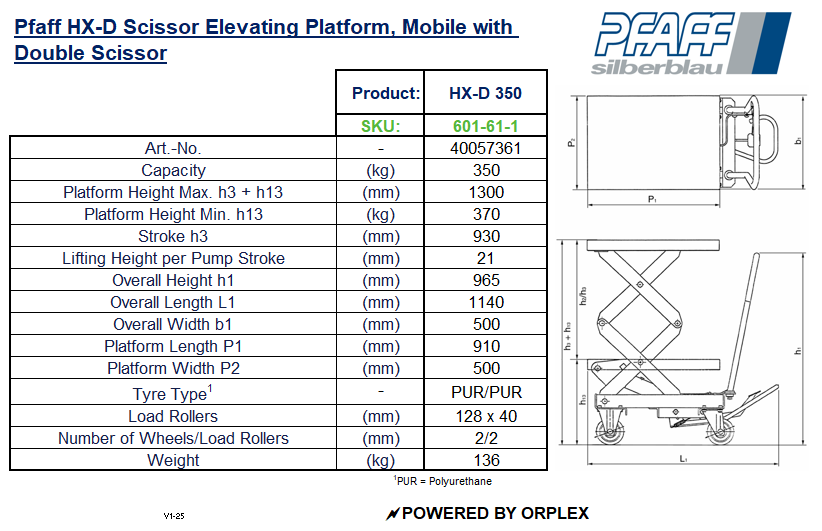

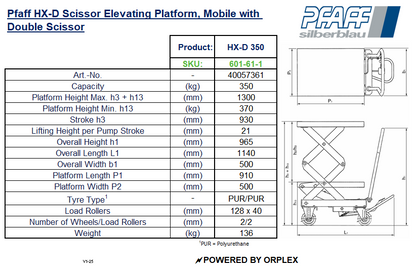

  • Pfaff HX-D Mobile Double Scissor Elevating Platform Table o Specification and Dimensions with Diagram

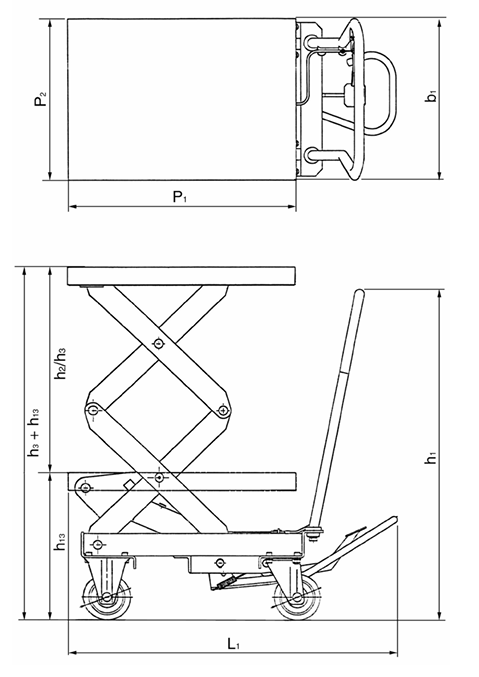

  • Technical Drawing of Pfaff HF-X Mobile Double Scissor Lift Platform with dimensions labelled
1 3

Pfaff HX-D Mobile Scissor Lift Table – Double Scissor Elevating Platform

Pfaff HX-D Mobile Double Scissor Elevating Platform - 350kg Capacity, 1300mm Max Platform Height For the independent lifting and supplying of light up to medium loads within a warehouse environment. Features Hydraulic lifting... Read More

Pfaff-silberblau SKU: 601-61-1

£918.16
Sale TODAY'S PRICE £918.16

In stock

Tax included. Shipping calculated at checkout.
View more pfaff silberblau lifting tables
More From pfaff silberblau gmbh
View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

Pfaff HX-D Mobile Double Scissor Elevating Platform - 350kg Capacity, 1300mm Max Platform Height

For the independent lifting and supplying of light up to medium loads within a warehouse environment.

Features

  • Hydraulic lifting of the load with foot pedal.
  • Lowering speed can be finely metered for sensitive lowering of the load.
  • Ergonomic handlebar for easy operation.
  • Steering roller with brake for safe parking of the hand stacker.
  • Robust construction with hard chromium plated piston and pressure relief valve.
  • According to DIN EN 1570-1, DIN EN ISO 3691-5.
