Pfaff ZWW 10000kg Rack & Pinion Jack – 700mm Lift

Pfaff ZWW 10000kg Rack & Pinion Jack – 700mm Lift

SKU: 601-28-4

Read More
Regular price £1,607.33
Regular price RRP Sale price TODAY'S PRICE £1,607.33

Out of stock (0)

Tax included. Shipping calculated at checkout.

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250
Click & Collect from BL9 6EY
View full details

Description

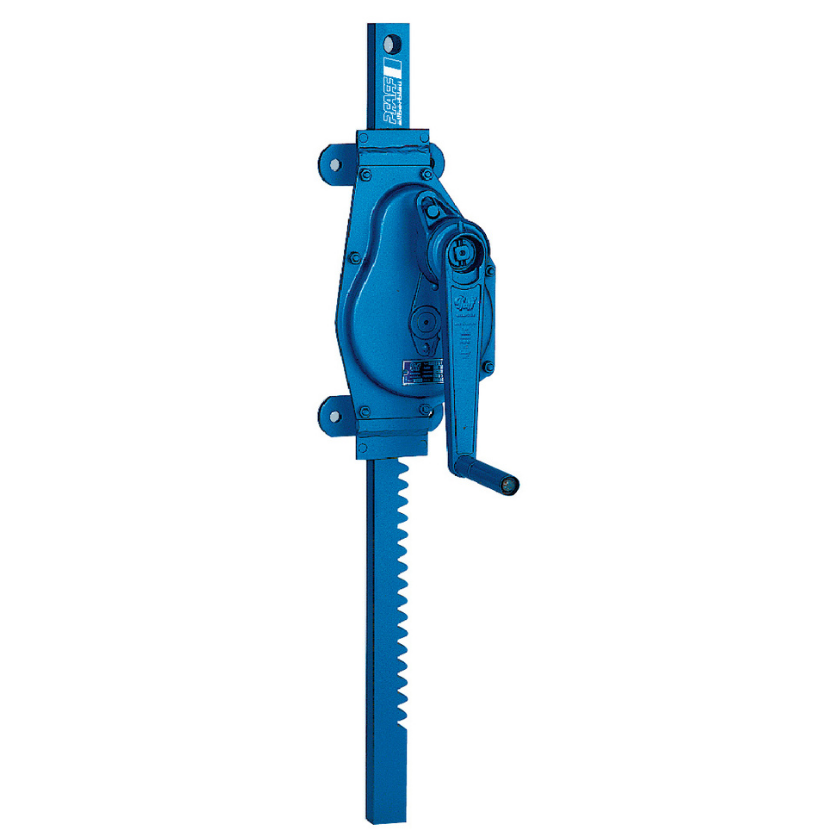

Pfaff ZWW 10000/700 Rack & Pinion Jack with Siku – 10000kg Capacity, 700mm Lift

Wall-mounted rack and pinion jacks are used for lifting, lowering, pulling and pushing of loads.

Features

  • Robust steel design with precisely machined worm and spur gears for smooth and easy manual operation.
  • Solid steel rack with additional bore hole for fastening of the load.
  • Low wear owing to hardened gearing parts and precisely machined teething.
  • Up to 1200 kg lifting load for pushing or pulling loads are equal.
  • At standard tensile load from 1500 - 10000 kg.  Compressive load possible on request.
  • Rigid wall mounting.
  • Siku Crank Handle

Optional

  • Improved corrosion protection owing to zinc-plating or special coating of rack (from capacity 1500kg).
  • Different rack length on request.
  • Symmetrical toothing for model ZWW on request.

Atex Version Available

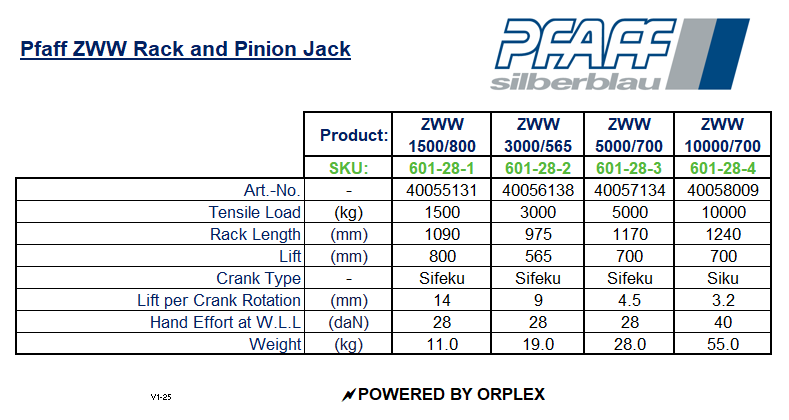

Specification

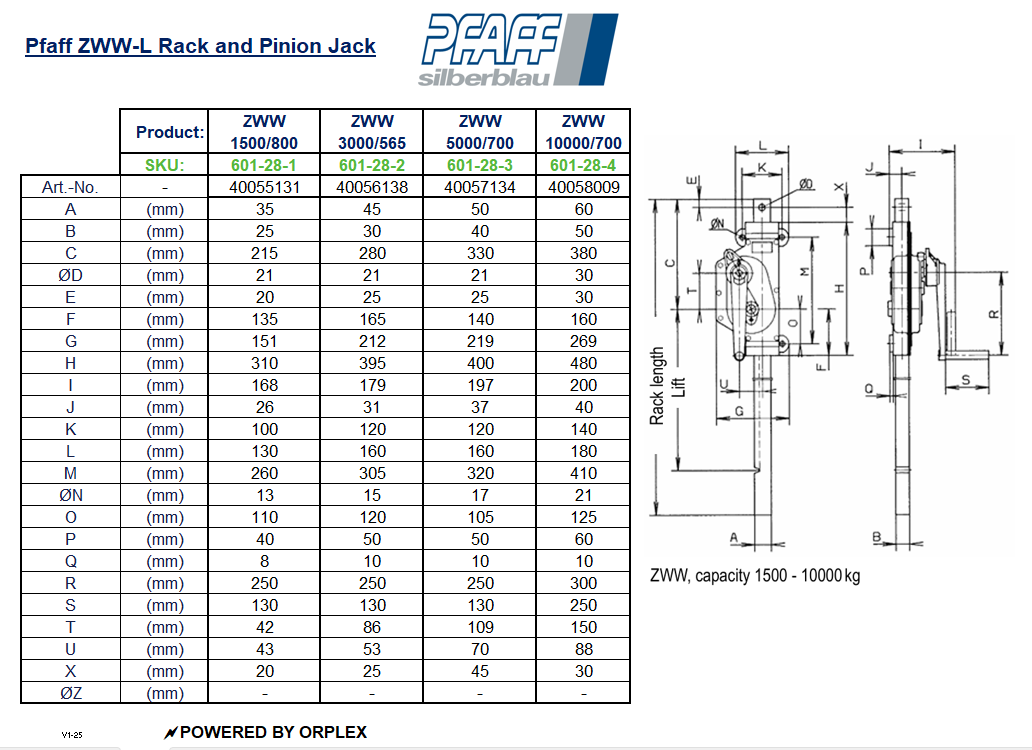

Dimensions
