Pfaff ZWW-L 1200kg Rack & Pinion Jack – 800mm Lift

Pfaff ZWW-L 1200kg Rack & Pinion Jack – 800mm Lift

SKU: 601-27-8

Read More
Regular price £762.54
Regular price RRP Sale price TODAY'S PRICE £762.54

Out of stock (0)

Tax included. Shipping calculated at checkout.

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250
Click & Collect from BL9 6EY
View full details

Description

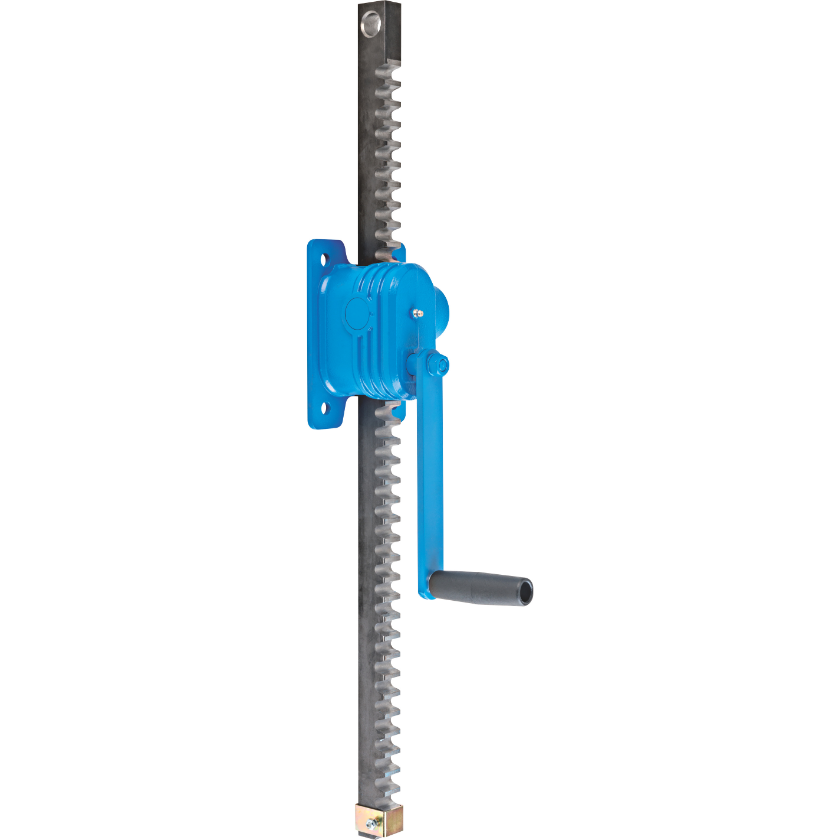

Pfaff ZWW-L 1200/800 Rack & Pinion Jack – 1200kg Capacity, 800mm Lift

Wall-mounted rack and pinion jacks are used for lifting, lowering, pulling and pushing of loads.

Features

  • Robust steel design with precisely machined worm and spur gears for smooth and easy manual operation.
  • Solid steel rack with additional bore hole for fastening of the load.
  • Low wear owing to hardened gearing parts and precisely machined teething.
  • Up to 1200 kg lifting load for pushing or pulling loads are equal.
  • At standard tensile load from 1500 - 10000 kg.  Compressive load possible on request.
  • Rigid wall mounting.

Optional

  • Different rack length on request.
  • Crank with folding handle for ZWW-L.
  • ZWW-L with capacities of 600kg and 1200kg are also available in explosion-proof design.

Atex Version Available

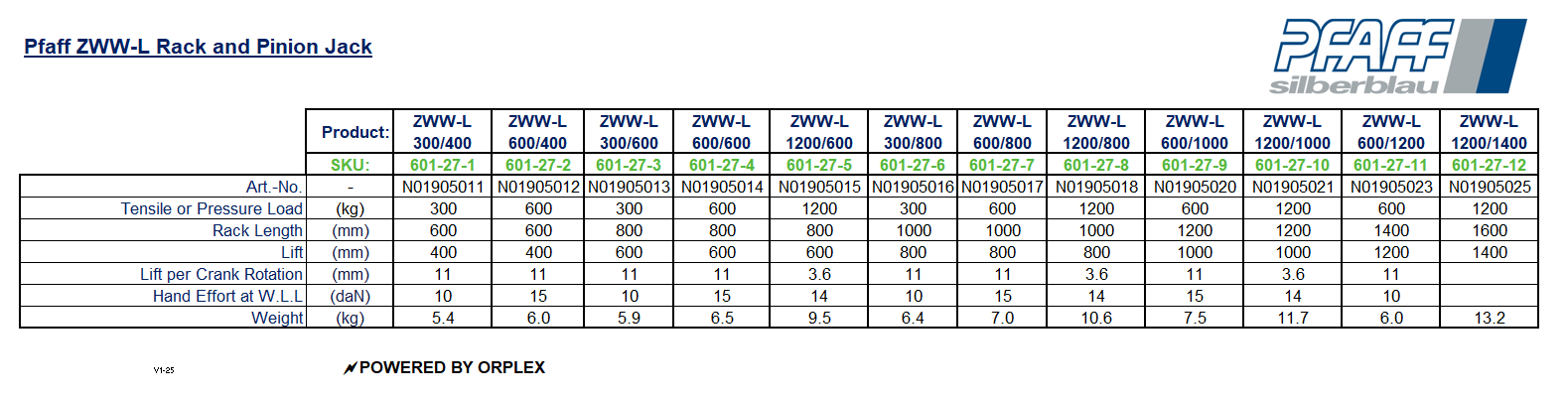

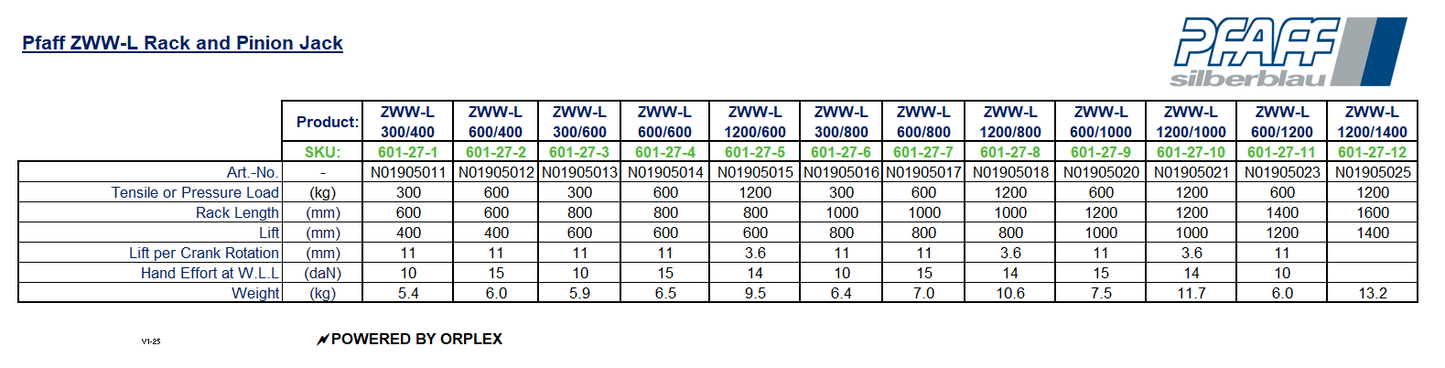

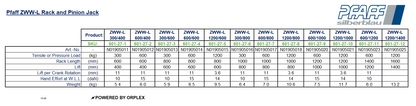

Specification

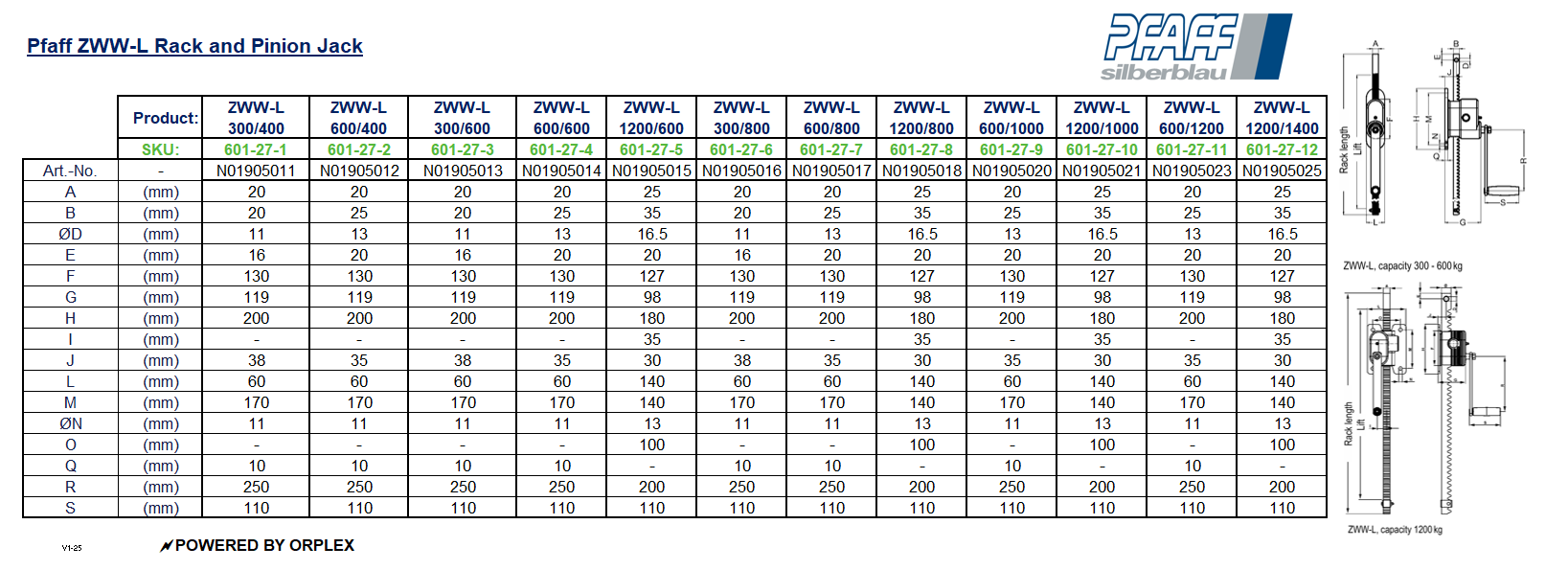

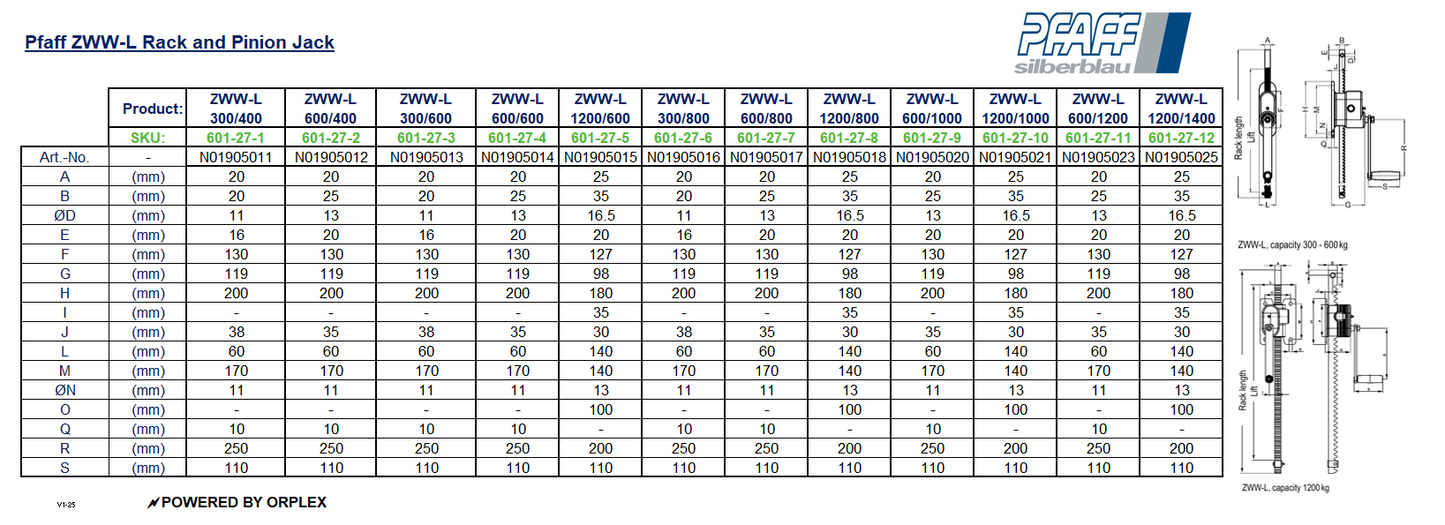

Dimensions
