Polymide (PA 6 white) Pulley Type ETT-190P : 20kg through to 140kg

Name: Polymide (PA 6 white) Pulley Type ETT-190P : 20kg through to 140kg
Brand: Etter (WEBI) Pulleys
SKU: 155-9-1
Price: 2.40 GBP
Availability: InStock
Rating: 5.0 (1 reviews)

Etter (WEBI) Pulleys SKU: 155-9-1

1 1

WEBI Pulley, Type ETT-190P- Polymide (PA 6 white) Pulley (ETTER) Ref: 155-9 WEBI, Polyamide (PA 6 white)/ Nylon) pulley - Type ETT-190P The 190P range has capacities from 20kg - to 140kg Eight models,... Read More

£2.40

Sale TODAY'S PRICE £2.40

In stock (74)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more etter pulley wheels

More From etter webi pulleys uk next day

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

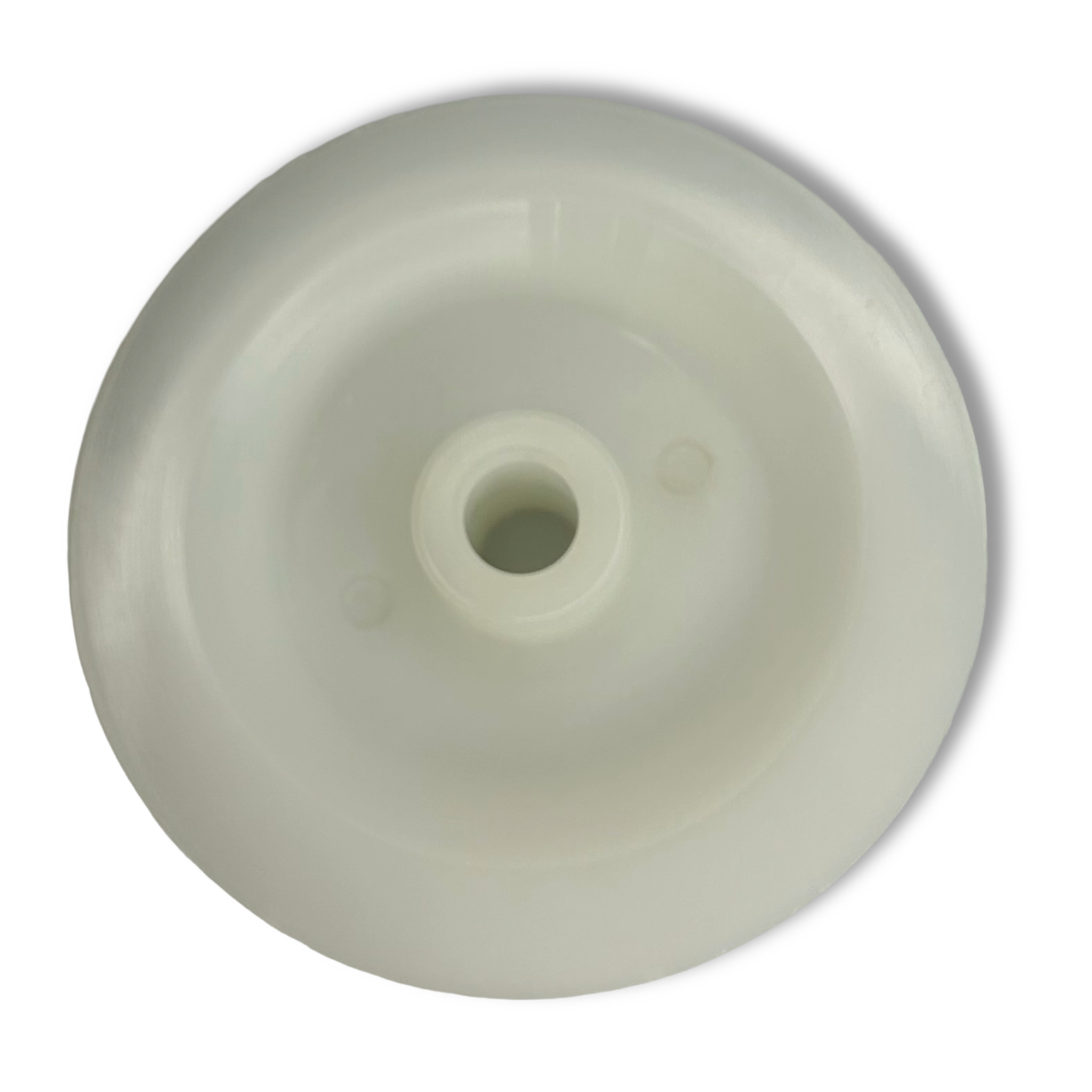

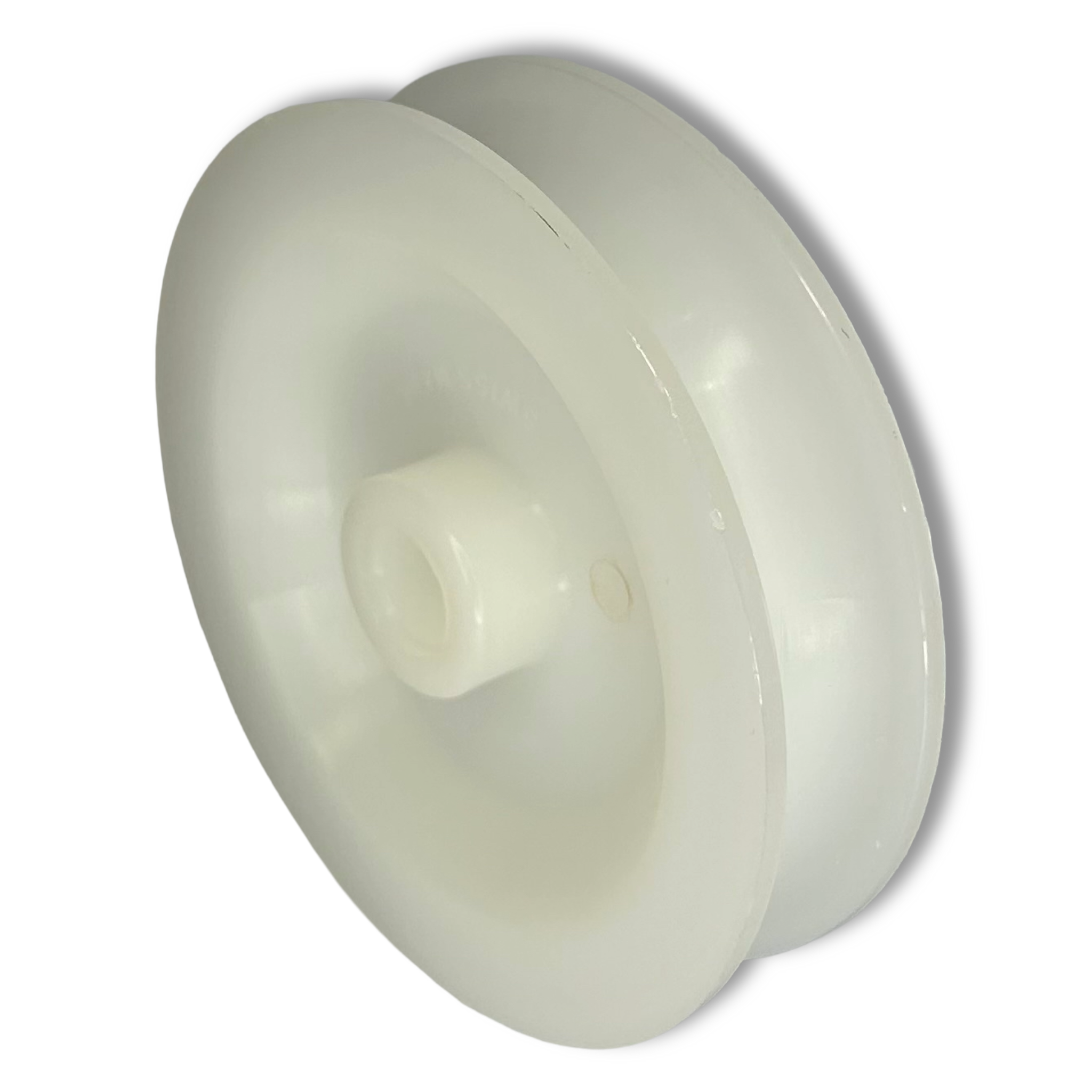

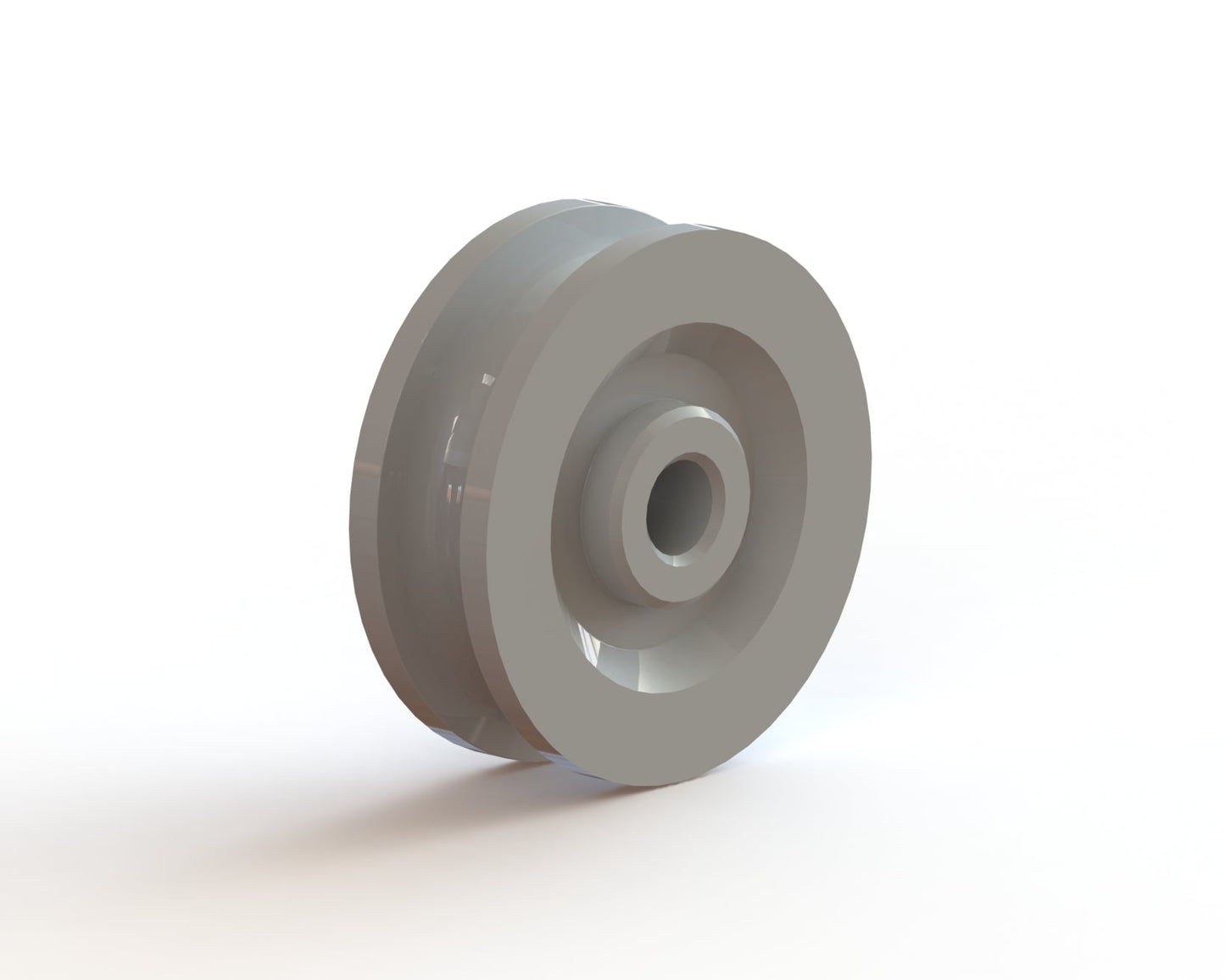

WEBI Pulley, Type ETT-190P- Polymide (PA 6 white) Pulley (ETTER) Ref: 155-9

WEBI, Polyamide (PA 6 white)/ Nylon) pulley - Type ETT-190P
The 190P range has capacities from 20kg - to 140kg
Eight models, to suit 4 through to 16mm hemp or synthetic rope (see specification PDF for full details)
For use with where diversion of rope is required.
SWISS MADE "ETTER"
All eight model types available from stock
Quick ref 155-9

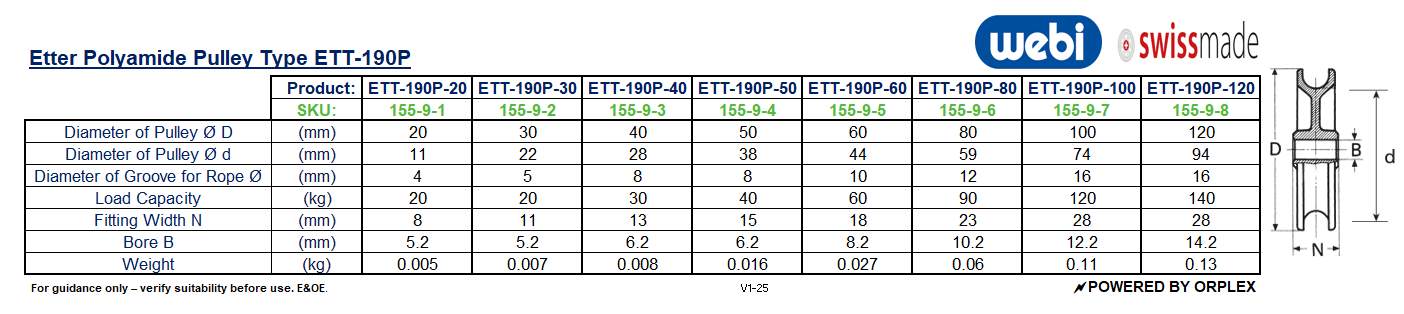

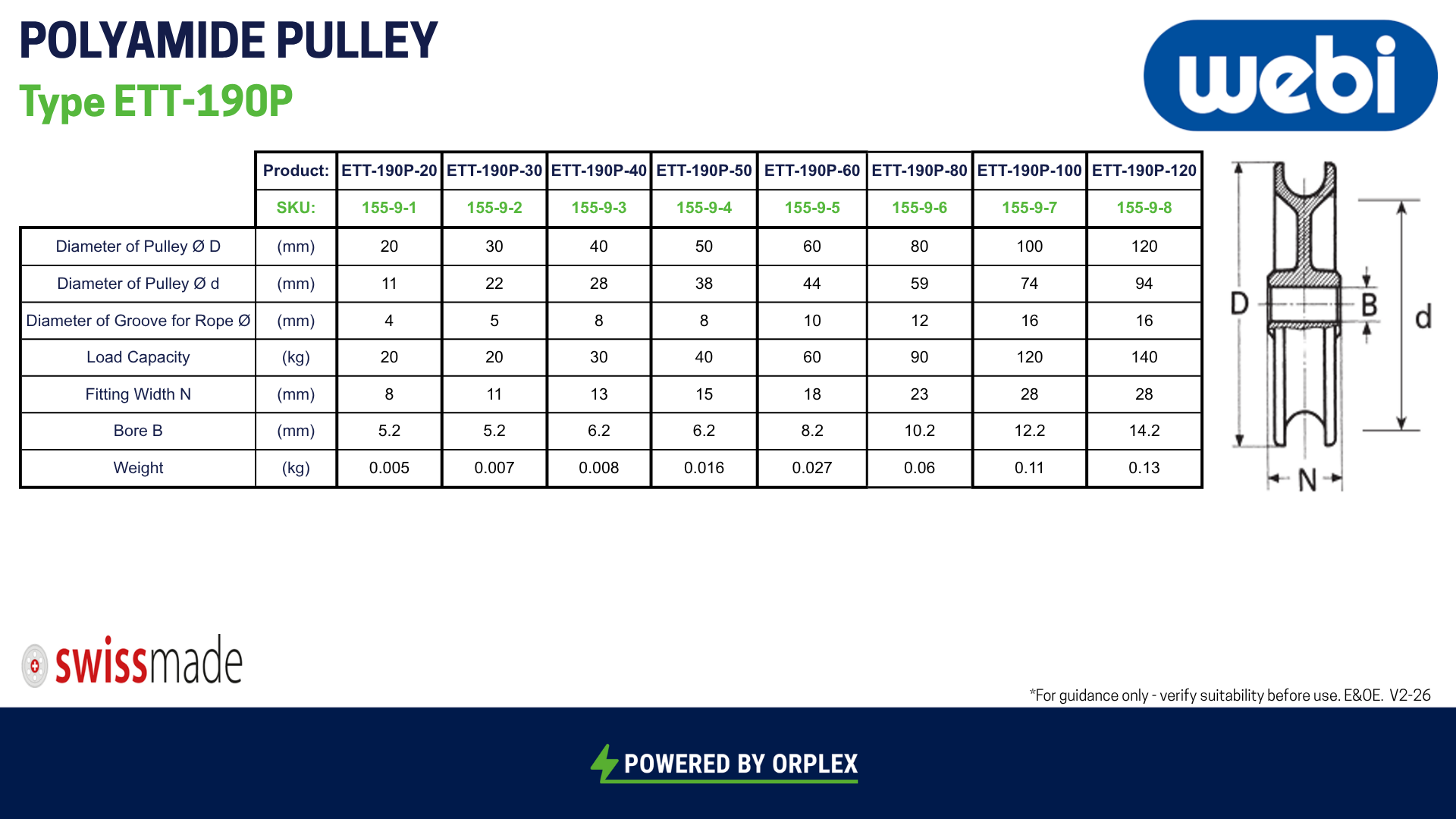

Specification

Model	Capacity	Pulley Diameter	Rope Diameter
155-9-1	20 kg	20 mm	4 mm
155-9-2	20 kg	30 mm	5 mm
155-9-3	30 kg	40 mm	8 mm
155-9-4	40 kg	50 mm	8 mm
155-9-5	60 kg	60 mm	10 mm
155-9-6	90 kg	80 mm	12 mm
155-9-7	120 kg	100 mm	16 mm
155-9-8	140 kg	120 mm	16 mm

Downloads

Pulley Pulley Cat 2018

Etter 190P Pulley Data Sheet

Product Questions & Answers

QUESTIONS & ANSWERS

Ask a Question

We live in Bolton lancs is it possible to collect

Some items are stocked at our Bury Branch so collection can be done by pre arrangement.
Can you tell me the width of the 100m pulley please part 155.9.7 Thanks

Hi Gavin

Spec details for the pulley below;

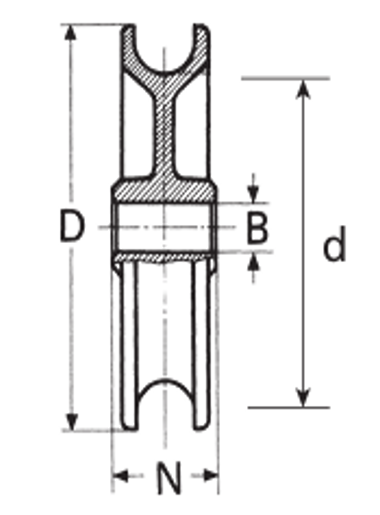

Rope Pulley Polymide PA 6 White, Plain Bearing For Hemp and Synthetic Fibre Ropes Diameter of Pulley (D): 100mm Diameter of Pulley (d) : 74mm Groove for Rope : 16mm Load Capacity : 120kg Fitting width (N) : 28mm Bore : 12.2 mm

If you can advsie your company details and email address we can send a drawing as well.
