Portable Winch
SKU: 167-1-2
Portable Winch
SKU: 167-1-2
Read MoreIn stock
If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk
Through PayPal Credit - Find out more

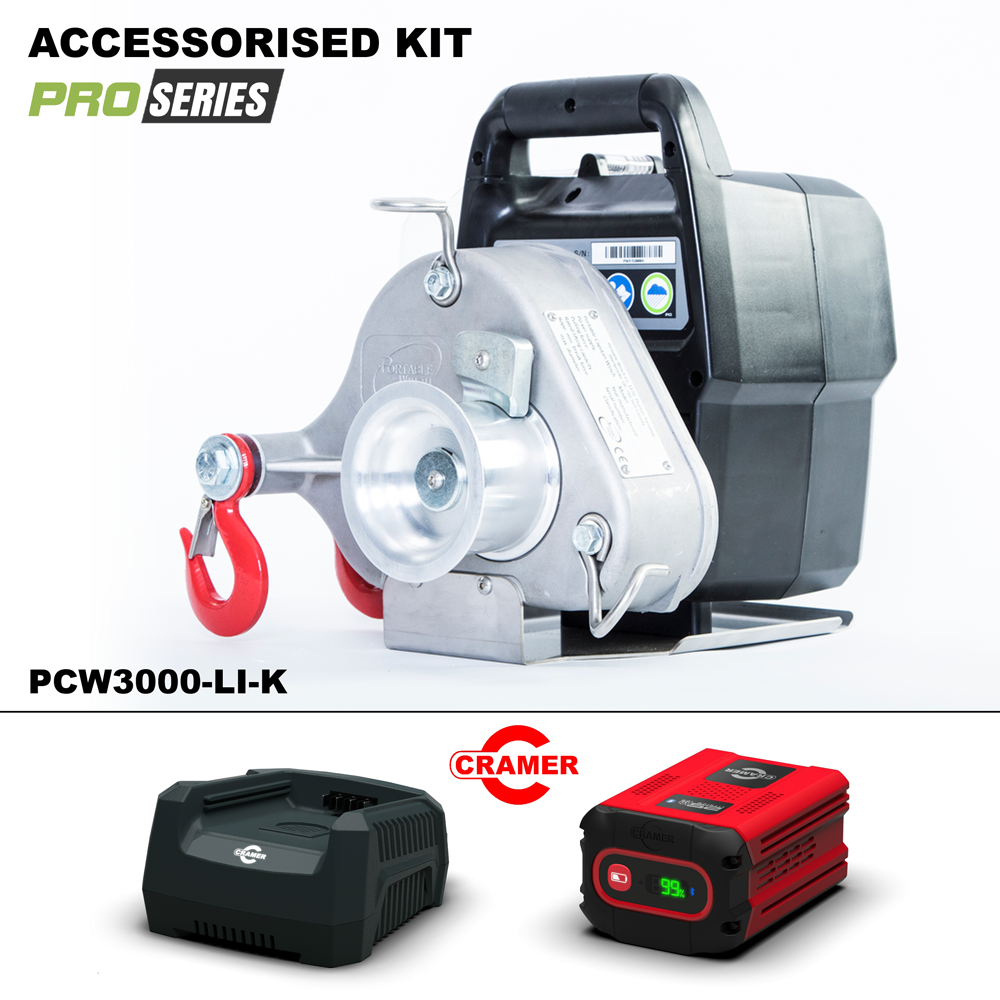

The PCW3000-LI-K Kit is supplied with 1 x CRAMER 82v 2.5ah Lithium-ion Battery and 1 x CRAMER 82v Fast Charger
VERY FIRST BATTERY-POWERED PORTABLE CAPSTAN WINCH IN THE WORLD!
Portable Winch Co. innovates again by introducing this new model of winch.
Featuring a 1.0 KW brushless electric motor that accepts 82 Volts Lithium-Ion batteries, from 2 to 6 amperes, this powerful and reliable winch is compatible with other battery-powered tools.
It is always ready to be used since it is zero maintenance. It is then perfect for quick or unplanned jobs. Ideal for seasonal and/or less frequent usage. Moreover, it can be used indoors!
Reaching up to 1000 kg of pulling force, it will allow you to achieve laborious tasks with ease. It can be anchored anywhere in a few seconds. Once the winch is anchored, all that is left to do is to wrap the rope around the drum and start pulling.
Weighing only 9.5 kg, it can be carried wherever it is needed and can be used with any lengths of 10 mm diameter double-braided polyester rope.
The winch has 3 speeds :
The PCW3000-Li will meet your needs in many situations, in all land conditions.
Regarding its autonomy, it varies depending on the battery, the speed and the load weight. Thus, between 20 and 40 minutes.
Portable Winch Co. also offers the transport bag (PCA-0106) in order to store and carry your winch and accessories.
*Accessories sold separately.
*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch
WARRANTY
Private use : 2 years
Commercial use : 1 year
Battery and Charger Warranty covered by CRAMER Dealer Network
Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !
PCW3000-LI-K Battery Winch Kit 1000kg
| Manufacturer | PORTABLE WINCH |
|---|---|
| Max Pull Capacity | 1000kg |
| Max Lifting Capacity | Not Rated For Lifting |
| Installed Capstan Size | 76mm |
| Speed with Installed Capstan | 11.6 m/min |
| Rope Size | Min 10mm | Max 16mm | Ideal 10mm |
| Engine/Motor | 1.0 KW Electric Motor - all 82V maximum |
| Gear Ratio | 200:1 |
| Dry Weight | 9.5kg (excluding Battery) |
User Guide
What sort of running time do you get to a battery charge?
With the Cramer battery model 82V180 (2.5 amp model), which is our SKU167-17-5 the approx. run time 14 to 26 minutes from full charge depending on load being pulled.
Pulling the max load of 1000kg the battery will be used quicker - so nearer 14 minutes.
Other factors which would impact the running time would be any obstacles in the way of the load being pulled.
Many customers buy multiple of larger winches depending on the use they think they will need.
It takes around 48 minutes to recharge the 2.5 amp Cramer battery to 100% charge using the 1 slot Cramer single charger.
can this be used for lifting and lowering?, does it have a remote pendant?
Hi, no the PCW3000-LI Battery winch is just for pulling applications. No pendant is supplied as control is through the rope, the winch is started / stopped via controls on the housing. There is a petrol version of this winch available which can be using for lifting and lowering applications, either the PCH1000 or PCH 2000 model
