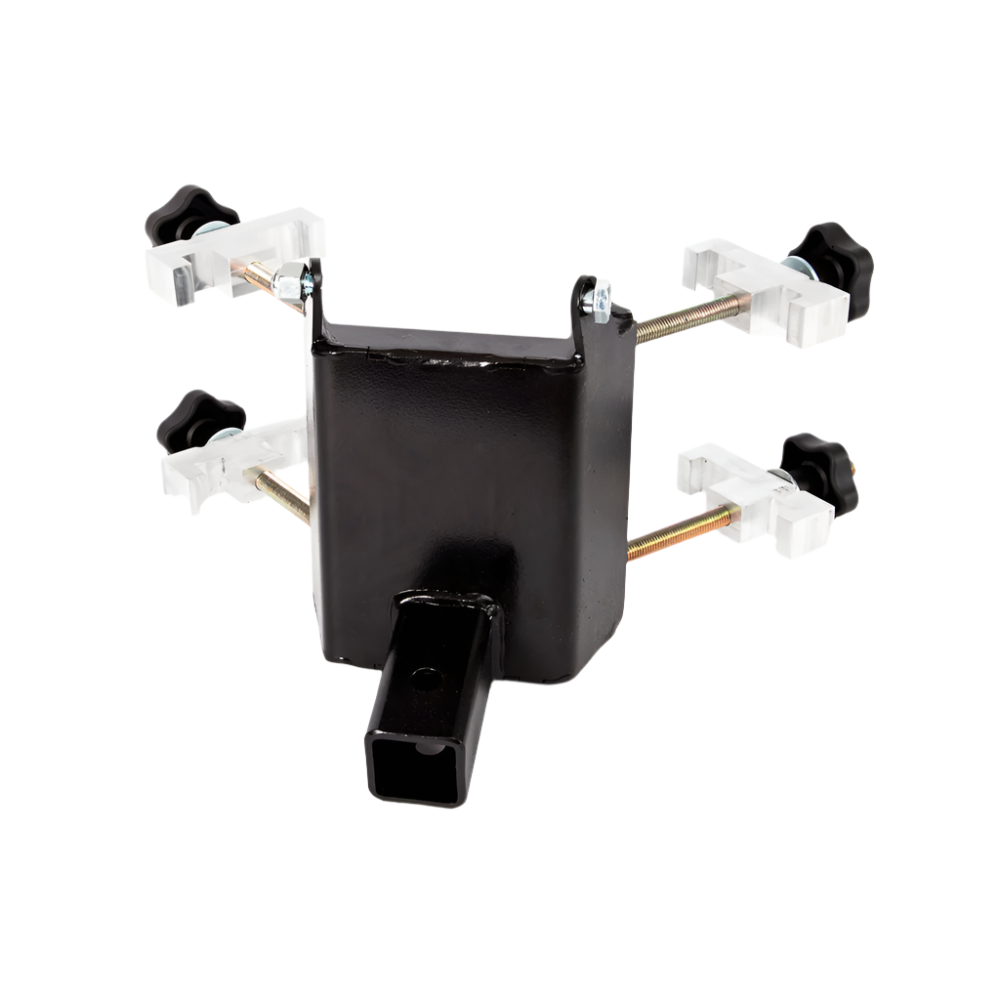

The pylon mount is designed for anchoring various models of portable winches directly to a pylon's angle iron.
The most common usage is for lifting using the vertical pull support (PCA-1264).
It is easily anchored by one person with the help of built-in magnets. Four reversible aluminium hooks provide grip on most angle irons from 10 cm to 30 cm wide, single or double thickness. They tighten with moulded hand knobs and no tools are required.
The pylon mount can also be used for pulling using the winch support plate (PCA-1268).
Can be used with the following winch models:
- PCW3000
- PCW3000-Li
- PCW5000
- PCW5000-HS
- PCH1000
- PCT1800
SPECIFICATIONS
Material : Powder coated steel
WEIGHT & DIMENSIONS
Weight (metric) : 7,7 kg
Length (metric) : 32 cm
Width (metric) : 28 cm
ADDITIONAL INFORMATION
Additional Information : Equipped with four (4) reversible aluminum hooks to provide grip on most angle irons from 10 cm to 30 cm (4'' to 11-13/16'')
Additional information : Especially designed to accept the Winch support plate PCA-1268, Winch support for vertical pulling with swivel pulley PCA-1264 or Vertical pull winch PCH2000 support PCA-2264.
GTIN / EAN13 690581010095
