Rotary Hoist Frame

Name: Rotary Hoist Frame
Brand: Warrior Winches
SKU: 161-5-2
Price: 49.43 GBP
Availability: OutOfStock
Rating: 3.0 (2 reviews)

Warrior Winches SKU: 161-5-2

1 8

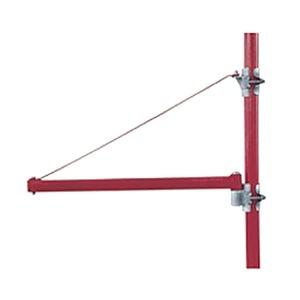

Rotary hoist frame. Fixed and extendable frames available. This compact, general purpose Rotary hoist frame is ideal for all manner of lifting application. Read More

£45.72

Sale TODAY'S PRICE £45.72

In stock (1)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Description

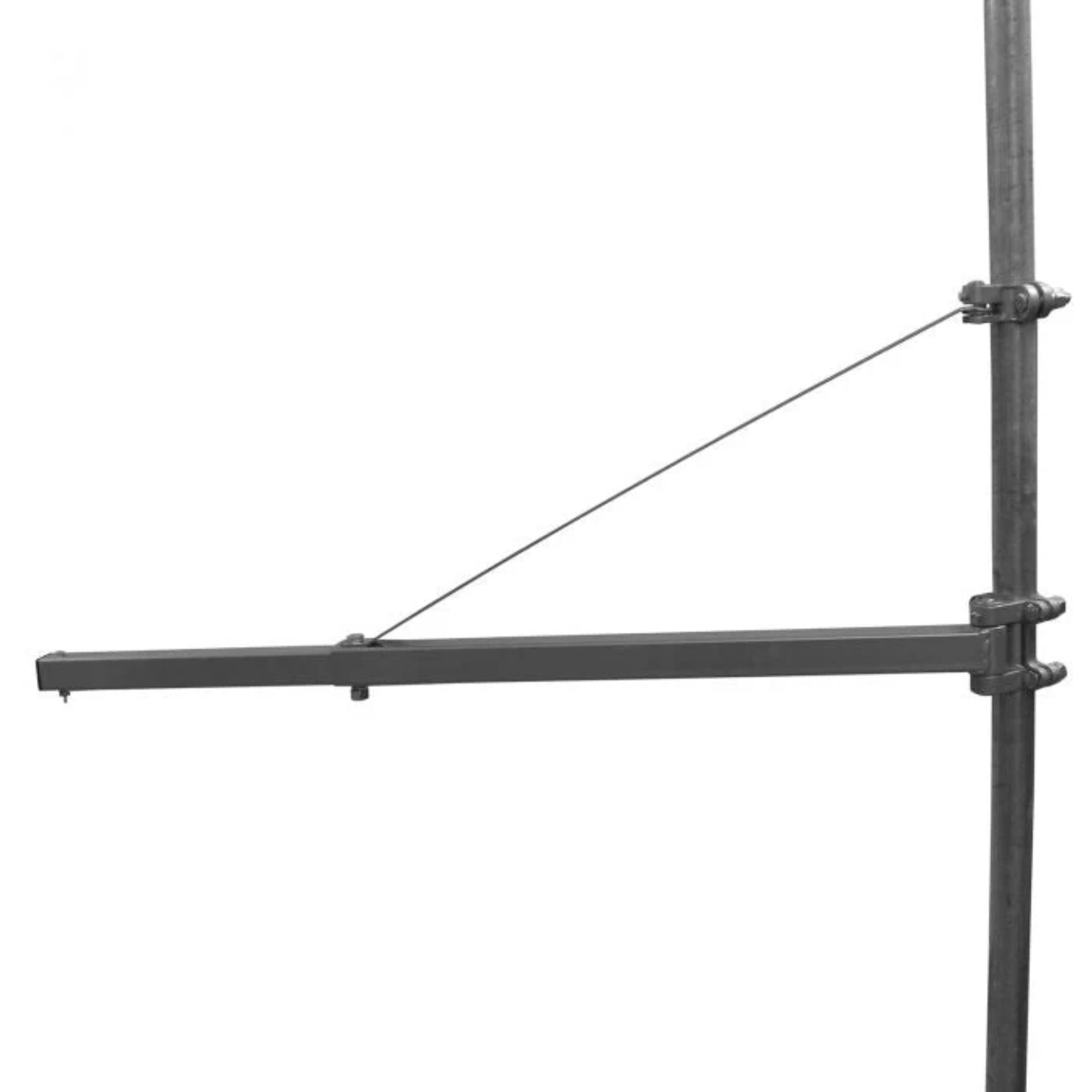

500kg - 250kg 40x40mm (Extendable) Scaffold Hoist (Box section only) Ref: 161-5-1

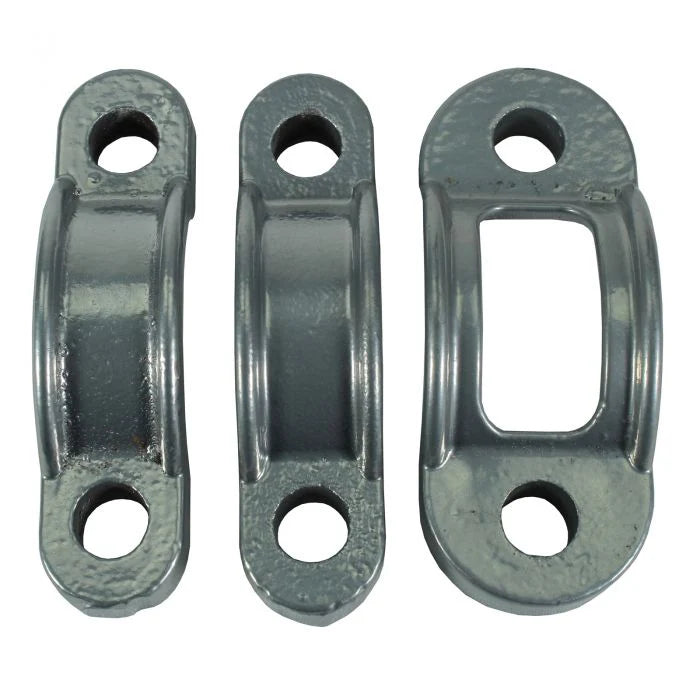

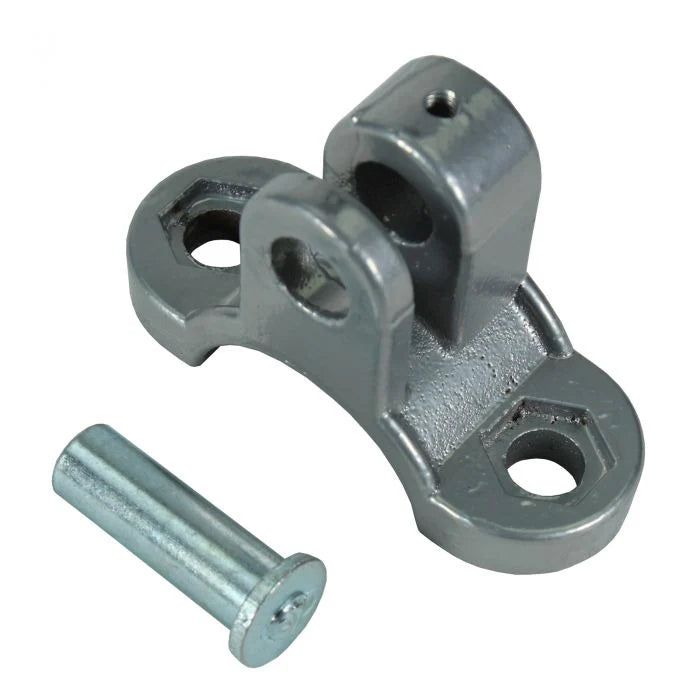

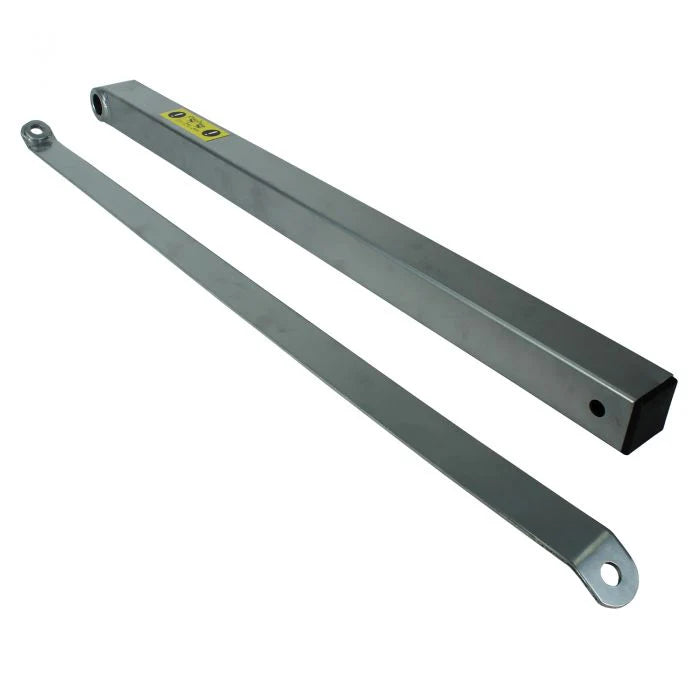

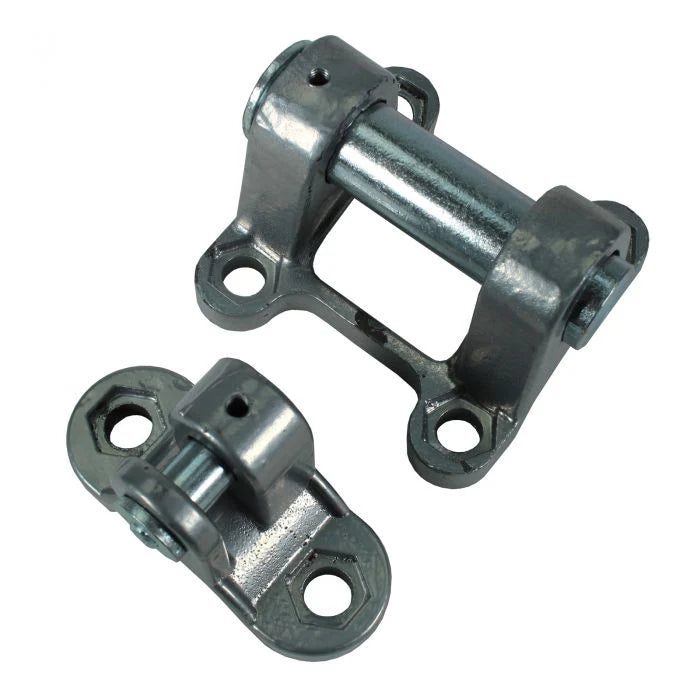

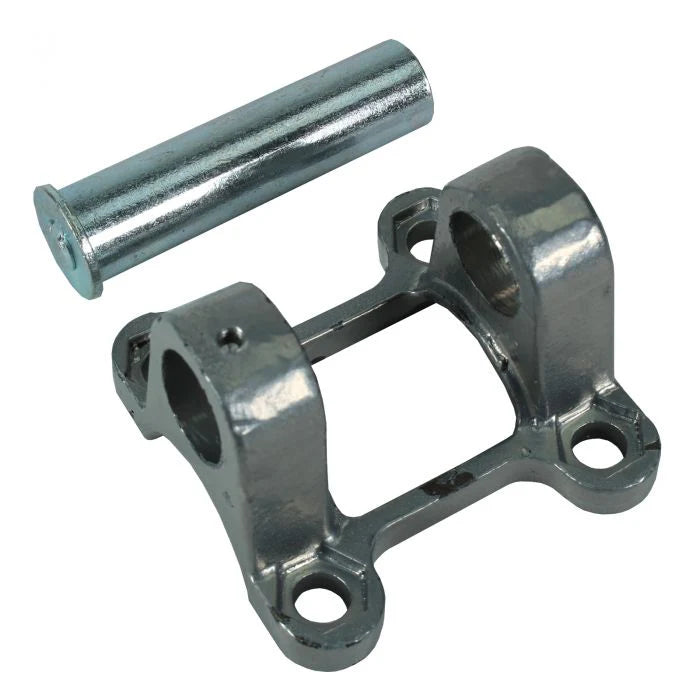

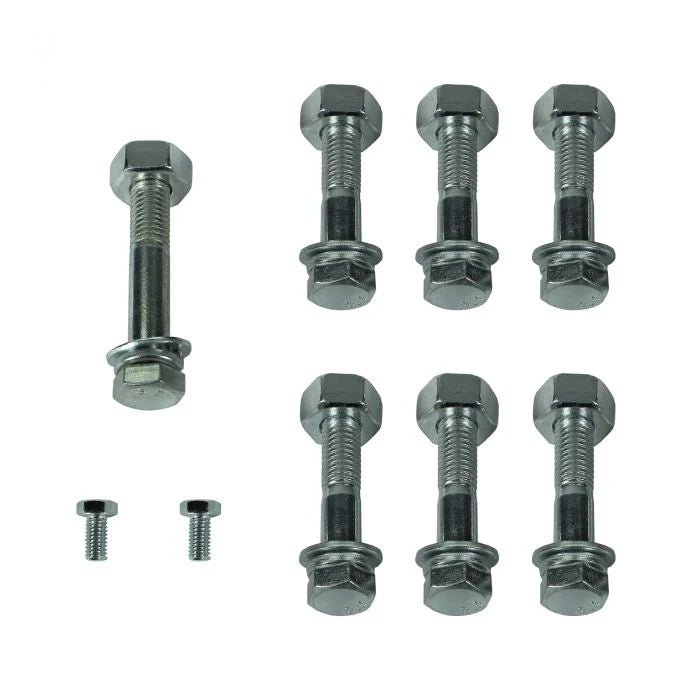

This compact, general purpose Rotary hoist frame is ideal for all manner of lifting application. Easy to install, it is supplied with special fixing clamps. Supplied with a square section beams for any electric hoist up to 600kgs capacity.

The beam can extend to 1100mm with a lifting capacity of 250 kg.

Standard	Conforms to EN 14492
Max Lift	750mm - (SWL) 500 Kg (WLL) 850kgs 1100mm - (SWL) 250 Kg (WLL) 325kgs
Dimensions	750 x 50mm (Extends to 1100mm)
Colour	Silver
Weight	6 Kg

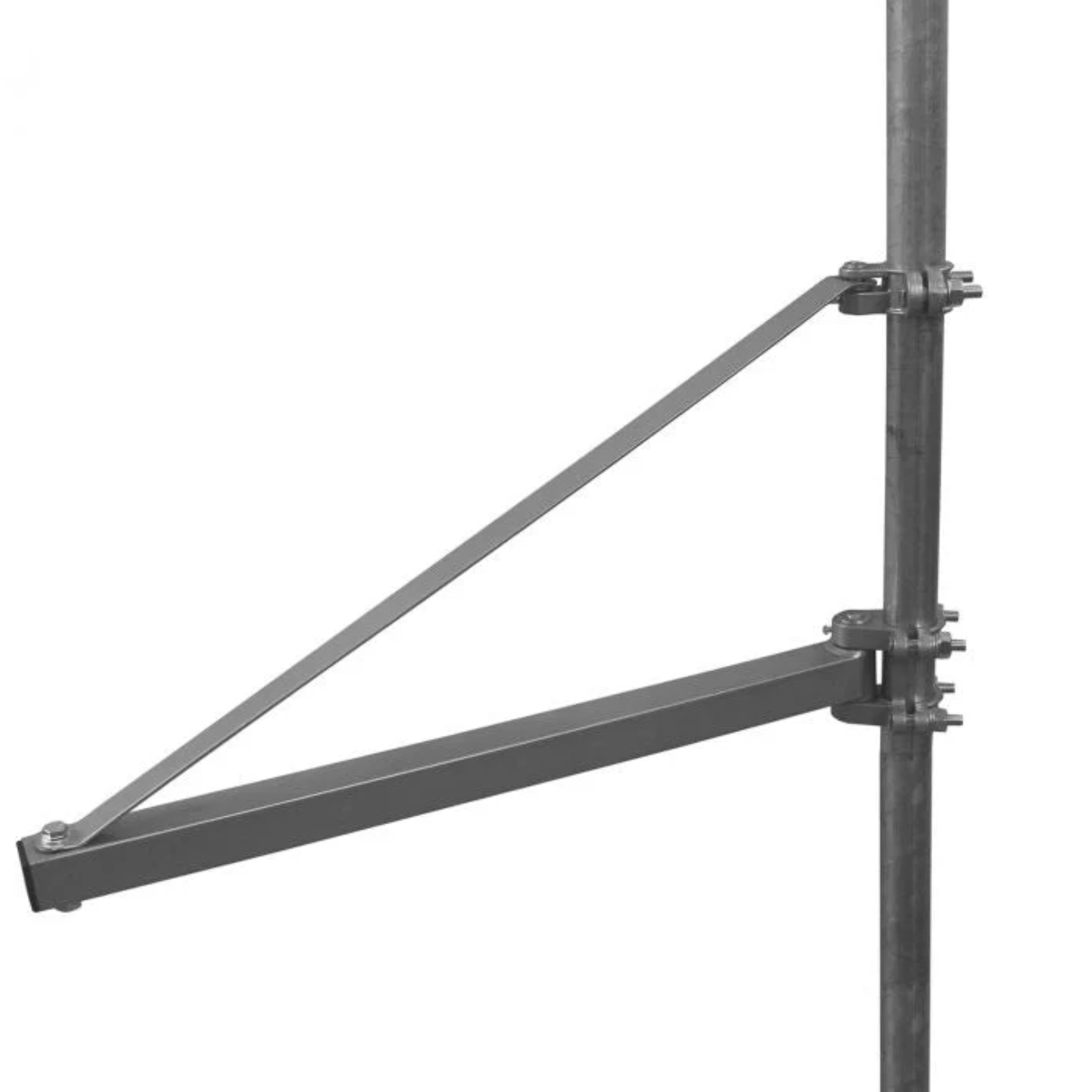

600kg 60x40mm Scaffold Hoist (Box section only) Ref: 161-5-2

This compact, general purpose Rotary hoist frame is ideal for all manner of lifting application. Easy to install, it is supplied with special fixing clamps. Supplied with a square section beams for any electric hoist up to 600kgs capacity.

Standard	Conforms to EN 14492
Max Lift	750mm - (SWL) 600 Kg (WLL) 850kgs
Dimensions	750 x 50mm
Colour	Silver
Weight	8 Kg

*Vertical pole not included*
