Cable roller + multifunction mandrel in system case

The compact X-BOARD - XB300 is a universal professional cable winder/unwinder for all small to medium cable reels. The XB300 impresses with its small, light and flat design, but can still be loaded up to 300 kg. Especially suitable for damaged cable drums. Due to the removable mandrel, cable drums with different hole sizes can be used.

The multifunction mandrel has been specially developed for XB 300, XB 500 and XB 500 T cable rolling systems. Loose cable bundles can also be rolled by attaching them to the stainless-steel centre mandrel and then folding out the 4 side brackets. The telescopic centre mandrel measures 72 mm in diameter. It is therefore also ideal for rolling a thinner cable bundle with a small inner diameter or individual wires. The normal height of the multifunction mandrel is 196 mm, which can be extended up to max. 294 mm via the telescopic mechanism. This means high cable bundles or corresponding tube bundles can also be rolled. When the 4 side brackets are unfolded, there is a total contact surface of 430 mm in diameter. Ideally, this should correspond to the respective cable or tube bundle. A designated opening allows the unit to be combined with the RUNPOSTICKS.

Optimum area of application:

XB 300: Rolling of (damaged) drums up to 300 kg as well as loose cable bundles or individual wires up to a max. height of 294 mm and a max. diameter of 430 mm

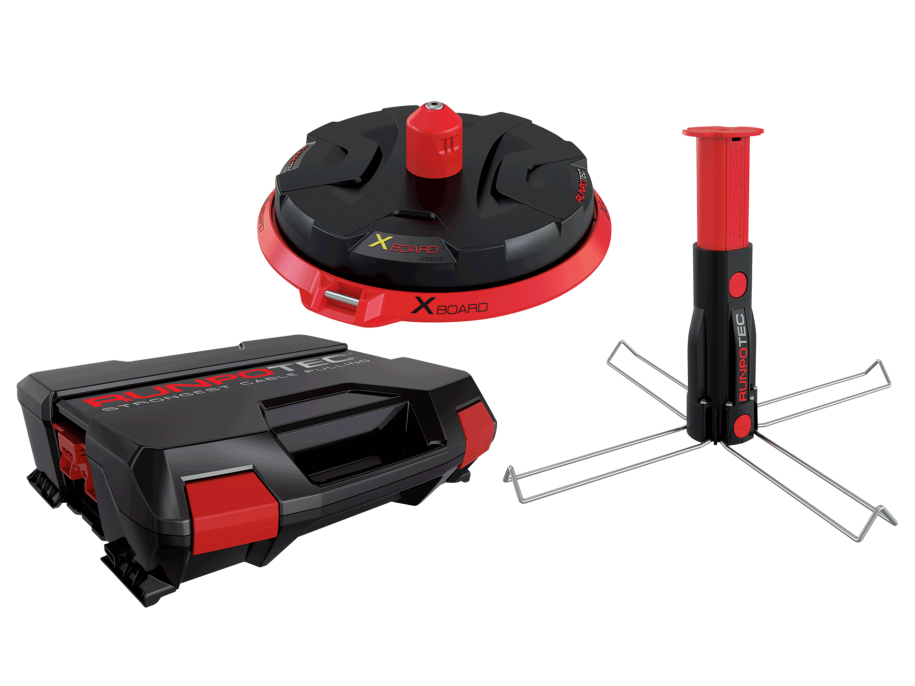

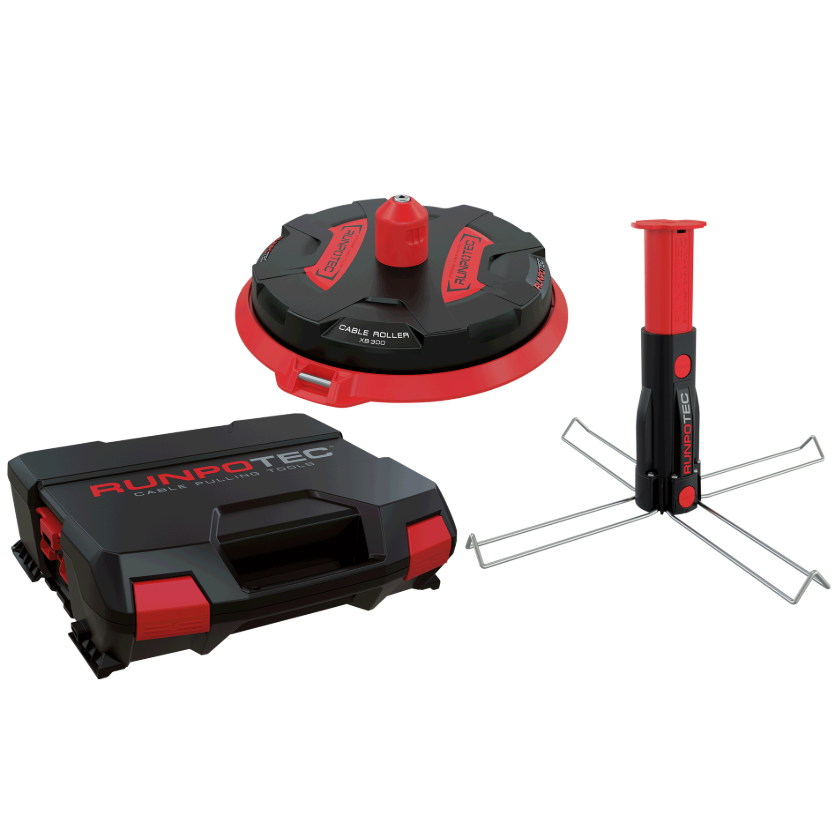

Scope of delivery: 1 x XB 300, 1 x Multifunction mandrel, 1 x RUNPOTEC system case

Advantages

• XB300 Cable Roller
• Universal cable drum rewinder and unwinder
• For all types of cables and cable drums even with very small inner diameters.
• Compact - lightweight - 1.26 kg net weight
• Loadable up to 300 kg
• Excellent for damaged cable drums
• No cable clutter
• Trouble-free and rational work approach.
• Non-slip and stable base
• Multifunction mandrel
• Can be used in combination with XB 300, XB 500 and XB 500 T
• Allows loose cable bundles and individual wires to be rolled
• Telescopic centre mandrel, extendable up to 294 mm
• This allows high cable bundles or corresponding tube bundles to be accommodated

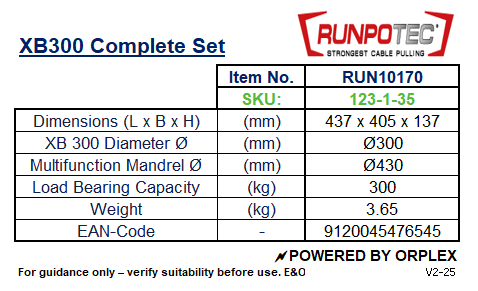

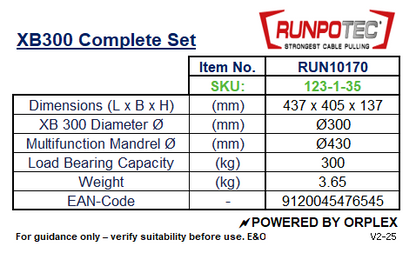

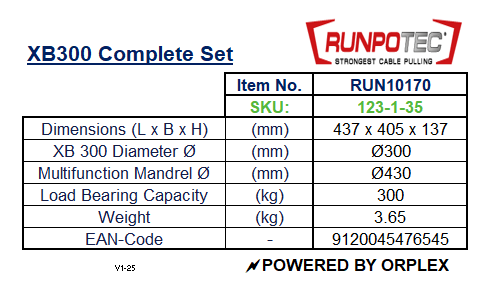

Download - EN-RUNPOTEC-Data-sheet-XB300-complete-set-10170.pdf
