SCREW CAM PLATE CLAMP - CSC

Name: SCREW CAM PLATE CLAMP - CSC
Brand: Tiger Products
Price: 157.44 GBP
Availability: OutOfStock

Tiger Products SKU: 240-3-1

1 4

TIGER SCREW CAM PLATE CLAMP - CSC Ref: 240-3 The Tiger Screw Cam Plate Clamp provides vertical and horizontal lifting and transportation of a large variety of steel structures. It can also be attached upside... Read More

£157.44

Sale TODAY'S PRICE £157.44

Out of stock (0)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

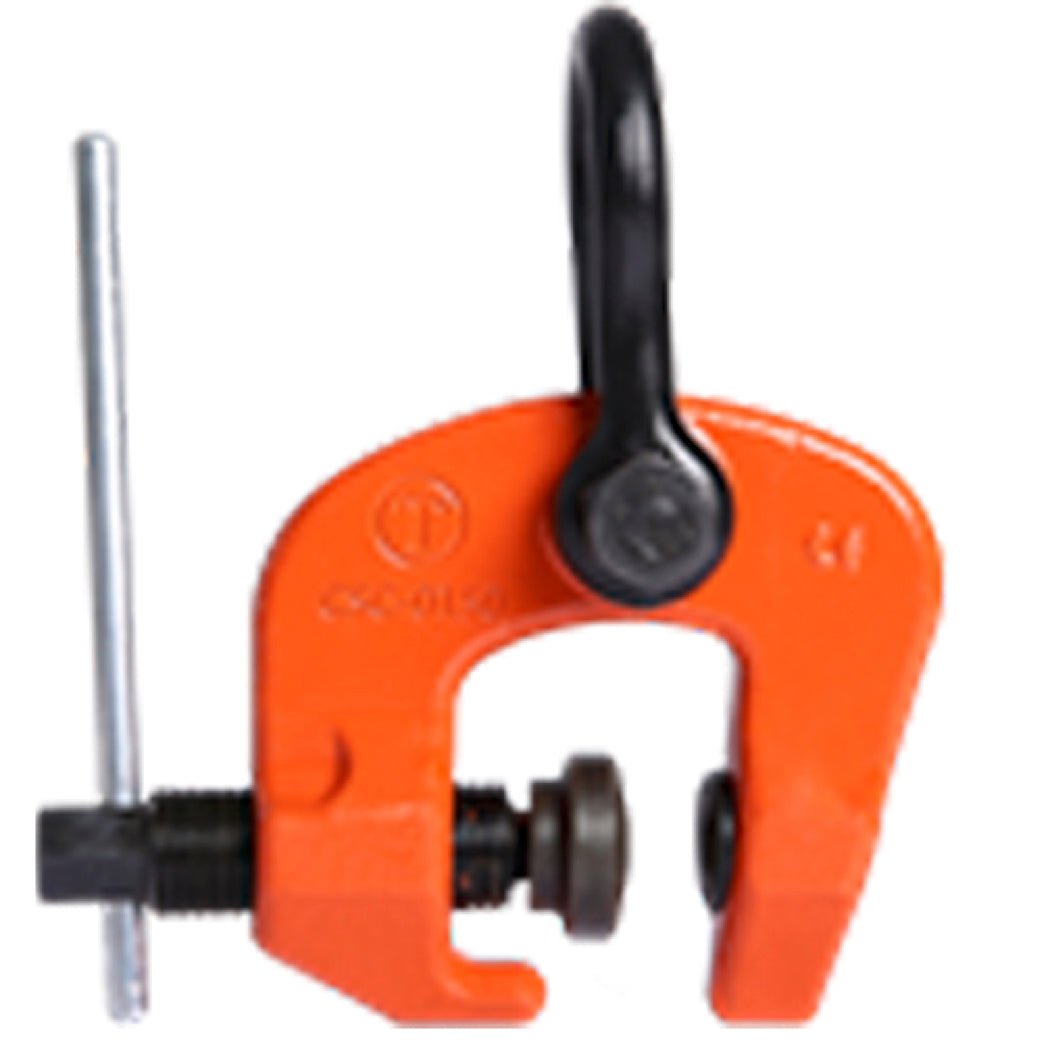

TIGER SCREW CAM PLATE CLAMP - CSC Ref: 240-3

The Tiger Screw Cam Plate Clamp provides vertical and horizontal lifting and transportation of a large variety of steel structures. It can also be attached upside down and be used as a temporary lifting point. The CSC is equipped with a safety screw spindle mechanism, ensuring that the clamp does not slip when lifting force is applied.

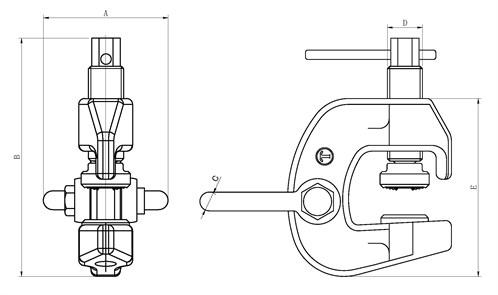

SKU	Capacity (tonne)	Dimensions (mm)						Net Weight (kg)
SKU	Capacity (tonne)	Jaw Opening (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Net Weight (kg)
240-3-1	0.5t	0-28	52	158	11	18	105	0.7
240-3-2	1.5t	0-32	77	210	16	30	152	4.0
240-3-3	3.0t	0-50	88	270	19	36	191	6.0
240-3-4	6.0t	0-75	153	290	32	45	255	18.0

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
