Description

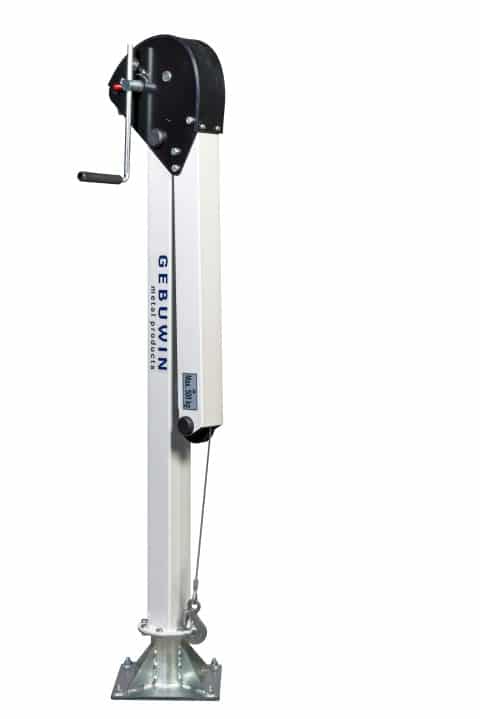

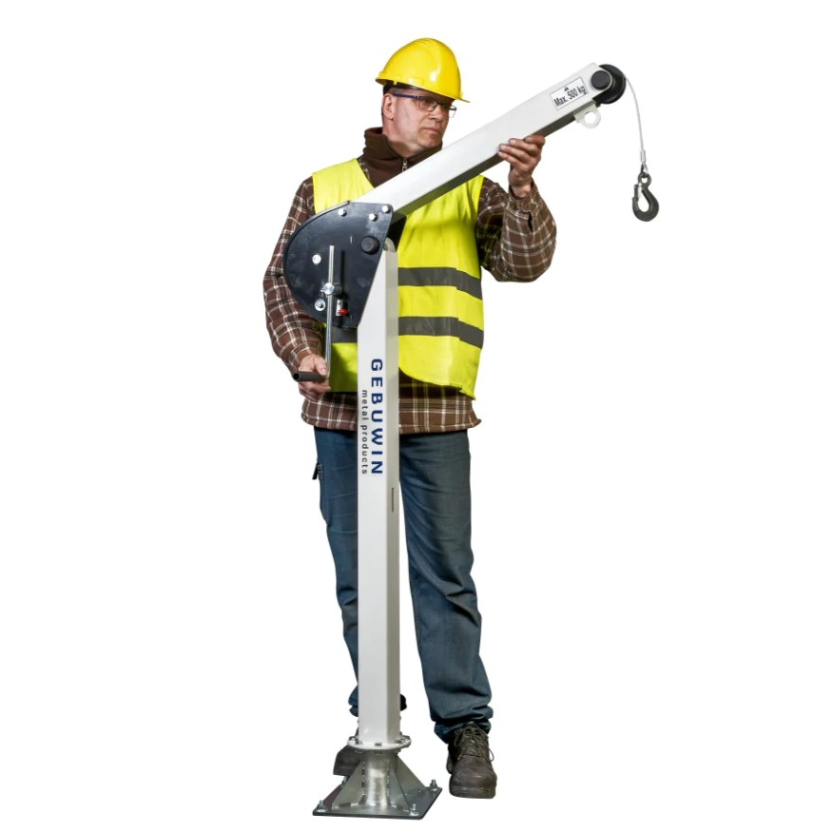

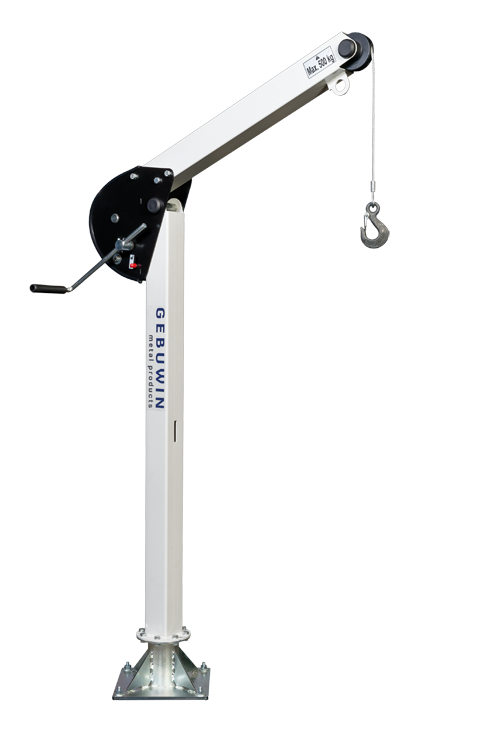

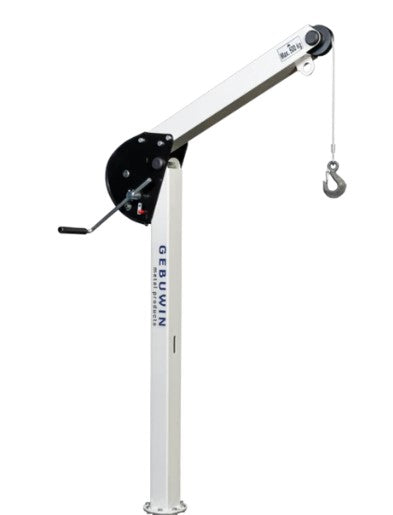

Gebuwin has developed this modern designed folding swivel davit crane especially for lifting goods on location. This davit crane helps you carry out your work efficiently without the risk of physical strain. Gebuwin produces three types of lifting davits, which vary in lifting capacity and length of the boom. Because of the integrated winch and cable, the davit crane is not only compact but also low-maintenance. The crank is also adjustable in length, so that the lifting speed can be adjusted. It is a very good solution to lift or lower a load in a very user-friendly way

  • Robust and safe lifting davit crane in compliance with EN13157
  • Ready to use in 5 seconds
  • Integrated winch and cable in an ergonomic modern design
  • Easy to transport
  • Load pressure brake with double ratchet system for safe stable hold of the load in any position
  • Possible to rotate 360° due to the use of ball bearings
  • Adjustable crank, with ergonomic grip
  • Maintenance free
  • The davit includes a 13 metre length wire rope (5mm diameter) with hook
  • Paint thickness on standard painted model is 60 – 80 micron in 1 layer and in compliance with DIN/ISO 12944, C1M – RAL 7035 (grey)
  • For enhanced corrosion resistant models with a either a zinc or stainless steel finish, please contact our sales team sales@rigginguk.co.uk

To Order as follows:

SKU 156-22-10 is for the Painted Finish Swivel Davit Only

SKU 156-22-12 is for the Painted Finish Swivel Davit and Zinc Socket Box/ Base

Please note if these items are not in stock in our UK warehouse, the lead-time can be up to 3 weeks from order and will be confirmed at point of order.

Technical Info

Options

ATEX certified
Capacity 1st layer

250 kg
Capacity top layer

250 kg
Rope diameter-Ø

5 mm
Rope storage top layer

13 meter
Lift per crank rotation

20 mm
Crank effort at full load

10 daN
Weight Swivel davit

30 kg
Weight floor-socket

8,9
Type name

SD250


Downloads

Duct rod data sheetProduct data sheet



Video

Product Questions & Answers

QUESTIONS & ANSWERS

Ask a Question

  • What is the reach on the 250kg Gebuwin Davit

    The reach is 774mm for the standard 250kg Gebuwin Davit

Let customers speak for us

from 704 reviews

12mm Pulling Rope - (PE 4,700 kgs) (SGE 4,230 kgs) Polyester Double Braid White with Blue Fleck

Daniel Sherman
12mm Pulling Rope - (PE 4,700 kgs) (SGE 4,230 kgs) Polyester Double Braid White with Blue Fleck
Great little hoist

I was looking for a hoist for a 120kg chandelier
This hoist is very easy to operate and has a very smooth winding action both up and down and copes with the load easily
The hoist feels like it’s definitely heavy duty and well engineered

John Cowan
500kg Worm Gear Hand Winch - WW500
Husky restraint

Ideal between a CQC belt and a husky lead he remains securely attached. Very pleased!

David Steers
ISC HMS Twistlock (2-way) Steel Karabiner - MBS 50kN - Zinc Plated

Galvanised Cast Iron Pulley Type ETT-74 : 100 to 1000kg

Wadeson Mupudzi
Galvanised Cast Iron Pulley Type ETT-74 : 100 to 1000kg
Rollers

Great service and delivery

Ian Milburn
Cable Tray Roller - Movable Vertical Roller
Great goves

Will feel tight on the fingers to begin with due to the nature of the glove, but they loosen up and have already proved their worth, and comfy to wear for long periods. Hook loop ideal to keep them handy when not wearing!

David Ingledew
Protector 3.0 Heavy Duty Gloves (Full Finger)
Excellent company

ordered my products and they were rapidly delivered. decent price, good quality and easy to order.
I'll be using them again.

robert hamilton
1.0t TIGER SPARK RESISTANT SS20 CHAIN BLOCK XCB,

Great product and a very efficient service. Very happy! Thanks

Steve Cameron
Bow Shackle With Screw Collar Pin - Black Painted Finish - Theatrical Type
Top quality and speedy delivery

Did the job perfectly and arrived ahead of time, thankyou

Matt Evans
Drop Forged Turnbuckle Eye/Eye
happy customer

very good delivery

Michael Macdonald
Single Eye Cable Pulling Sock's from EPD

Great product.

Daniel
STEIN - X25 VENTOUT Hi-Viz T-Shirt Long Sleeve - Orange - Assorted Sizes

Great lube

Stewart Halsey
LUB2 - 20 Litre Low Cost Silicone and Water Based Cable Lubricant

Perfect just as it said on the website

Trevor Mcauliffe
Heavy Duty Straight Line Cable Roller - Max Cable Dia 125mm
6t Hydraulic Jacks

Purchased online and delivered within the time scale indicated at purchase.

Craig Vickers
6.0t Lightweight Hydraulic Cable Drum Jacks
Fairlead roller

The brothers were very helpful and friendly, they helped me choose the right product at a very reasonable price, would definitely use these guys again. Highly recommended 👍

Sajid Iqbal
Stainless Steel Roller Fairlead with 255mm Hole Centres

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
RECENTLY VIEWED
YOU ALSO MAY LIKE
SD125 GR - 125kg Swivel Hoisting Davit (Built in winch with 13m Cable)

SD125 GR - 125kg Swivel Hoisting Davit (Built in winch with 13m Cable)

SD125 GR - 125kg Swivel Hoisting Davit (Built in winch with 13m Cable)

From £1,380.00
£1,380.00

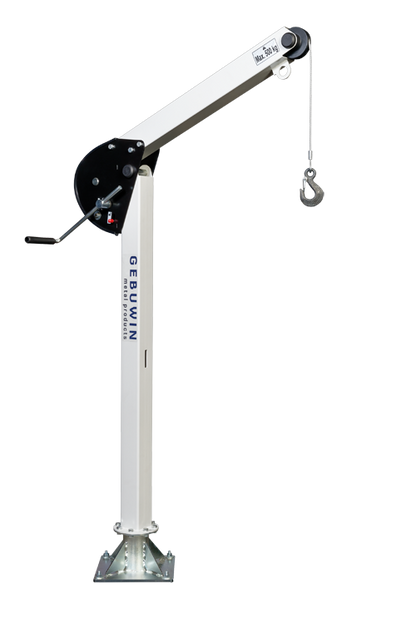

SD500 GR - 500kg Swivel Hoisting Davit (Built in winch with 13m Cable)
