Sheaves for Wire Rope, with self-lubricating bushing (Model No. 604) 455mm / 25000kg / 44mm

Name: Sheaves for Wire Rope, with self-lubricating bushing (Model No. 604) 455mm / 25000kg / 44mm
Brand: ORPTECH
SKU: 182-604-135
Price: 120.00 GBP
Availability: InStock

Sheaves for Wire Rope, with self-lubricating bushing (Model No. 604) 455mm / 25000kg / 44mm

SKU: 182-604-135

View more single pulleys

Sheaves for Wire Rope, with self-lubricating bushing (Model No. 604) 455mm / 25000kg / 44mm

SKU: 182-604-135

Description

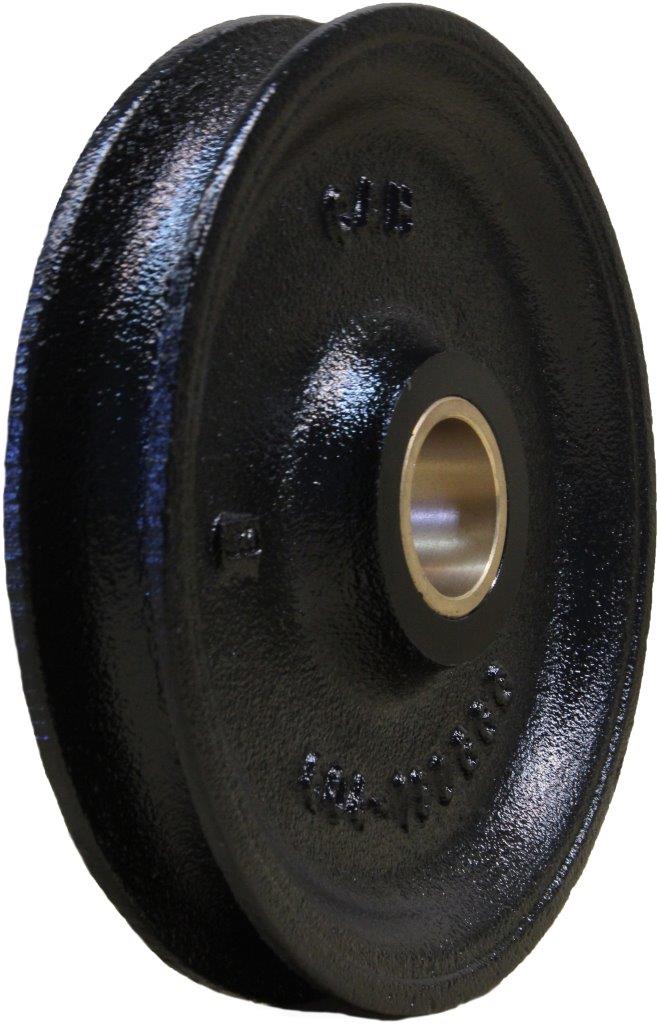

Sheaves for Wire Rope, previously DIN 82235 (Model No. 604)

Made of spheroidal graphite iron, with solid web and self-lubricating bushing, compatible with span blocks No. 601 (previously DIN 82221) and snatch blocks for wire rope No. 617 (previously DIN 82220).

Groove base Ø = 9x rope Ø.

Range of pulley capacity from 20,00kg up to 25,000kg

Range of pulley diameter from 135mm up to 455mm

Spec

SKU		182-604-135	182-604-180	182-604-220	182-604-260	182-604-290	182-604-330	182-604-365	182-604-415	182-604-455
Nominal Size		1	2	3	4	5	6	8	10	12
Sheave External Ø	mm	135	180	220	260	290	330	365	415	455
Groove Base Ø	mm	112	150	180	216	236	270	300	340	375
Groove Radius	mm	8	10	12	13	15	17	19	21	23
Groove Depth	mm	11	15	20	22	27	30	32	37	40
Rim Width	mm	25	31	39	45	51	57	64	71	79
Bore for Bolt	mm	22	32	40	45	50	55	65	70	80
Hub Length	mm	27	34	42	48	54	60	67	75	83
Hub Ø	mm	42	56	70	80	85	96	105	120	125
Rope Ø max.	mm	14	18	22	24	28	32	36	40	44
Load Capacity (in kg).	kg	2000	4000	6300	8000	10000	12500	16000	20000	25000
Weight (in kg) approx.	kg	2	4	5	8	9	16	20	28	35
