Stainless Steel AISI 316 Captive Pin Long Dee Shackle

Name: Stainless Steel AISI 316 Captive Pin Long Dee Shackle
Brand: RiggFix
SKU: 166-16-27
Price: 3.21 GBP
Availability: InStock

RiggFix SKU: 166-16-27

1 1

Stainless Steel Captive Pin Long Dee Shackle Material - Stainless Steel Grade - AISI 316 Finish - Polished SKU D d L W M.B.L (kN) 166-16-27 4mm 4mm 32mm 8mm 5.8 166-16-28 5mm 5mm 40m 10mm 9.1 166-16-29 6mm 6mm 48mm 12mm 13.2 166-16-30 8mm 8mm 64mm 16mm 23.7 166-16-31 10mm 10mm 80mm 20mm 37.3 166-16-32 12mm 12mm 96mm 24 Read More

£3.21

Sale TODAY'S PRICE £3.21

In stock (4)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

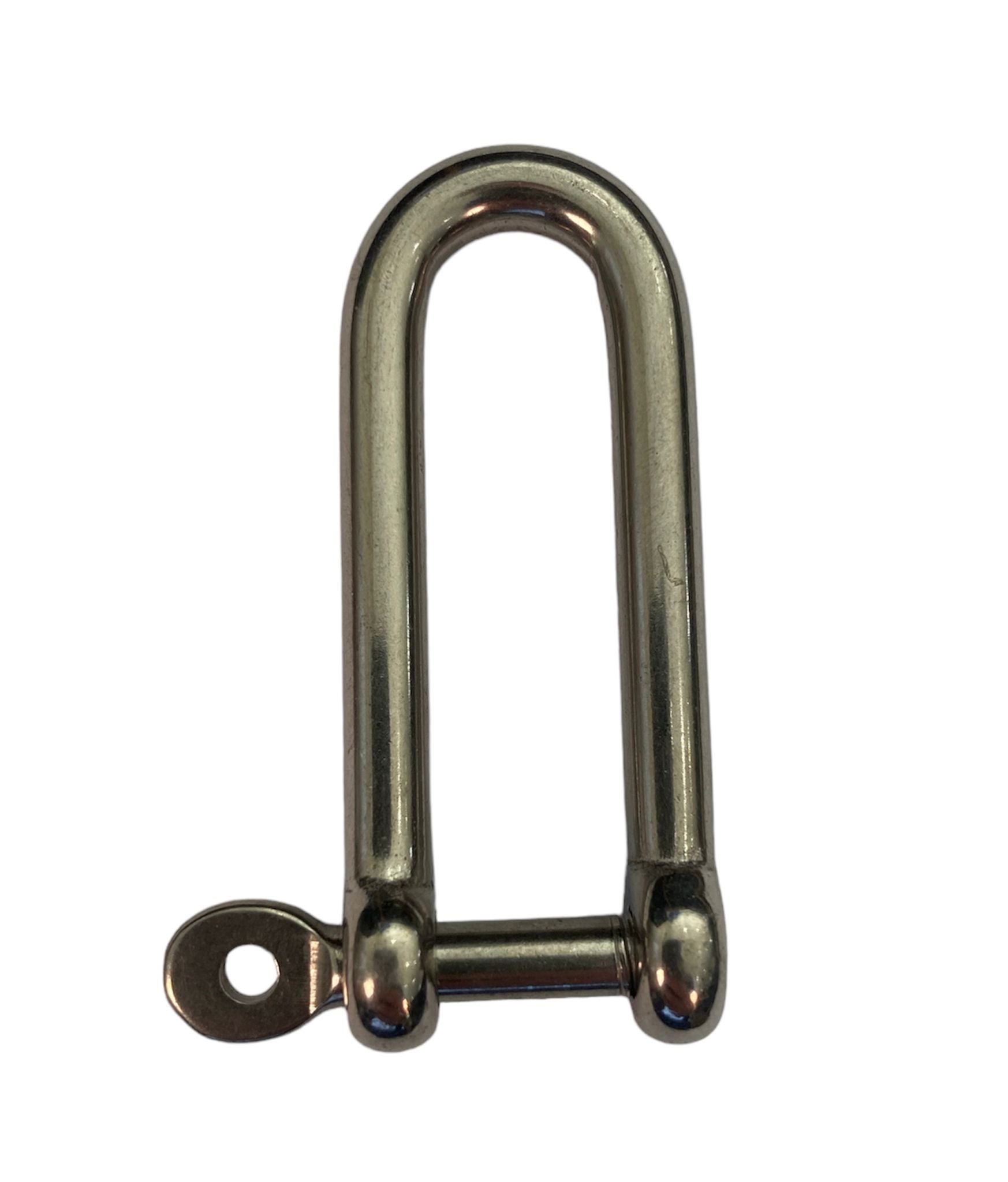

Stainless Steel Captive Pin Long Dee Shackle

Material - Stainless Steel
Grade - AISI 316
Finish - Polished

SKU	D	d	L	W	M.B.L (kN)
166-16-27	4mm	4mm	32mm	8mm	5.8
166-16-28	5mm	5mm	40m	10mm	9.1
166-16-29	6mm	6mm	48mm	12mm	13.2
166-16-30	8mm	8mm	64mm	16mm	23.7
166-16-31	10mm	10mm	80mm	20mm	37.3
166-16-32	12mm	12mm	96mm	24mm	54.9

Please Note - Stainless Steel Captive Pin Long Dee are commercial product i.e. untested so we are unable to issue a Declaration Of Conformity the KN is for advise purposes only
