Gebuwin

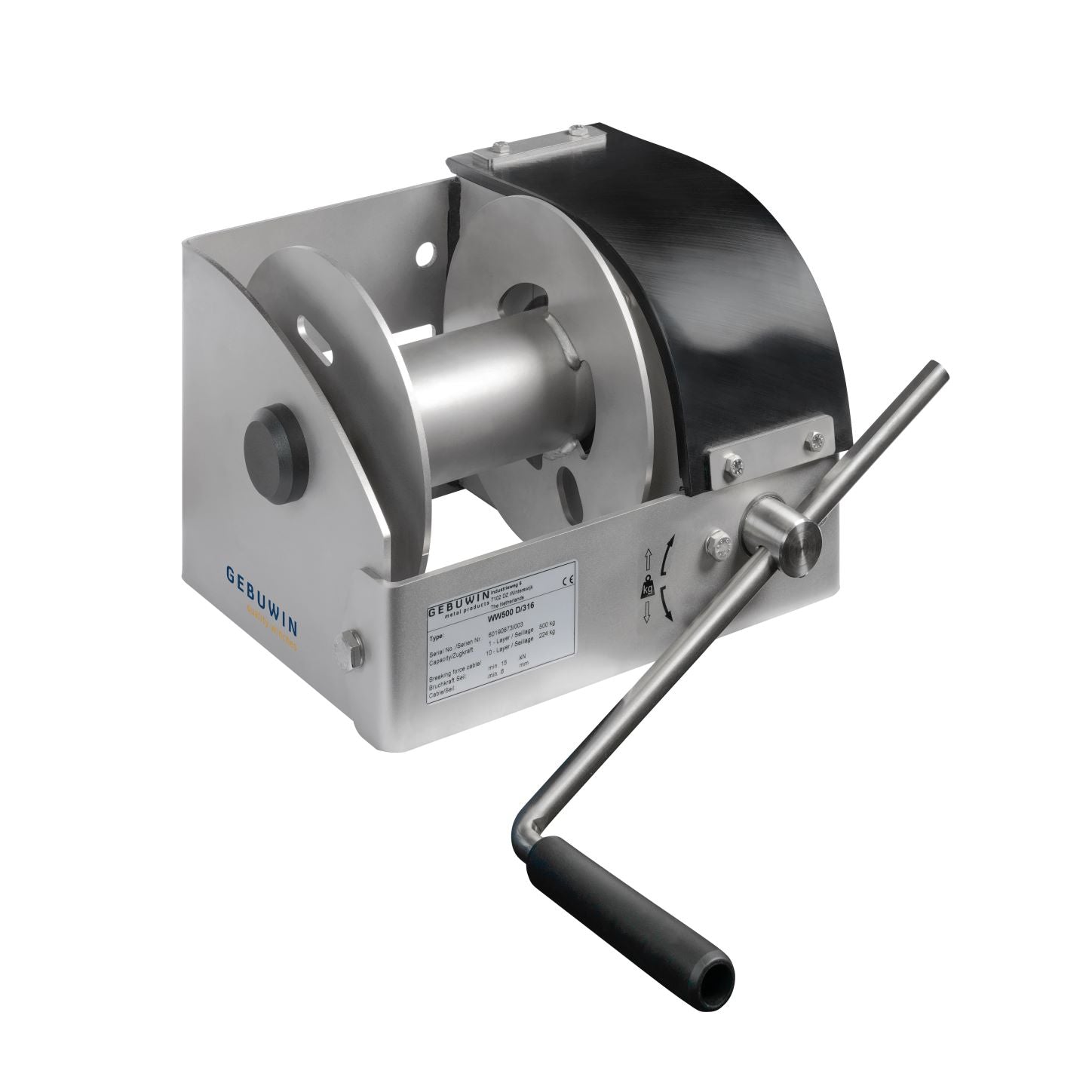

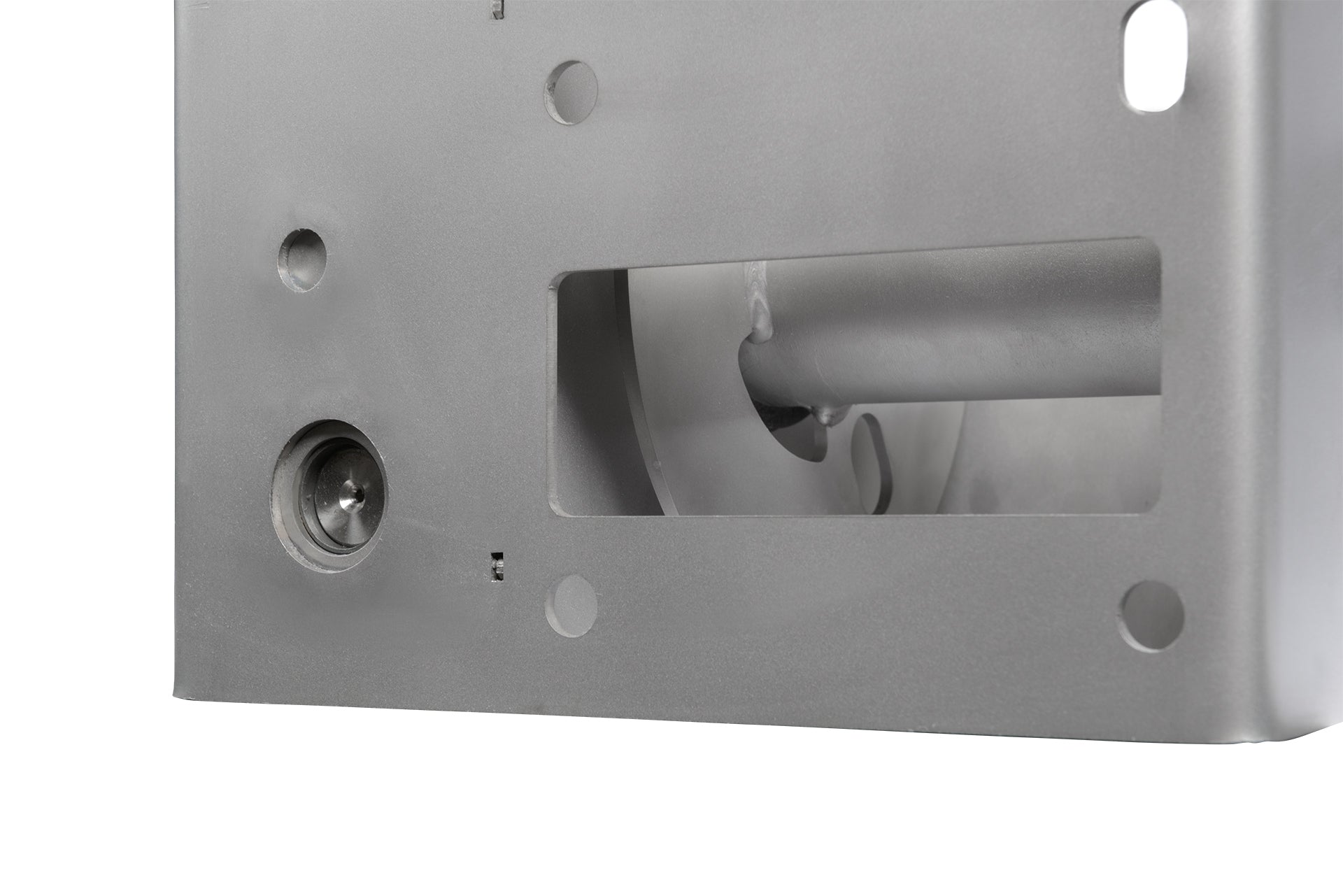

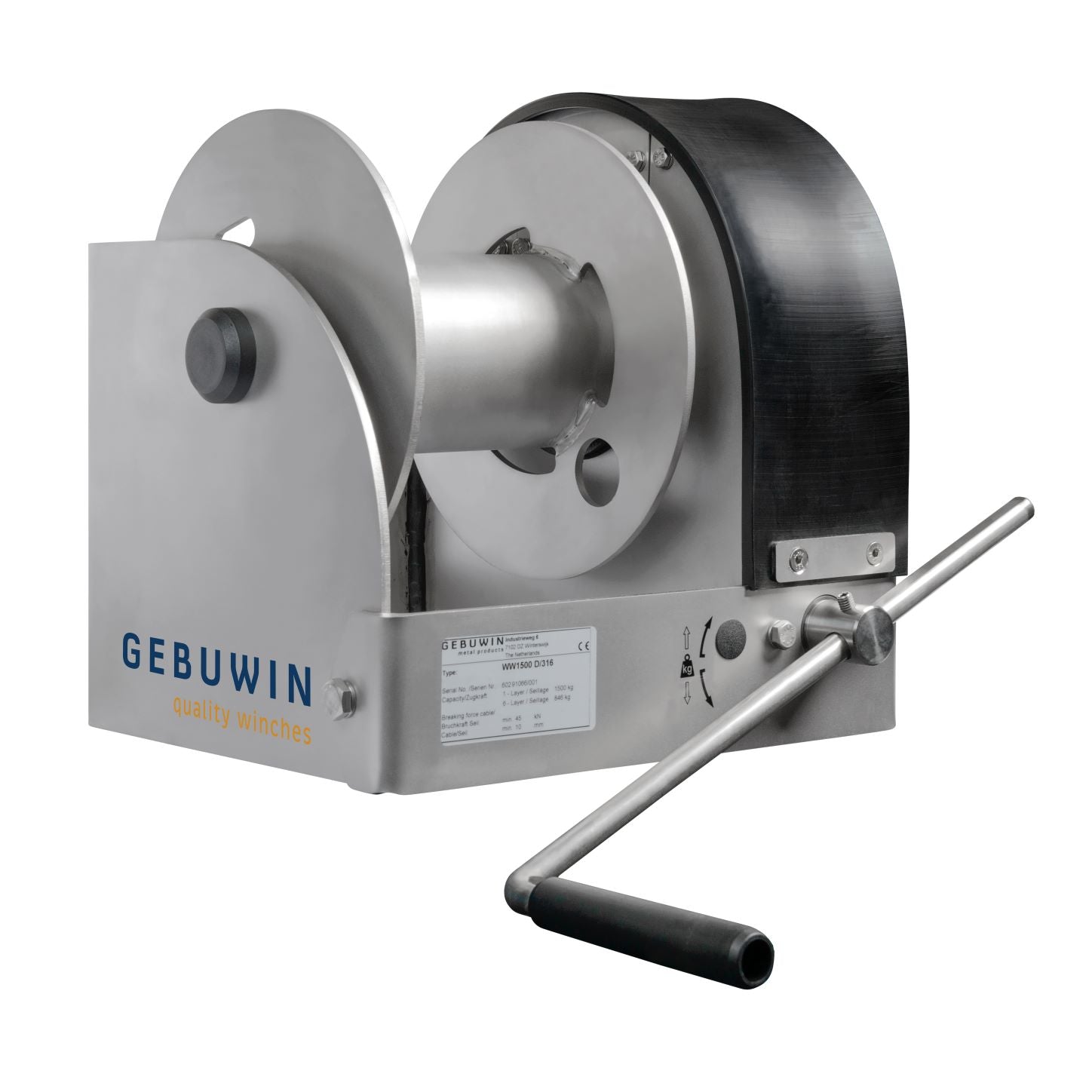

Stainless Steel Worm Gear Hand Winch 500kg (MR500 SST316)

Stainless Steel Worm Gear Hand Winch 500kg (MR500 SST316)

SKU: 156-30-1

Read More
Regular price £1,200.00
Regular price RRP Sale price TODAY'S PRICE £1,200.00

In stock (1)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

The name of this winch indicates that it belongs to the robust winches which are often used in the environment of salt water, such as the marine and offshore industry.

This stainless steel winch, with its IP54 standard, is resistant to splashing water and dust on the inside.

The winch is constructed mainly of stainless steel 316 (body, drum, crank and all outgoing parts), which gives it a robust appearance. The winch is therefore certainly resistant to the toughest conditions and has a very high corrosion resistance rating.

Note: Whilst we generally stock the Single Drum Model, the Twin Drum and ATEX models are not a stocked item in the UK, so lead-time from order point is approx. 3 to 4 weeks but would be confirmed on order. Please email your enquiry for these models to sales@rigginguk.co.uk

Spec

  • Robust and safe lifting and pulling winch in compliance with EN13157, DIN 15020
  • Static safety factor 4:1
  • Two lifting speeds (3t and 5t only)
  • Right angled, easy to grease worm transmission and maintenance free bearings
  • Load pressure brake with double ratchet system for safe stable hold of the load
  • Closed gearbox to protect against environmental influence – protection classification IP54
  • Cable outlet upwards, downwards or at rear

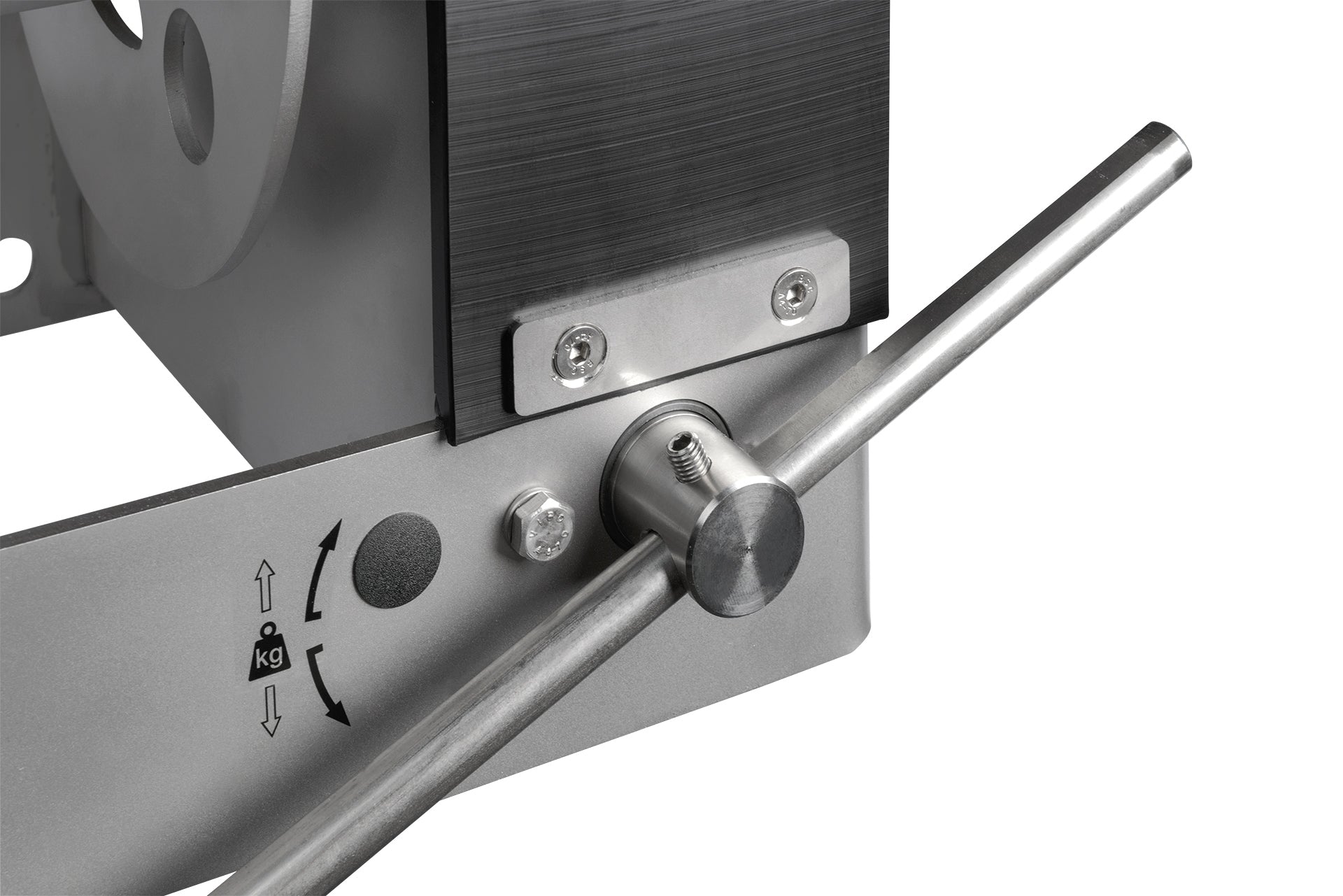

  • Adjustable crank, with ergonomic grip
  • Suitable for wall and floor mounting
  • Large rope capacity
  • Simple and quick attachment
  • Full stainless steel 316 body, drum, crank and all outgoing parts
  • Corrosion resistant

Tech Area

Capacity 1st layer

500 kg

Capacity 4th layer

326 kg

Capacity top layer

242 kg

Rope diameter-Ø

8 mm

Rope storage 1st layer

3,2 meter

Rope storage 4th layer

18,5 meter

Rope storage top layer

40,2 meter

Lift per crank rotation

20 mm

Crank effort at full load

10 daN

Weight (without rope)

16 kg

Cable JacksData sheet
