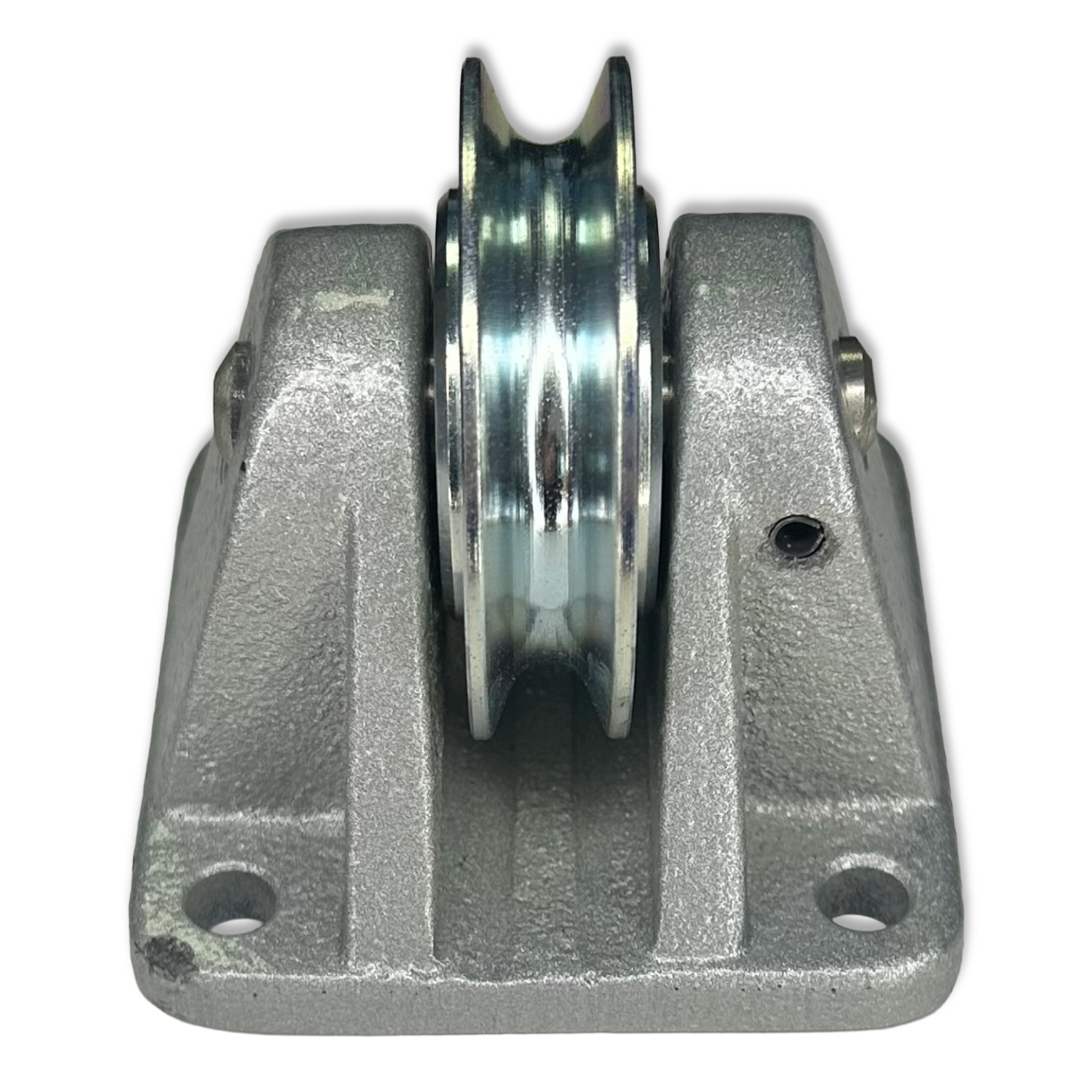

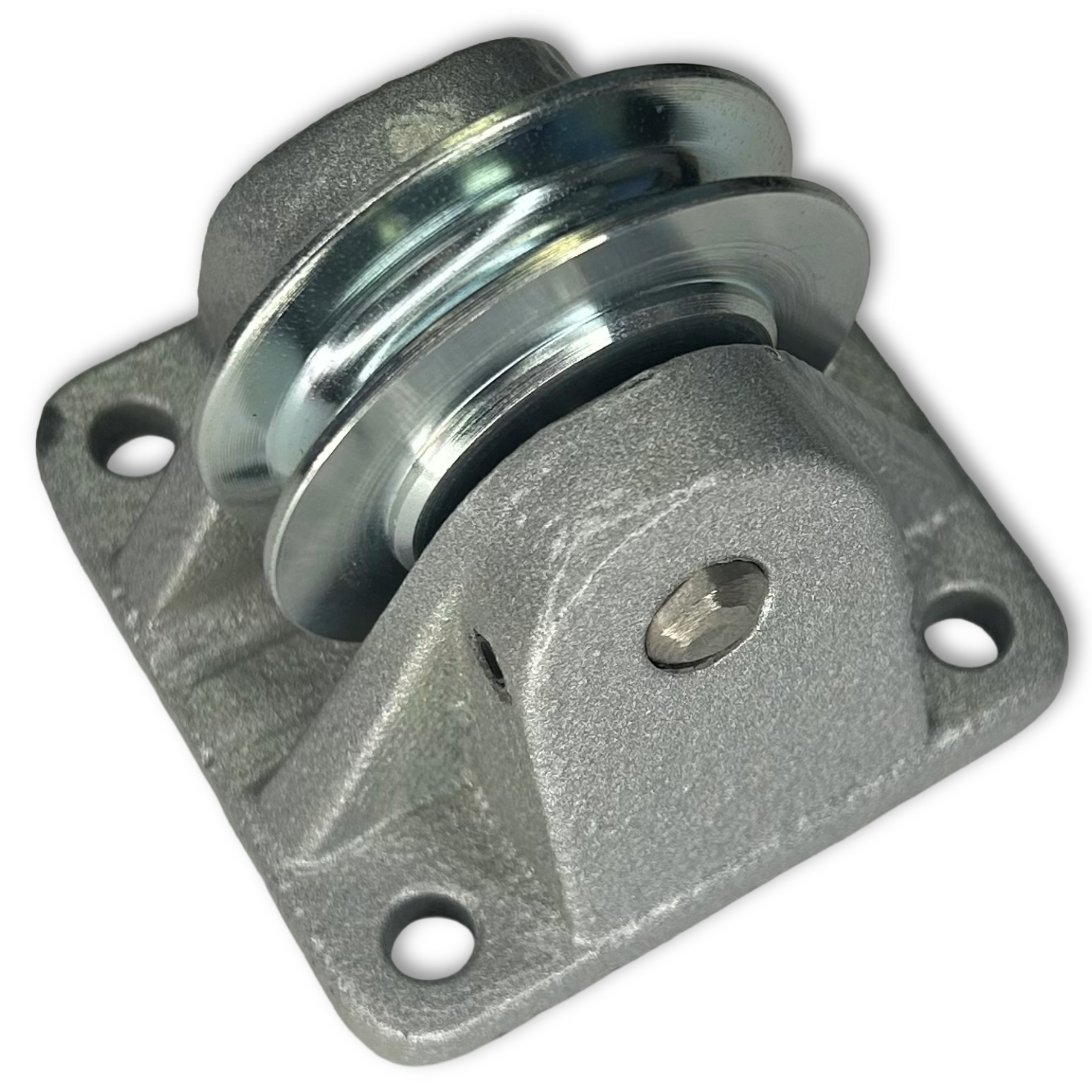

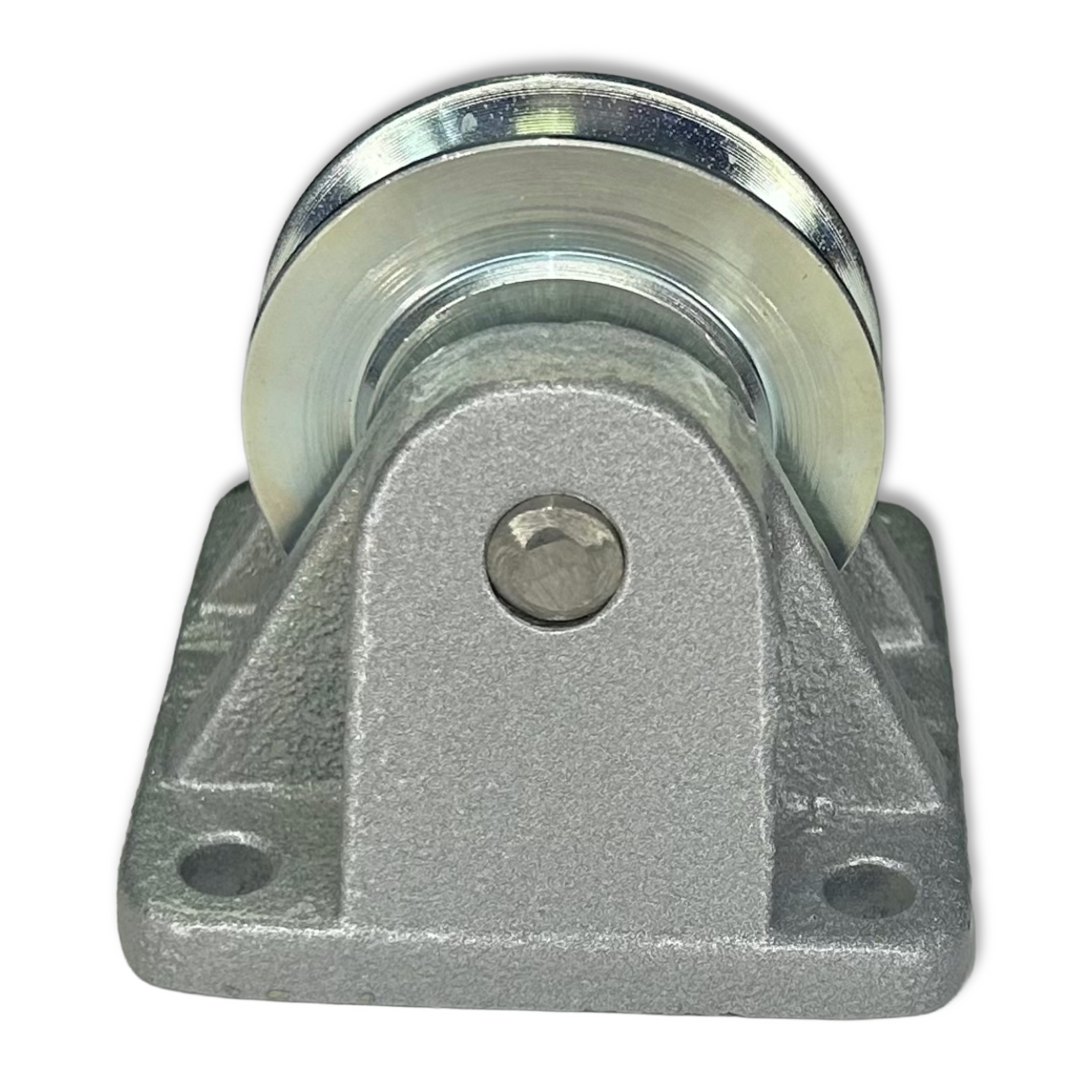

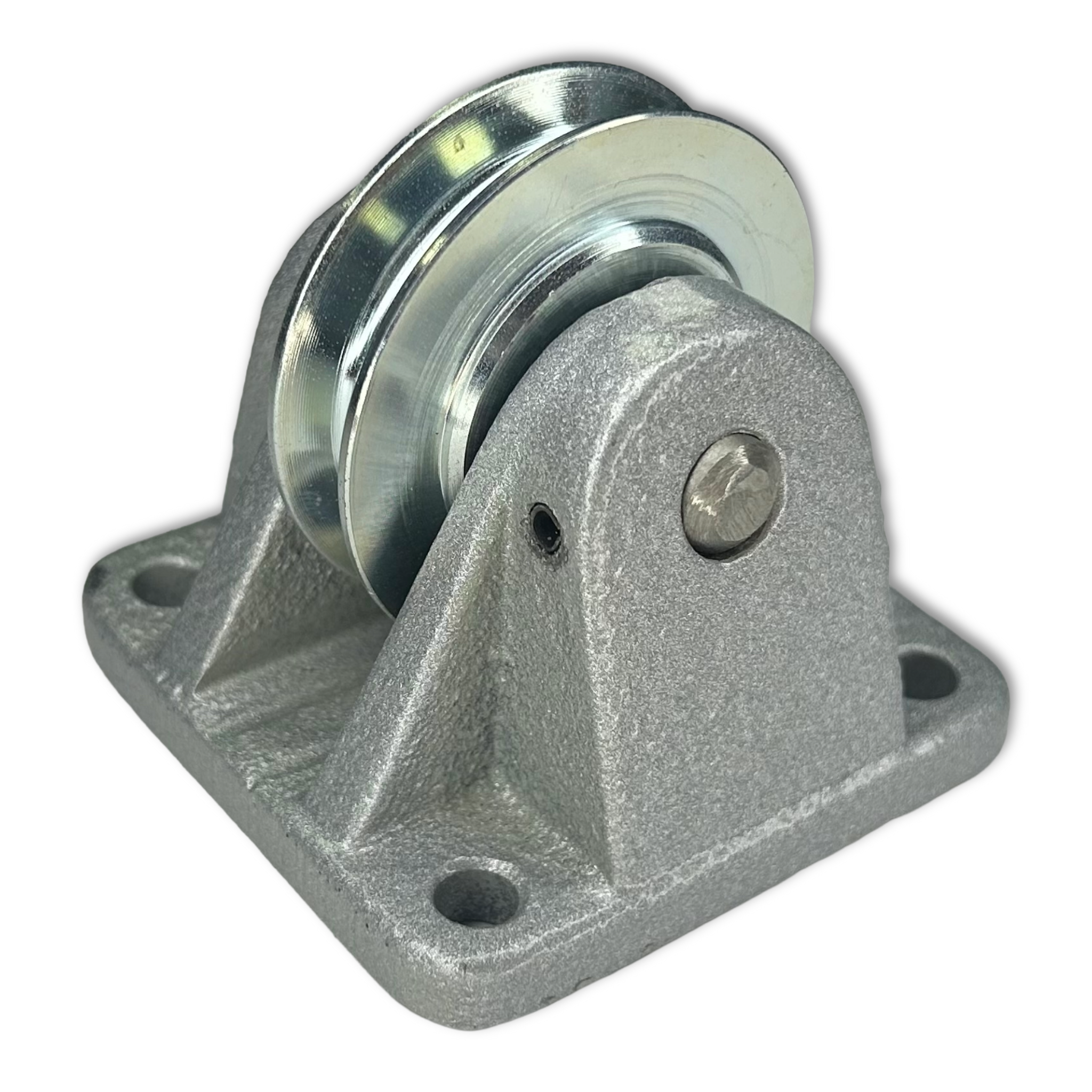

Steel Wire Rope Pulley with Cast Iron Fixed Roller (Model No. 164)

The ORPTECH Steel Wire Rope Pulley with Bracket (Model No. 164) is a robust and dependable fixed roller designed for wire rope guidance in lifting, hoisting, and industrial applications.

Built for durability, this unit features a steel sheave combined with a cast iron roller block bracket, providing excellent strength and stability in demanding environments. It is fitted with steel sheaves (Model No. 163), designed for consistent performance and long service life.

The sheaves are equipped with maintenance-free plain bearings, ensuring smooth operation with minimal servicing requirements. For applications requiring enhanced efficiency and reduced friction, sealed groove ball bearing versions are available on request, please contact our sales team for a bespoke quotation.

Engineered for reliability, the Model No. 164 pulley is ideal for use in a wide range of mechanical handling and wire rope systems, where consistent performance and durability are essential.

Key Features

• Fixed roller pulley with heavy-duty bracket
• Cast iron roller block for added strength and durability
• Fitted with steel sheaves (Model No. 163)
• Maintenance-free plain bearing for low maintenance operation
• Optional sealed groove ball bearing upgrade available
• Suitable for wire rope guidance, lifting, and hoisting systems
• Designed for industrial and mechanical applications
