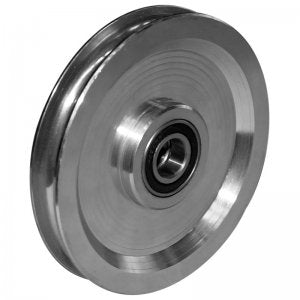

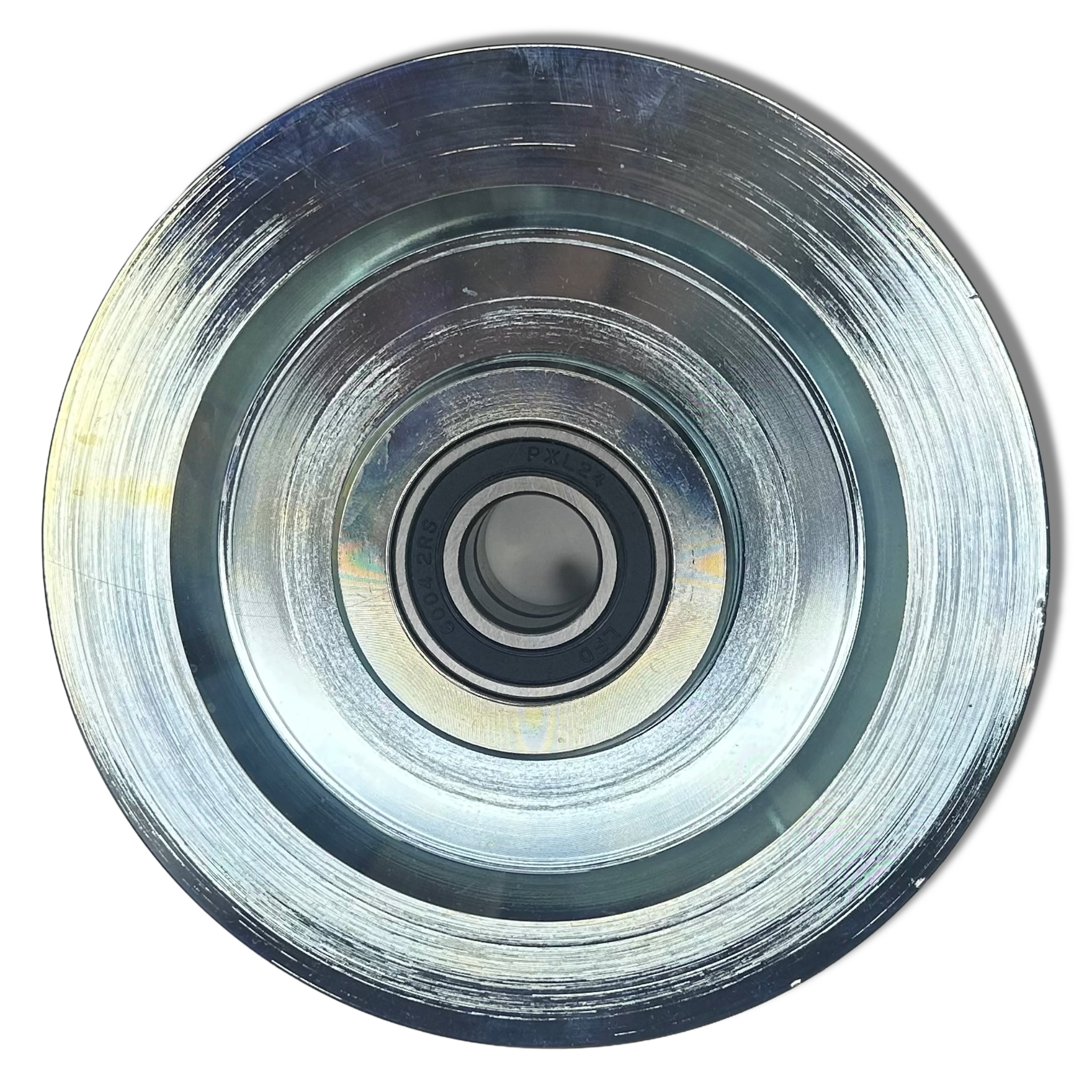

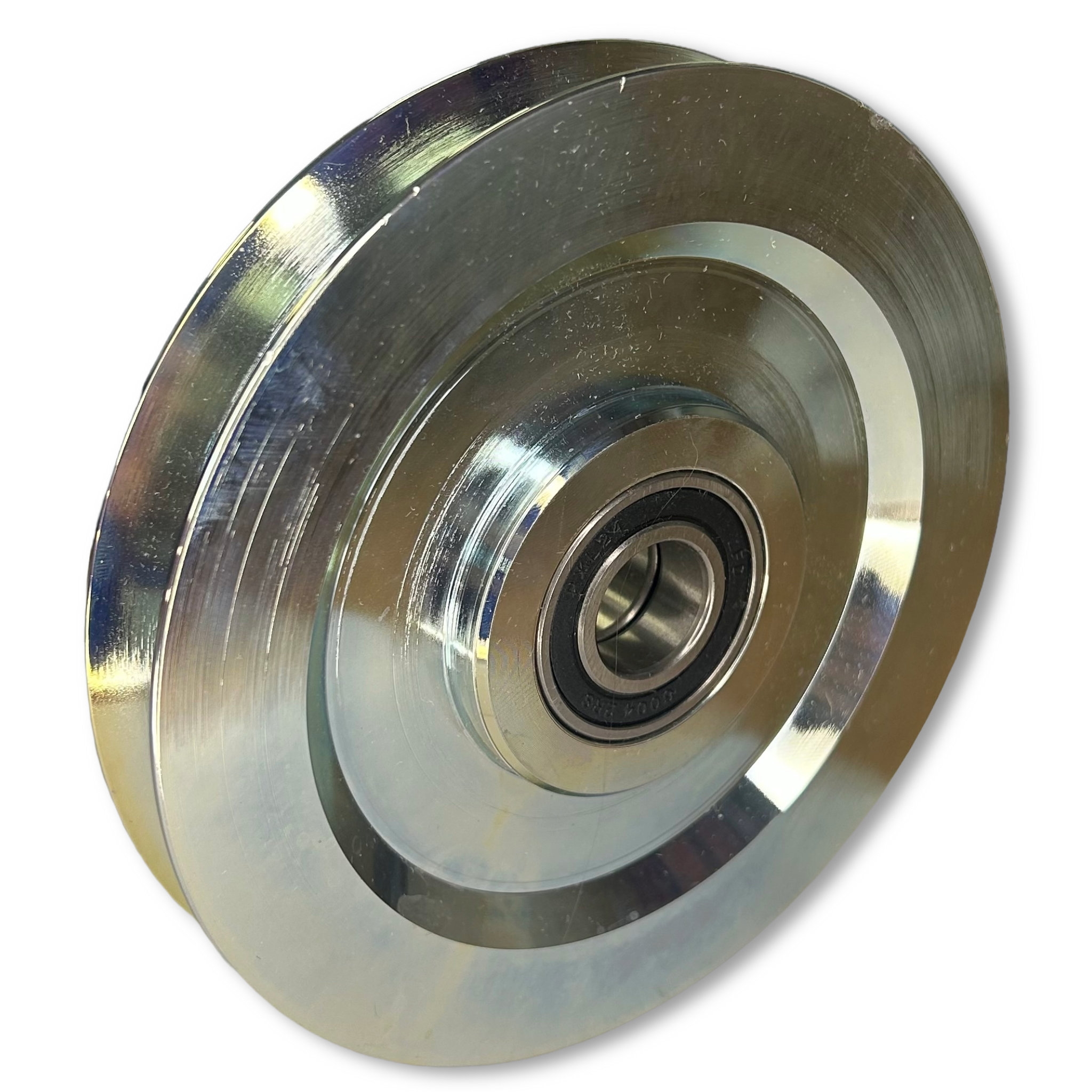

Steel Rope Pulleys with Sealed Ball Bearings (Model No. 163K)
Zinc-plated steel rope pulleys with turned groove machining and sealed ball bearings, ensuring durability and smooth operation.
Specifications:
-
Pulley Capacity: 100 kg to 4000 kg
-
Pulley Diameter: 50 mm to 300 mm
-
Material: Zinc-plated steel sheaves
Lead Times (if not in stock):
- Diameters up to 150 mm: Approximately 3 to 4 weeks from order date
- Diameters 200 mm and above: Approximately 12 weeks from order date
Note: For a formal quotation, please email sales@sales@rigginguk.co.uk
These pulleys are designed for robust performance in various applications, offering a wide range of capacities and diameters to meet diverse needs.

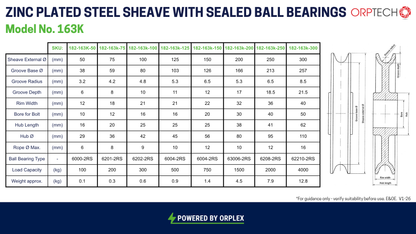

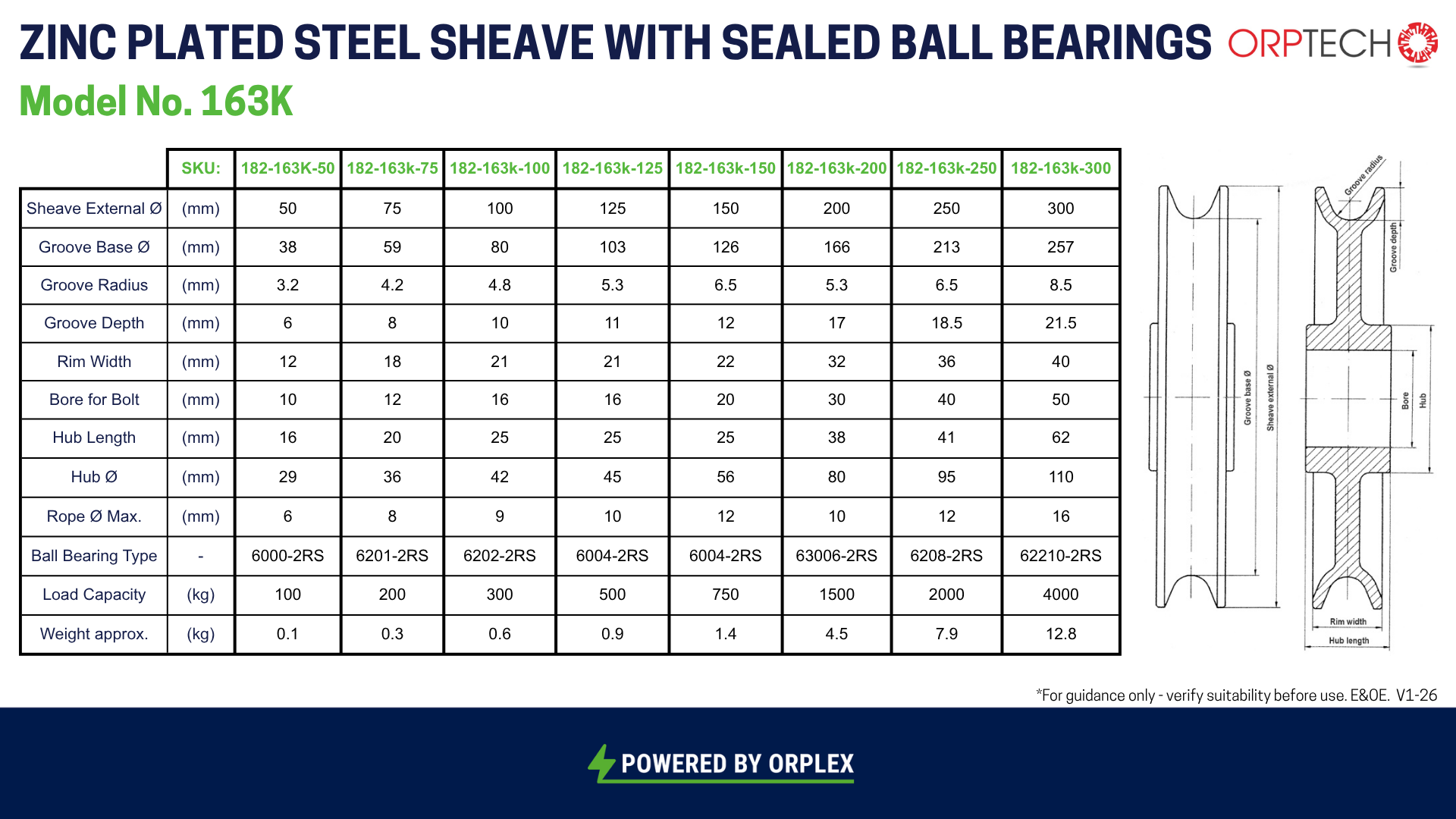

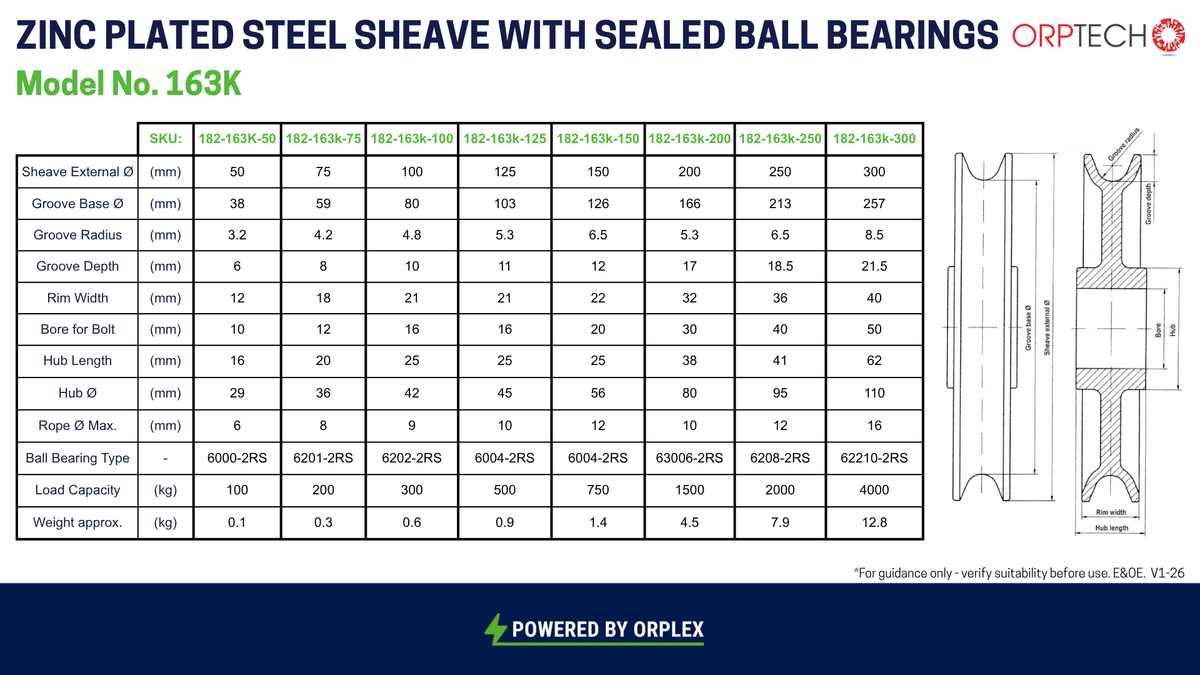

Spec
SKU |
|
182-163K-50 |
182-163k-75 |
182-163k-100 |
182-163k-125 |
182-163k-150 |
182-163k-200 |
182-163k-250 |
182-163k-300 |

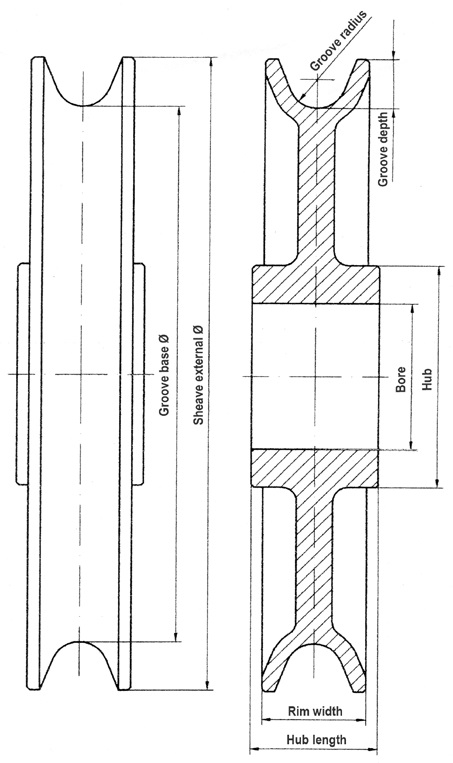

Sheave External Ø |
mm |
50 |
75 |
100 |
125 |
150 |
200 |
250 |
300 |
Groove Base Ø |
mm |
38 |
59 |
80 |
103 |
126 |
166 |
213 |
257 |
Groove Radius |
mm |
3.2 |
4.2 |
4.8 |
5.3 |
6.5 |
5.3 |
6.5 |
8.5 |
Groove Depth |
mm |
6 |
8 |
10 |
11 |
12 |
17 |
18.5 |
21.5 |
Rim Width |
mm |
12 |
18 |
21 |
21 |
22 |
32 |
36 |
40 |
Bore for Bolt |
mm |
10 |
12 |
16 |
16 |
20 |
30 |
40 |
50 |
Hub Length |
mm |
16 |
20 |
25 |
25 |
25 |
38 |
41 |
62 |
Hub Ø |
mm |
29 |
36 |
42 |
45 |
56 |
80 |
95 |
110 |
Rope Ø Max. |
mm |
6 |
8 |
9 |
10 |
12 |
10 |
12 |
16 |
Ball Bearing Type |
|
6000-2RS |
6201-2RS |
6202-2RS |
6004-2RS |
6004-2RS |
63006-2RS |
6208-2RS |
62210-2RS |
Load Capacity (in kg. |
kg |
100 |
200 |
300 |
500 |
750 |
1500 |
2000 |
4000 |
Weight (in kg) approx. |
kg |
0.1 |
0.3 |
0.6 |
0.9 |
1.4 |
4.5 |
7.9 |
12.8 |
