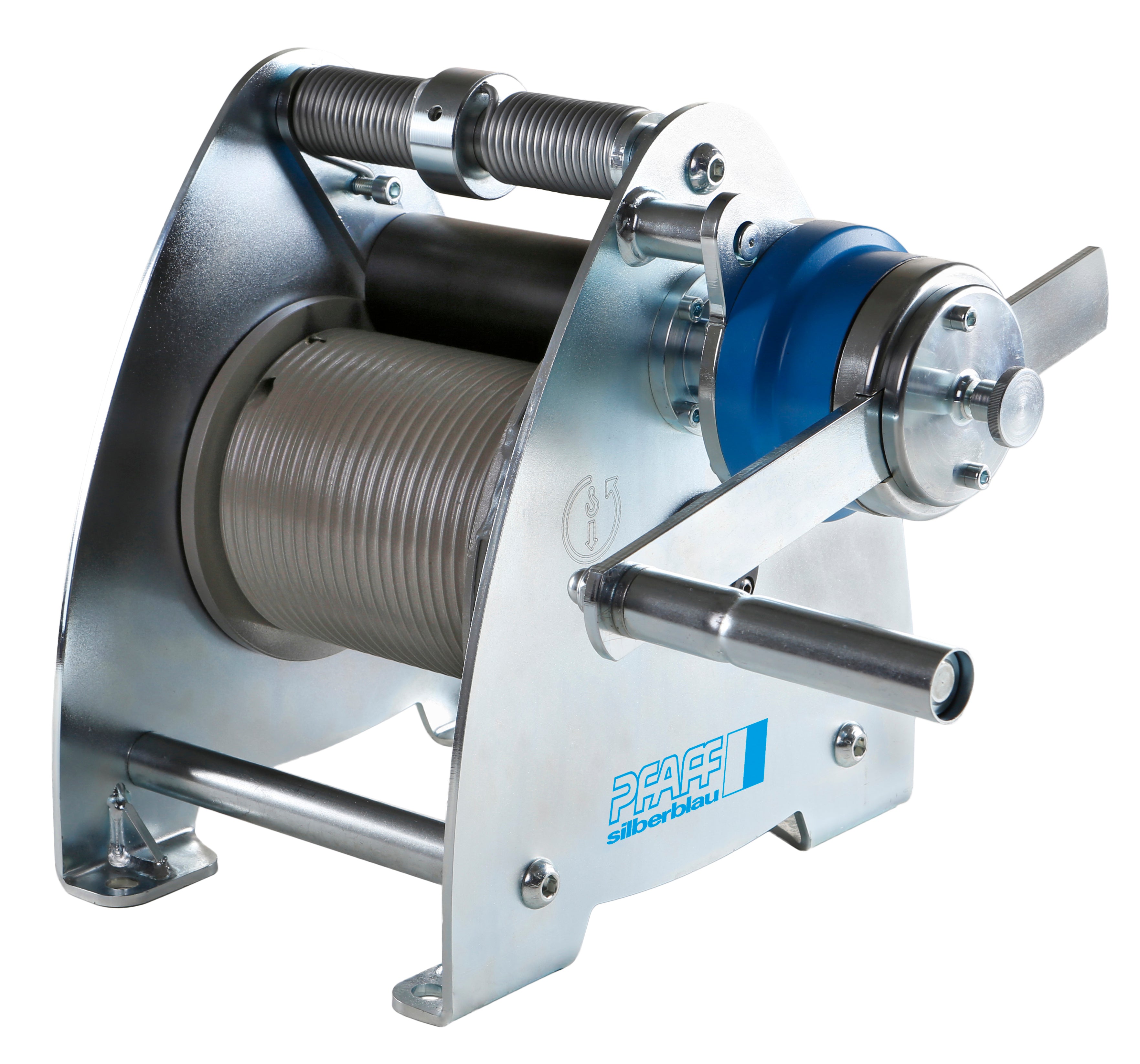

The Pfaff SW-K Lambda BGVC1 wire rope winch is designed for precision lifting and load-holding applications. Engineered with a grooved drum for single-layer winding, it offers extended wire rope service life with an 18:1 ratio between drum and rope diameter. The safety spring double brake system ensures automatic load-holding at any position, making it ideal for demanding environments.
Recommended Wire Rope: DIN 3060 FE-znk 1770 sZ-spa
Note: All Pfaff winches are supplied without wire rope unless requested.
Key Features
Generally supplied 15 working days after order, for a detailed quotation please email sales@rigginguk.co.uk
Optional Accessories

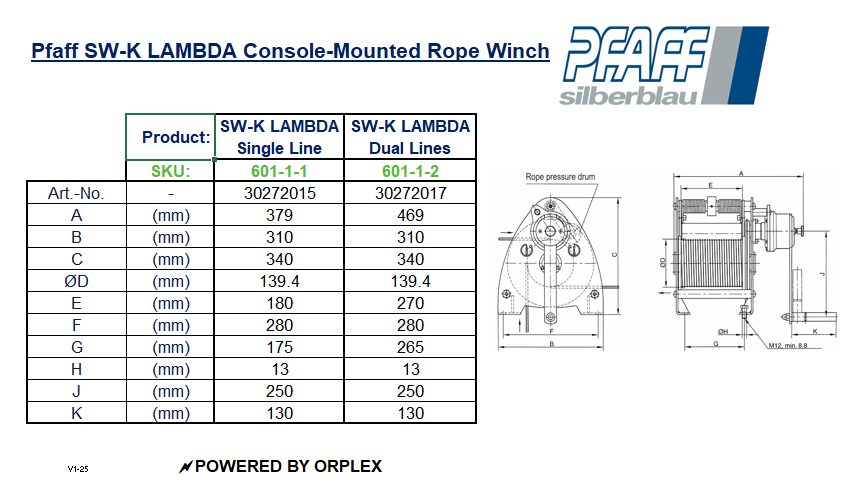

Dimensions
| Dimension | 10M Version (mm) |
| A | 379 |
| B | 310 |
| C | 340 |
| D | 133.4 |
| E | 180 |
| F | 280 |
| G | 175 |
| H | 13 |
| J | 250 |
| K | 130 |

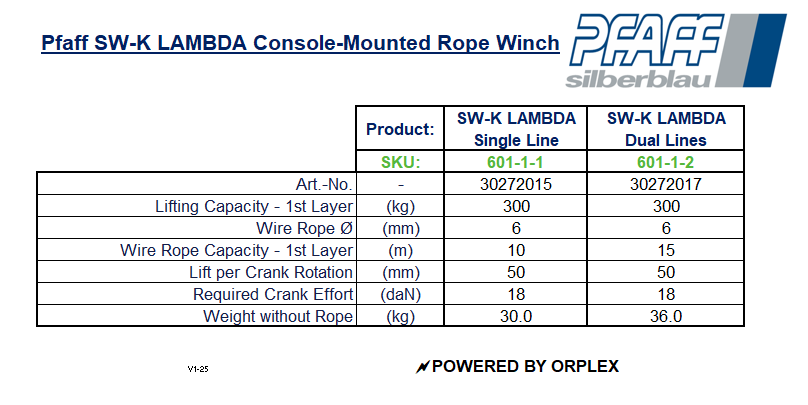

Winch Specifications
| Type | Pfaff Lambda BGV C1 Wire Rope Winch |
| Lifting Capacity (kg) | 300 |
| Max. Wire Rope Capacity (m) | 10 |
| Wire Rope Diameter (mm) | 6* |
| Lift per Crank Rotation (mm) | 50 |
| Weight (kgs) | 30 |
Safety Guidelines:
Operation, installation, and maintenance must be performed by qualified personnel.
Regular inspections are mandatory:
Daily checks: Brake function, rope condition, load attachment, and support structure.
Annual UVV inspection by a certified expert.
Comprehensive inspection at least every 4 years or after modifications.
Prohibited Actions:
Never leave a load hanging unsecured.
Do not allow the rope to swing or drop freely.
Rope Guidelines:
Must be wound in a single layer on the grooved drum.
Minimum 3 full windings must remain on the drum when fully extended.
Regularly inspect according to DIN 15020 standards.
